187mm Assembly Aid Horizontal And Vertical, BT-#40x2 Adapter Holder - Vertex
€486.01
Product information "187mm Assembly Aid Horizontal And Vertical, BT-#40x2 Adapter Holder - Vertex"
Benefit from the combination of BT-40 compatibility and a compact, stable base to speed up assembly tasks in both horizontal and vertical setups; the robust footprint and precise taper interface support reliable machine integration. Order the assembly aid directly via Metav Werkzeuge or ask our consultants if needed.

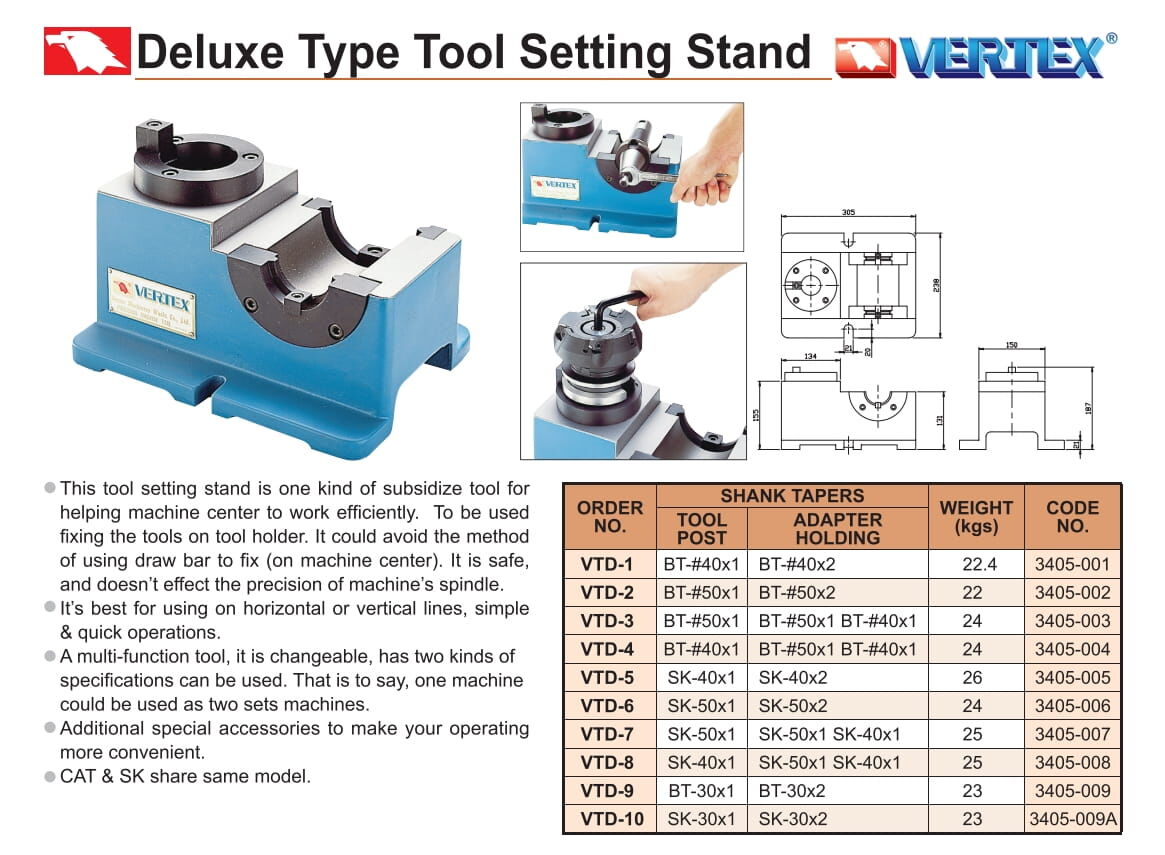

VTD-1 Assembly Aid by Vertex — BT-40 Compatibility, Horizontal & Vertical Mounting
The VTD-1 is an assembly aid for horizontal and vertical mounting, designed to integrate with BT-40 tooling and to support precise positioning tasks in workshop and machine-tool environments.
- BT-40 compatibility for fast integration
- Supports horizontal and vertical mounting
- Stable base 238 x 305 mm footprint
- Solid construction, weight 22.4 kg
Faster set-ups through dual-orientation support
The assembly aid enables both horizontal and vertical operation, reducing the need for multiple fixtures and shortening changeover times in mixed production runs. By allowing orientation changes without replacing the support, the unit simplifies workflow sequencing and minimises handling steps, which benefits production environments that require frequent repositioning or staged assembly. The design focuses on operational efficiency and repeatability rather than decorative aspects.
Compact footprint with robust stability for secure positioning
A stable base of 238 x 305 mm and a nominal height of 187 mm deliver a compact but sturdy platform that fits bench space or machine tables where space is at a premium. The overall weight of 22.4 kg contributes to low susceptibility to movement during alignment tasks, providing a dependable support for positioning operations. Clear dimensional data helps planners assess integration without ambiguity and supports ergonomic placement on shop floors.
Seamless integration with BT-40 spindles and adapter holder
The taper interface is configured for BT-40 tooling and includes an adapter holder arrangement for straightforward connection to compatible toolholders. This standard interface ensures the unit aligns with common spindle and holder systems, enabling straightforward transfer of tools and fixtures between machines and the aid. The mechanical simplicity of the taper connection supports repeatable seating and rapid reconfiguration, which is advantageous for shops seeking consistent alignment and reduced set-up times.
Contact Metav Werkzeuge in Emmerich for tailored advice on Vertex BT-40 assembly aids and to arrange procurement or technical consultation
Technical Data
- Article number: VTD-1
- GTIN: 4061905084904
- ECLASS: 21029203
Facts
- Height: 187 mm

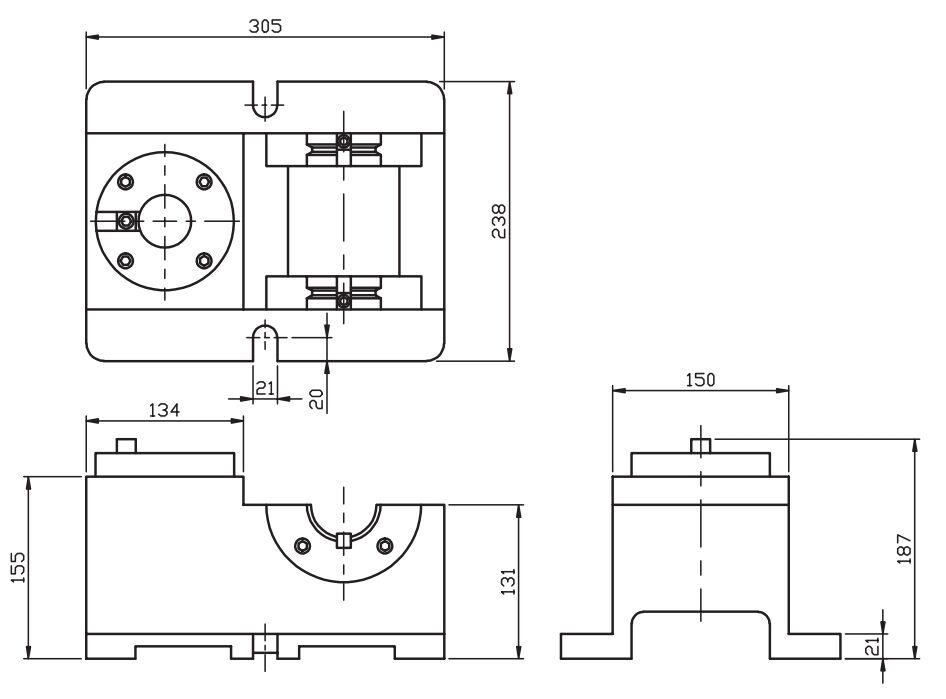

- Foot: 238 x 305 mm
- Weight: 22.4 kg
- Taper: BT-40x2 (adapter holder)
Special features
- Horizontal and vertical mounting
- BT-40 compatibility
- Assembly aid
- Manufacturer: Vertex
FAQ
Is the unit suitable for both horizontal and vertical assembly tasks?
Yes. The VTD-1 is designed for both horizontal and vertical use, allowing flexible orientation without the need for multiple fixtures.
Which taper standard does the assembly aid use?
The assembly aid uses a BT-40 interface with an adapter holder, making it compatible with standard BT-40 toolholders.
What are the main dimensions and weight of the device?
The VTD-1 has a foot of 238 x 305 mm, a height of 187 mm and a weight of 22.4 kg.
Can the device be integrated with CNC machines that use BT-40 tooling?
Yes. The VTD-1’s BT-40 taper and adapter holder permit integration with machines and tooling systems that conform to the BT-40 standard.
What is the SKU and GTIN for ordering and inventory purposes?
SKU VTD-1, GTIN 4061905084904 are provided for procurement and inventory tracking.
Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
