154x176mm Swivel Light-Duty Clamping Table, 105mm Height - Vertex

Compact measuring surface, swivel function and a robust 14 kg construction combine to provide stable, precise workholding for light-duty tasks; order the clamping table directly via Metav Werkzeuge or ask our consultants if needed.

Vertex VU-1517 clamping table – Swivel design for light loads

The Vertex VU-1517 clamping table is a swivel table designed for light-duty workholding and inspection tasks, offering a compact measuring surface and stable positioning for benches and inspection rigs.

• Swivel table for light-duty clamping
• Measuring surface 154 x 176 mm
• Base footprint 180 x 228 mm
• Robust 14 kg construction

Faster precision for small parts and inspection workflows

The swivel design places a measuring surface and workpiece in the desired orientation without repeated reclamping, reducing set-up time in inspection and light machining tasks. With a measuring table of 154 x 176 mm, the unit is aimed at small components and gauges where accurate alignment matters; the clear dimensions simplify fixture planning and help integrate the table into existing test jigs. The compact platform enables fine positional adjustments while the stable build reduces vibration and micro-movement during tactile measurement or light finishing operations.

Compact footprint that fits the workshop bench

A base dimension of 180 x 228 mm provides a small footprint while retaining stable support for repeatable measurements. The overall height of 105 mm and a mass of 14 kg give the table sufficient inertia for steady clamping without dominating the bench workspace. This combination makes the unit suitable for benches, measuring stands and small assembly stations where space is limited but precision must be maintained. Clear numerical values allow planners to assess compatibility with fixtures and gauges before installation.

Swivel function that speeds up set-up and inspection

The swivel mechanism allows the clamping surface to be rotated to the ideal angle quickly, which improves workflow efficiency by minimising reclamping and repositioning. For tasks such as visual inspection, marking or light deburring, the ability to orient the component accurately shortens cycle times and reduces handling errors. The straightforward mechanical concept supports reliable repeatability in light-duty applications, making it an effective addition to quality-control stations and precision workshop layouts.

For reliable light-duty clamping and quick orientation, choose the Vertex VU-1517 from Metav Werkzeuge; contact our specialists at info@metav-werkzeuge.com or call +49 2822 7131930 to confirm suitability and arrange delivery from Emmerich.

Technical data

• Article number: VU-1517
• GTIN: 4061905084812
• ECLASS: 21020702
• Manufacturer: Vertex

Dimensions & weight

• Weight: 14 kg
• Height: 105 mm
• Measuring surface: 154 x 176 mm
• Base footprint: 180 x 228 mm

Special features

• Swivel design for light loads
• Intended for workshop measuring and light clamping
• Stable construction for repeatable positioning

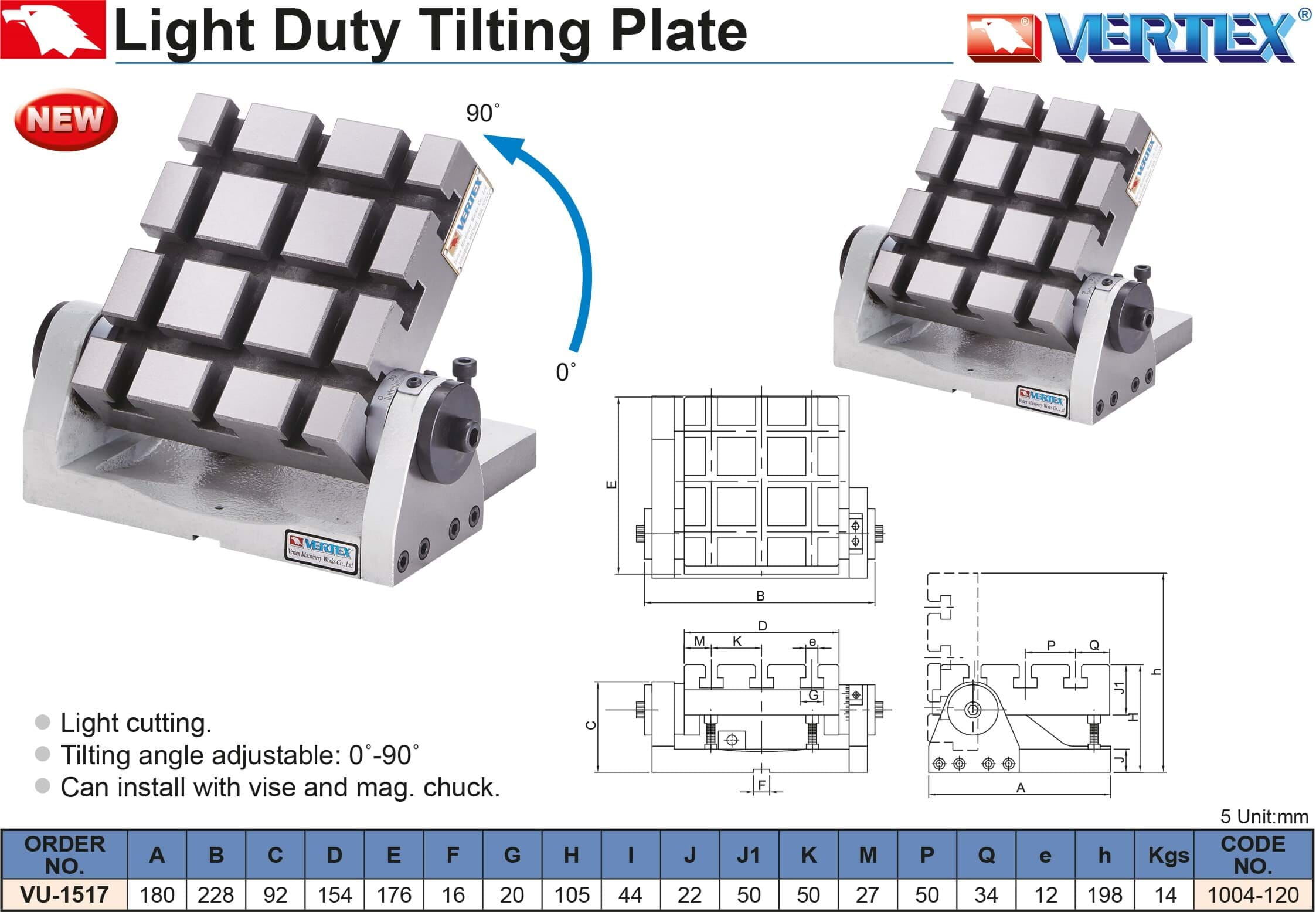

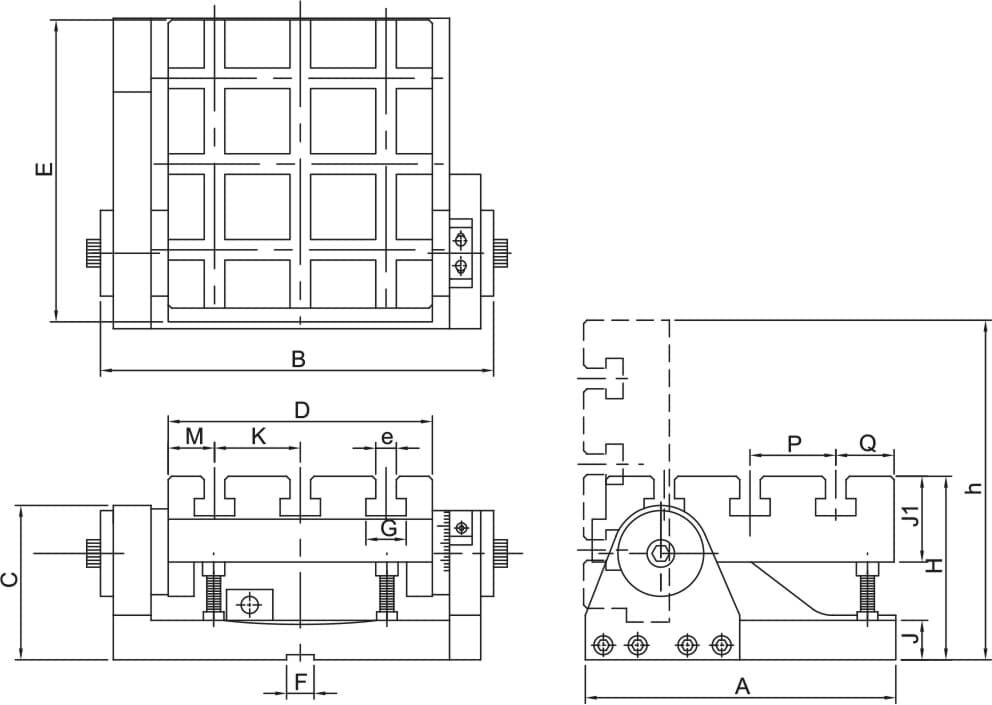

• Technical drawing and detail images available

FAQ

What is the intended application for this swivel table?
The Vertex VU-1517 clamping table is intended for light-duty workholding, inspection and precision measuring tasks where quick orientation and stable positioning are required.

What are the dimensions of the measuring surface?
The measuring surface measures 154 x 176 mm, providing a compact platform for small components and gauges.

How large is the base and how much does the table weigh?
The base footprint is 180 x 228 mm and the unit weighs 14 kg, offering a balance of compactness and stability for bench-mounted work.

Does the table allow rotation or indexing of the workpiece?
Yes, the swivel design enables rotation of the clamping surface to position the workpiece quickly for inspection or light processing.

Is the clamping table suitable for heavy machining?
The VU-1517 is designed for light loads and precise positioning; it is not intended for heavy machining or high cutting forces.

Are technical drawings available for integration into fixtures?
Technical drawings and detailed images are provided to assist with fixture planning and bench integration for the Vertex VU-1517 clamping table.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
