0-104mm Tilting Machine Vice Mechanical Quick Clamp, Cast Iron Body - Vertex

Combining quick-action operation, a tiltable clamping function and a cast-iron body, the VUT-4QS delivers reliable hold and reduced setup times for repetitive machining operations. Benefit from the stable clamping range and compact footprint to keep production flowing; order the machine vice directly via Metav Werkzeuge or consult Metav's advisors for application support.

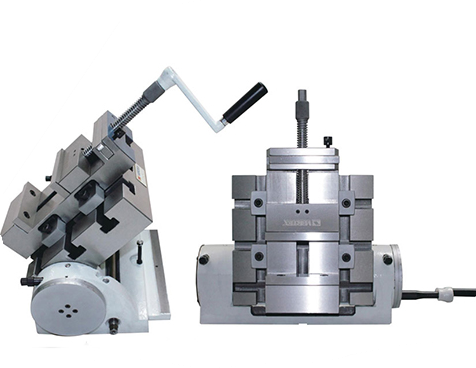

VUT-4QS machine vice — quick-action, tiltable (Vertex)

The VUT-4QS is a mechanical machine vice designed for robust workholding in milling and machining centre applications, offering fast setup and flexible angled positioning.

• Tiltable clamping for angled workpieces
• Quick-action mechanism for fast setups
• Cast-iron body for long-term stability
• Opening range 0–104 mm for varied parts

Reduce setup time with fast clamping and clear throughput gains

The VUT-4QS uses a quick-action mechanism that shortens clamping cycles and reduces non-productive time on the machine. A reliably repeatable closure across the clamping range 0–104 mm enables consistent part presentation, which in turn lowers rework rates and improves overall line efficiency. For batch production where fixture changes are frequent, the quick-action design supports faster changeovers and a measurable increase in output without sacrificing grip quality. The vice’s capability to secure small to medium-sized components makes it suitable for both toolrooms and production cells.

Stable hold and predictable accuracy through robust construction

Manufactured from cast iron, the vice body provides vibration damping and dimensional stability under load, which preserves cutting accuracy and extends service intervals. The substantial construction delivers excellent repeatability and resists deformation during heavy-duty cuts, maintaining part tolerances over long runs. Compact footprint with dimensions 397 x 266 x 227 mm and overall height 485 mm allows integration on most machine tables without impeding tool access. The combination of mass and geometry translates into a dependable platform for high-precision operations in metalworking environments.

Flexible positioning and adaptable versions for varied tasks

The tiltable design permits secure clamping at angles, expanding the range of feasible operations without custom fixturing. Available in Power or Quick versions, the vice adapts to different workflow priorities — higher clamping force where required or faster actuation for throughput-focused cells. As a versatile workholding device, it supports chamfering, face milling and angled slotting without repeated part re-fixturing, reducing cycle complexity. Metav’s product selection philosophy ensures that such fixtures are accessible to workshops seeking industrial-grade performance with straightforward procurement and technical guidance.

Contact Metav Werkzeuge for tailored application advice on the Vertex VUT-4QS machine vice — reach Metav by eMail at info@metav-werkzeuge.com or by phone on +49 2822 7131930 for guidance and local supply options

Technical data

• Article number: VUT-4QS
• GTIN: 4061905093456
• Manufacturer: Vertex
• eClass: 21020601
• ETIM: EC002173

Facts

• Dimensions: 397 x 266 x 227 mm
• Height: 485 mm
• Opening: 0–104 mm

Special features

• Material: Cast iron
• Type: Mechanical (Quick)
• Versions: Tiltable; Power or Quick
• Brand: Vertex

FAQ

What clamping range does the vice provide?
The vice offers a clamping range of 0–104 mm, allowing secure holding of a wide variety of part sizes.

Is the VUT-4QS suitable for use on CNC milling machines?
Yes, the VUT-4QS machine vice is designed for milling and machining centre applications and provides a stable workholding solution for CNC operations.

What are the construction materials and their benefits?
The vice body is made from cast iron, which provides vibration damping, dimensional stability and enhanced repeatability under load.

Can angled workpieces be clamped securely?
The tiltable feature enables secure clamping at angles, expanding the range of machining tasks without bespoke fixtures.

Which versions are available and how do they differ?
The VUT-4QS is offered in Power and Quick variants; the Power version emphasises clamping force, while the Quick version prioritises faster actuation for throughput.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
