0-220mm Tilting Milling Vise 1200 kgf Clamping Force, Cast Iron, 110x240x230mm - Vertex

Take advantage of the combination of robust clamping power, precise repeatability and a tilting function that reduces re‑fixturing time. Order the milling vice directly via Metav Werkzeuge or ask our consultants if additional specifications are required.

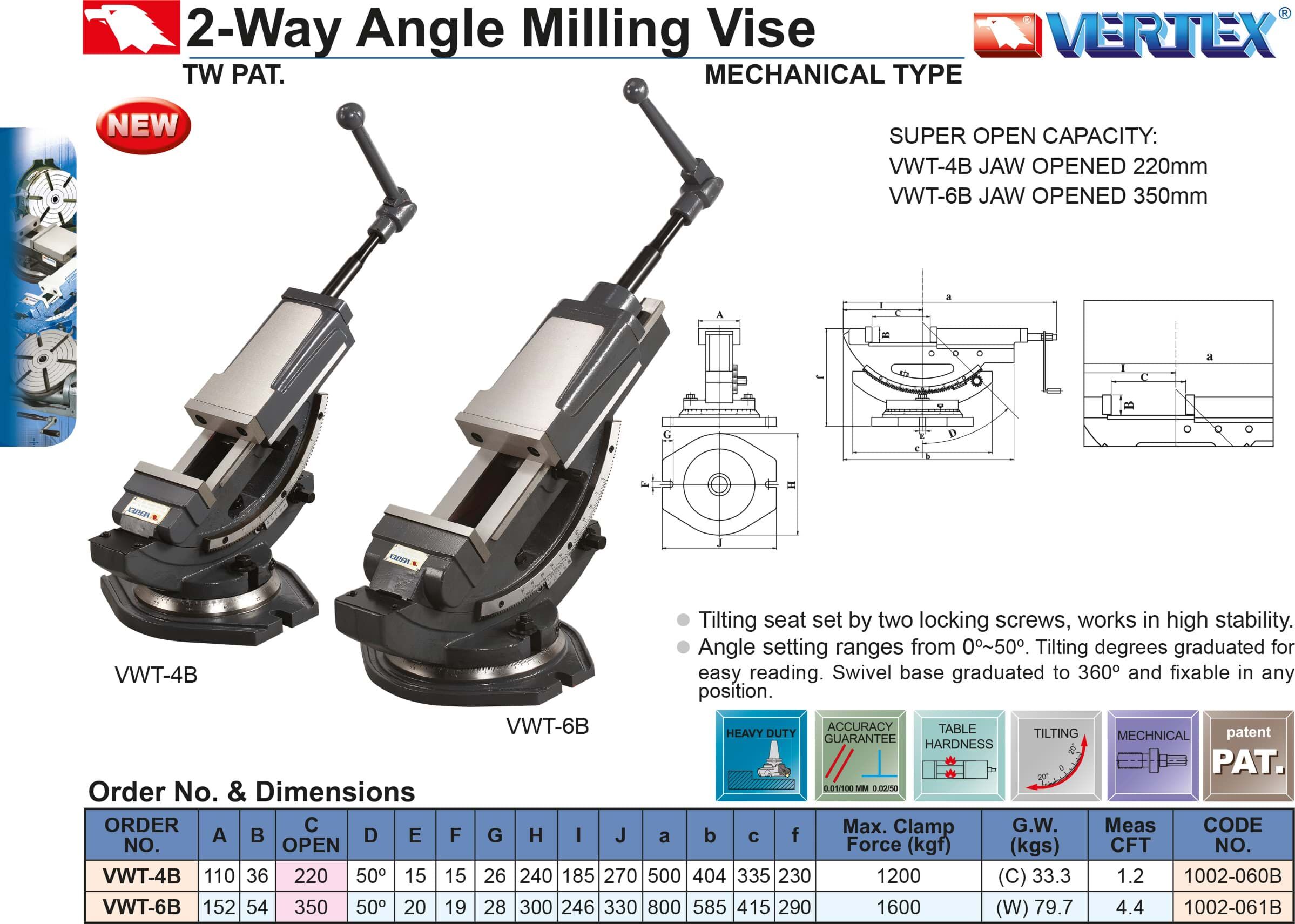

VWT-4B tilting milling vice with 0–220 mm opening (Vertex)

The VWT-4B is a tilting milling vice designed for secure, accurate clamping of workpieces in milling and machining applications, enabling angled set‑ups and repeatable positioning.

• Cast iron construction for high stability
• Tilting function for angled clamping
• 0–220 mm opening for versatile part sizes
• 1200 kgf clamping force for secure hold

Stable, repeatable clamping for precise machining

The vice’s cast iron body provides a stable foundation that reduces vibration and improves surface finish during machining. With a rated clamping force of 1200 kgf and an indicated accuracy of 0.01 mm, the unit supports tasks that demand consistent tolerances and repeatability. This combination minimises rework and downtime by maintaining part position under cutting loads, translating directly into higher first‑pass yield and predictable throughput.

Angle versatility that speeds complex set‑ups

The integrated tilting vice function allows secure angled clamping without complex fixtures, reducing the number of set‑ups required for multi‑face machining. Paired with a 0–220 mm opening, the device accommodates a broad range of component sizes, from small brackets to larger profiles, and supports angled machining operations that would otherwise need extra tooling. The result is shortened cycle times and fewer operator interventions for angled operations.

Built for production: robustness meets operational efficiency

Weighing 33.3 kg, the vice delivers mass where it matters: on the machine table, enhancing stability for heavy cuts and prolonged cycles. As a mechanical clamping solution, it offers straightforward operation and predictable behaviour under load, which is advantageous for repeat production runs. The robust construction also contributes to long service intervals, reducing maintenance effort and keeping machines productive across shifts.

Low‑maintenance design to protect uptime

Materials and geometry are selected to balance wear resistance with straightforward upkeep. The heavy‑duty housing and hardened sliding surfaces lower the frequency of adjustments, while the simple mechanical design keeps routine maintenance quick and manageable. For workshops aiming to standardise fixture stocks, this vice offers a dependable core clamping solution that simplifies inventory and reduces unexpected interruptions to production.

For tailored advice on integrating the Vertex VWT-4B tilting milling vice into production workflows, contact Metav Werkzeuge in Emmerich for consultancy or to place an order — email info@metav-werkzeuge.com or call +49 2822 7131930

Technical Data

• Article number: VWT-4B
• GTIN: 4061905083402
• eClass: 21020601
• ETIM: EC002173

Facts

• Opening: 0–220 mm
• Clamping force: 1200 kgf
• Accuracy: 0.01 mm
• Weight: 33.3 kg

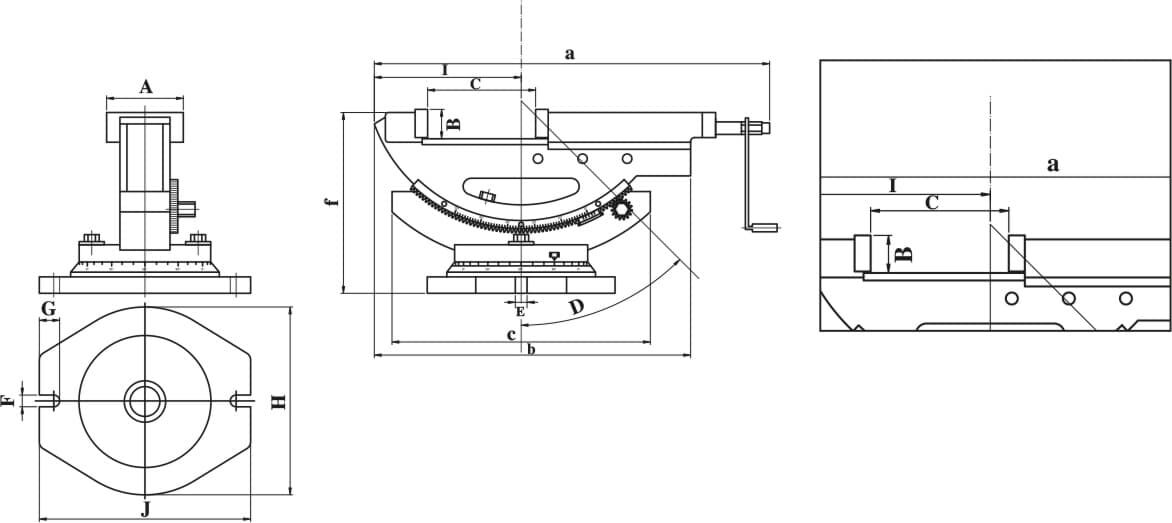

• Dimensions: 110 x 240 x 230 mm

Special features

• Tilting vice
• Material: Cast iron
• Type: Mechanical
• Category: Vertex
• SKU: VWT-4B

FAQ

What materials can be machined while clamped in this vice? The Vertex VWT-4B tilting milling vice is built from cast iron and is suitable for general machining of metals commonly used in milling operations; actual material suitability depends on the chosen cutting tools and machining parameters.

How is the tilting function adjusted and secured? The tilting mechanism on the VWT-4B is mechanical and designed for stable locking at the set angle to ensure the component remains rigidly clamped during milling operations.

Is the vice suitable for production use on heavy cuts? Yes, the vice’s mass (33.3 kg) and the 1200 kgf clamping force provide the stability required for heavier machining passes and continuous production environments.

What is the repeatability or precision that can be expected? The device specifies an accuracy of 0.01 mm, delivering the repeatability needed for many precision milling tasks when mounted and operated under suitable machine conditions.

Does the vice come ready for mounting on standard machine tables? The VWT-4B is a mechanical tilting vice designed for conventional mounting; compatibility with a specific machine table should be confirmed against the vice’s dimensions and mounting layout.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
