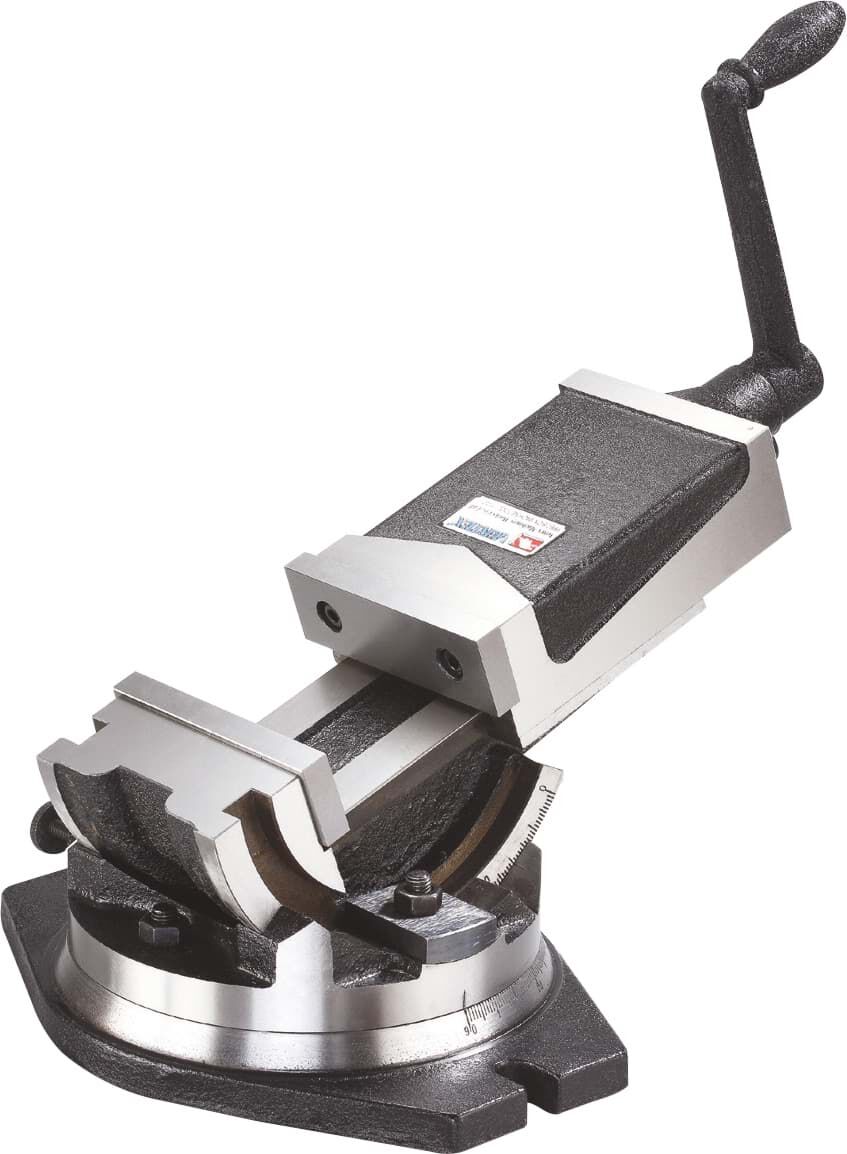

VWT-5 Tilting Milling Vice (Vertex) – 900 kgf Clamping Force, 0–100 mm Opening

A VWT-5 tilting milling vice designed for accurate, medium‑duty workshop milling that secures workpieces horizontally or at angles for versatile machining operations

• Tilting design for angled workpieces
• 900 kgf clamping force for secure holding
• Jaw opening 0–100 mm for varied stock sizes
• Cast-iron body with 0.01 mm precision

Precision clamping that keeps tolerances tight

The vice delivers measurable consistency through its 0.01 mm accuracy, enabling repeatable machining results on serial parts and single setups alike. The combination of a high 900 kgf clamping force and mechanically stable guiding surfaces reduces micro-movement during cutting, which shortens rework cycles and improves first-pass yield. Such specification supports quality-controlled production where dimensional stability and reproducibility are essential.

Faster set-ups and flexible angle workholding

A robust tilting mechanism allows angled clamping without complex fixturing, cutting setup time and expanding the range of feasible operations on a single fixture. The 0–100 mm jaw opening covers a broad spectrum of stock sizes commonly encountered in jobbing and light production environments. Reduced fixturing complexity translates into shorter machine idle times and greater operational throughput for milling centres and bench-mounted machines.

Stable construction for consistent machining performance

Built from cast-iron, the vice’s mass and stiffness—reflected in its 31.7 kg weight—dampen vibration and deliver improved surface finish and tool life. The substantial base and rigid jaws ensure reliable contact under machining loads, supporting secure clamping across repeated cycles. This durability results in lower maintenance frequency and dependable accuracy over extended service life.

Seamless workshop integration and assured supply

The mechanically operated design is readily compatible with standard milling tables and tooling, allowing simple retrofitting into existing production lines. The precision and robustness of this vice support downstream inspection and process control, helping to reduce scrap rates. Metav’s role as a European quality filter means access to reliable inventory and expert advice from Emmerich, backed by decades of precision experience and a broad product range.

Choose the Vertex VWT-5 for reliable, high‑precision clamping and contact Metav Werkzeuge in Emmerich for expert guidance and dependable delivery via info@metav-werkzeuge.com or +49 2822 7131930

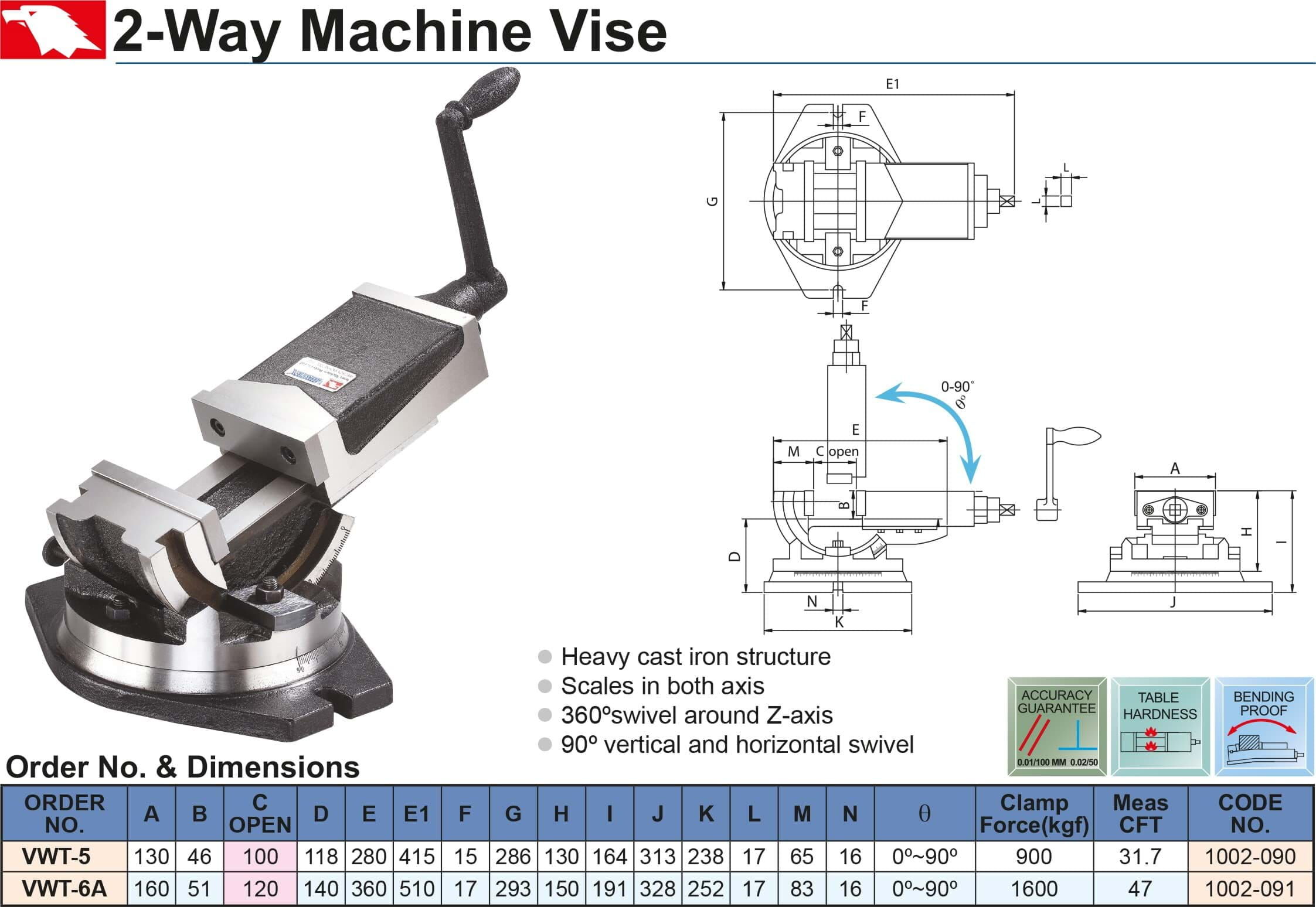

Technical Data

• SKU: VWT-5
• GTIN: 4061905089152
• Manufacturer: Vertex
• Type: Mechanical
• Eclass: 21020601
• ETIM: EC002173

Facts

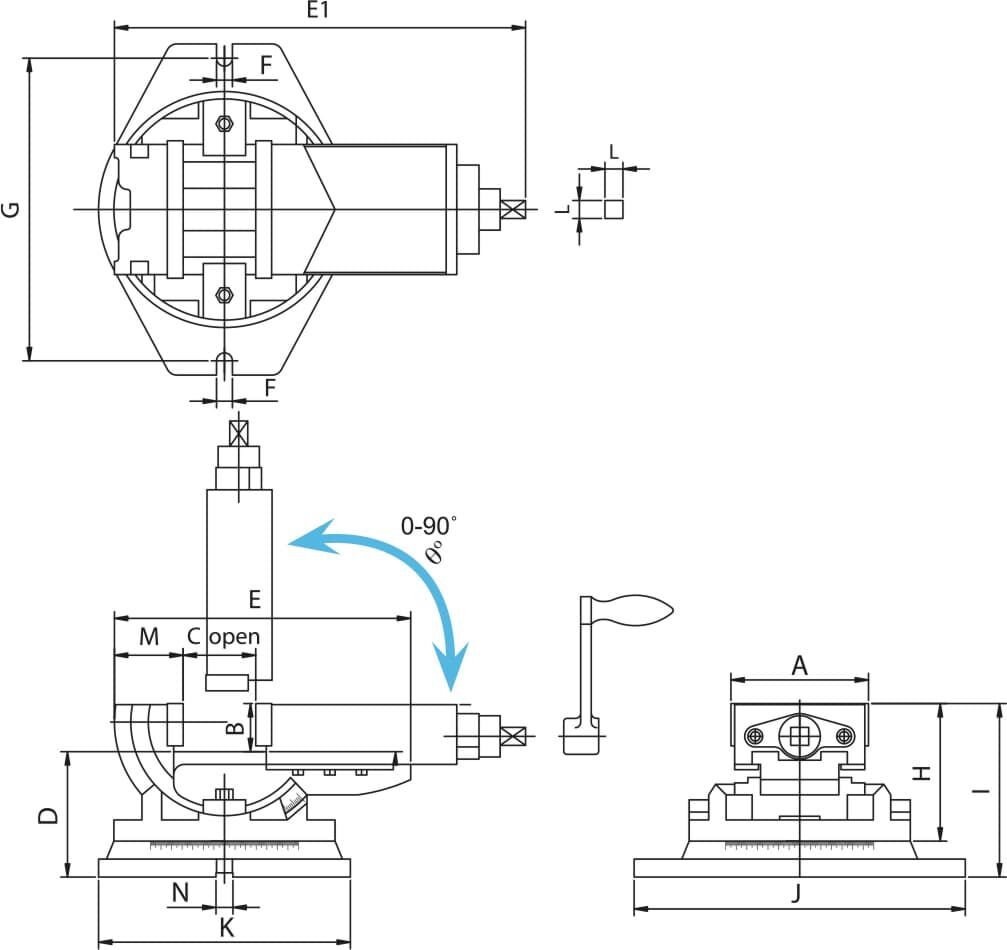

• Dimensions: 313 x 415 x 164 mm
• Weight: 31.7 kg
• Jaw opening: 0–100 mm
• Clamping force: 900 kgf
• Accuracy: 0.01 mm

Materials & Special Features

• Material: Cast iron
• Tilting function (kippbar)
• Mechanical operation
• High clamping force for secure holding

FAQ

What types of machining suit this vice?
The VWT-5 tilting milling vice by Vertex is suited to milling operations where secure, precise clamping is required, including angled cuts and repeatable series work on milling machines.

How precise is the clamping and positioning?
With an accuracy of 0.01 mm, the vice provides high repeatability, making the VWT-5 suitable for applications that demand tight dimensional control.

Which materials can be held securely in the vice?
The mechanical design and 900 kgf clamping force allow the vice to securely hold a wide range of workshop materials typically processed on milling machines.

How does the tilting function improve workflow?
The tilting mechanism reduces the need for additional fixtures when working on angled faces, speeding up set-up and enabling more operations per setup.

Is the vice stable during heavy milling cuts?
The cast-iron body and substantial mass provide vibration damping and stability, supporting consistent cutting performance and improved surface finish.

Manufacturer: Vertex Machinery Works Co., Ltd.; No. 296, Sec. 1, Feng Shih Road, Fengyuan District, Taichung City 420, Taiwan
