200-2200mm Digital Micrometer With IP65 Protection, ISO 17025 Calibration Certificate - Microtech Metrology
€3,850.00
Product information "200-2200mm Digital Micrometer With IP65 Protection, ISO 17025 Calibration Certificate - Microtech Metrology"
Take advantage of a robust, wide‑range measuring solution that combines a 200–2200 mm measuring span, IP65‑protected digital electronics and an ISO 17025 calibration certificate for reproducible inspection results; order this precision instrument via Metav Werkzeuge or consult our specialists for selection support.

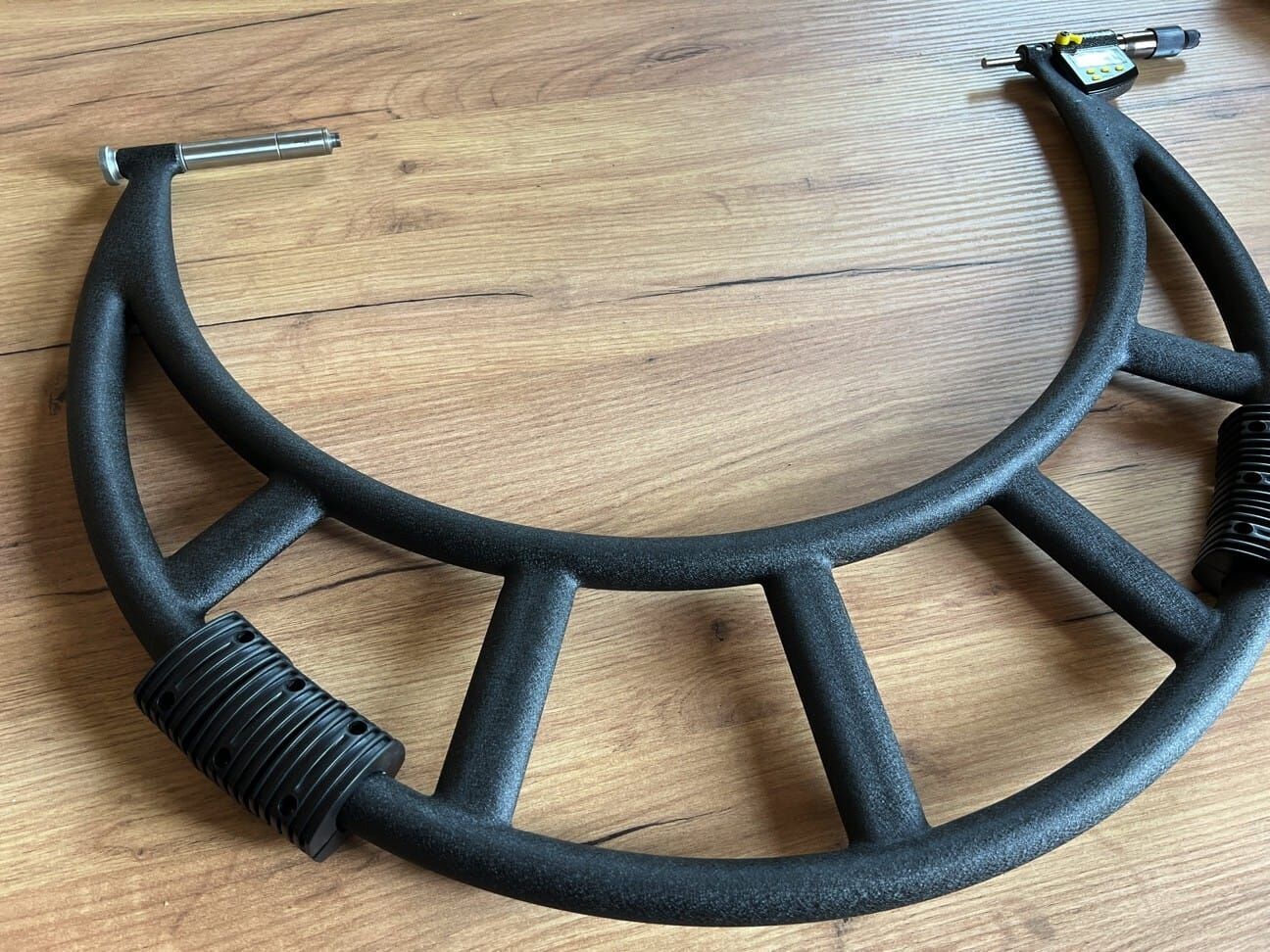

Outside micrometer — Digital, IP65 protection, 200–2200 mm (Microtech Metrology)
A outside micrometer designed for large‑format dimensional checks across the workshop and inspection bench, offering a calibrated measuring solution for heavy‑duty components.
- Wide measurement range 200–2200 mm
- IP65 digital head for harsh environments
- Supplied with calibration certificate ISO 17025
- Ratchet stop and Ø50 mm measuring faces
High‑precision span for large components
This instrument delivers a 200–2200 mm measuring range, placing it in the Extra‑Long class suitable for large shells, housings and shafts where single‑pass checks reduce setup time. The device combines a fine 0.001 mm display resolution with a declared accuracy of 0.04 mm, which supports reliable decision‑making during in‑process inspection and final acceptance. The generous Ø50 mm measuring faces distribute clamping forces and help preserve part surfaces while maintaining repeatability across long spans.
Robust electronics and traceable calibration for production control
Equipped with an IP‑rated digital head (IP65) the unit tolerates coolant spray and workshop dust, so readings remain legible in demanding environments. A full calibration certificate issued to ISO 17025 (ILAC MRA recognised) is supplied, enabling direct inclusion in quality documentation and easing traceability for audit purposes. The package also contains setting rods for quick verification of zero and reference checks, supporting a controlled measurement routine without auxiliary equipment.
Practical design for heavy‑duty workshop use
The instrument features a friction‑type ratchet stop (ratchet stop) to standardise closing force and reduce operator‑induced variation during repetitive checks. Built for large parts, the assembly is substantial — listed weight indicates robust construction and may require two‑person handling for the longest assemblies; this stability contributes to reproducible results over long spans. Intended as a workshop‑grade measuring instrument, the construction and calibrated electronics make it suitable for production inspection, incoming goods control and fixture verification.
Efficient inspection with measurable benefits
By combining wide range, repeatable closing mechanism and accredited calibration, the micrometer reduces the need for multiple tools or repeated setup steps. This concentrates inspection tasks and shortens throughput time while ensuring measurement results feed directly into quality procedures. The calibrated digital readout supports clear pass/fail assessment and documentation, helping teams maintain consistent quality standards across shifts.
Contact Metav Werkzeuge for an application review and a tailored supply proposal for the Microtech Metrology digital micrometer with ISO 17025 calibration; reach our specialists at info@metav-werkzeuge.com or by telephone on +49 2822 7131930
Technical Data
- Article number: 110172201
- GTIN: 4061905039430
- Manufacturer: Microtech Metrology
- Digital display: yes
- Protection class: IP 65
- Calibration: ISO 17025 (certificate included)
Facts
- Measurement range: 200–2200 mm
- Resolution: 0.001 mm
- Accuracy: 0.04 mm
- Measuring faces: Ø50 mm
- Weight: 25 kg
Special features
- Ratchet stop (friction wheel)
- Setting rods included
- Wide‑range CertiMet digital micrometer head
- Supplied with ISO 17025 calibration certificate (ILAC MRA)
FAQ
What measurement range does the instrument cover?
The outside micrometer from Microtech Metrology (SKU 110172201) covers 200–2200 mm, categorised as Extra‑Long for large components such as housings and shafts.
What resolution and accuracy are provided?
Resolution is 0.001 mm on the digital readout and accuracy is specified as 0.04 mm, suitable for workshop inspection and most production control tasks.
Is the micrometer delivered calibrated and traceable?
Yes. A calibration certificate issued to ISO 17025 is included, enabling direct traceability and audit‑ready documentation.
Can the instrument withstand workshop conditions?
The digital head is rated IP65, offering protection against dust and low‑pressure water jets; combined with its robust construction, this makes it suitable for regular workshop environments.
What are the measuring face dimensions and closing aid?
Measuring faces are Ø50 mm and the device includes a friction‑type ratchet stop to standardise closing force and improve repeatability.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
