2800-3000mm Digital Micrometer Frame With IP65 Protection, ISO 17025 Calibration Certificate - Microtech Metrology
€4,900.00
Product information "2800-3000mm Digital Micrometer Frame With IP65 Protection, ISO 17025 Calibration Certificate - Microtech Metrology"
Take advantage of the combination of an extra‑long measuring range, a robust IP65 digital head and full ISO 17025 calibration, ensuring reproducible, traceable measurements for large components; order directly via Metav Werkzeuge or consult the specialists for application support.

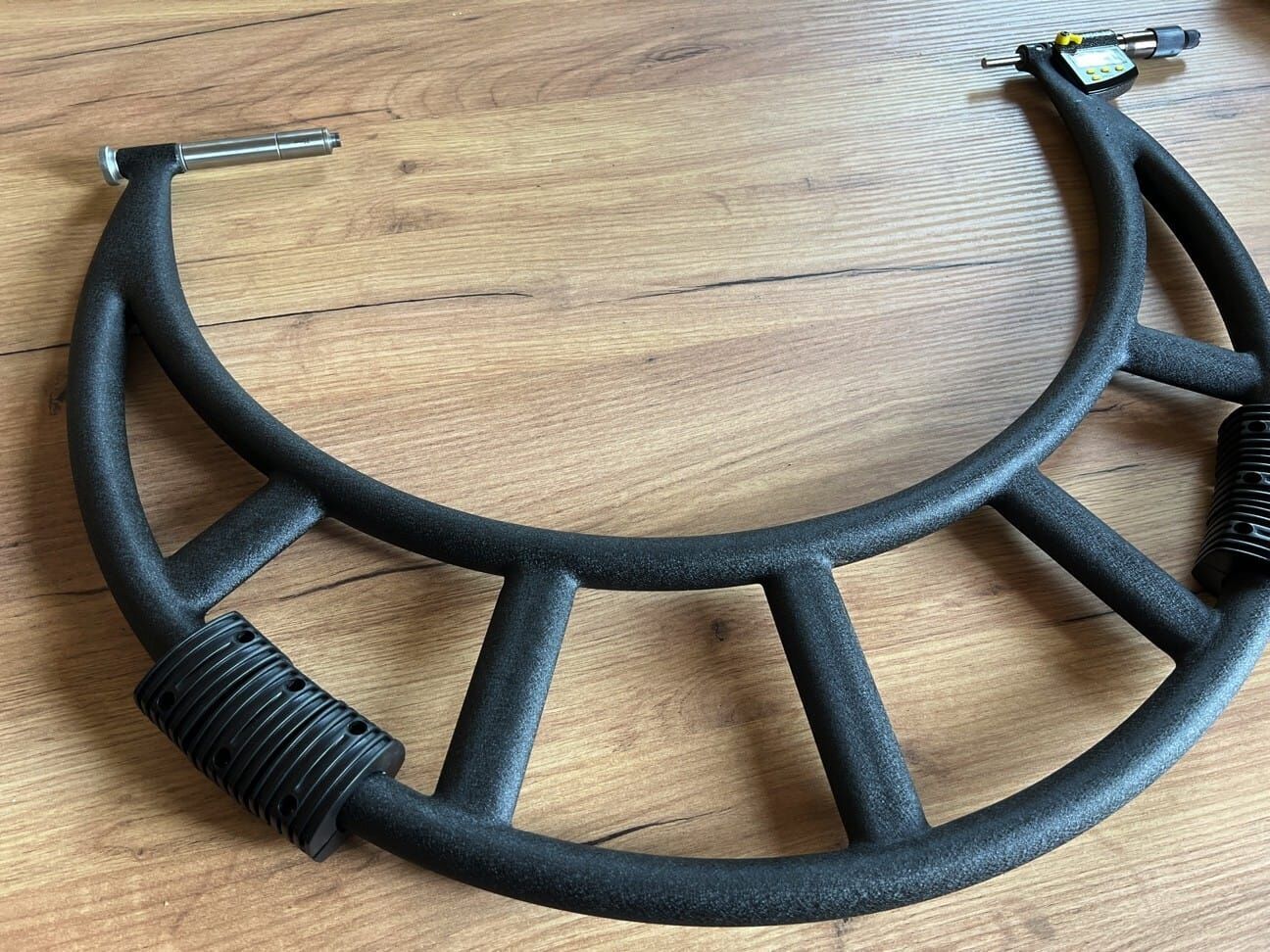

Outside micrometer — Digital IP65 head by Microtech Metrology, extra‑long range
Outside micrometer for precise external measurements of large workpieces in heavy machining, inspection and toolmaking environments.
- Extra‑long 2,800–3,000 mm measuring range
- IP65 digital micrometer head for workshop use
- ISO 17025 calibration certificate included
- Large Ø50 mm measuring faces and ratchet control
Engineered for extra‑long measurements with repeatability
The instrument is built as an extra‑long range measuring device, covering 2,800–3,000 mm, which places it in the class for very large components where single‑piece measurement is required. The extended span reduces the need for piecewise measurement and alignment operations, helping to shorten inspection cycles. Large contact surfaces distribute pressure over the part, so the Ø50 mm measuring faces minimise local deformation and contribute to reproducible results during serial inspections.
Rugged digital head designed for harsh workshop conditions
Equipped with a digital micrometer head rated IP65, the measuring system resists coolant, dust and general workshop contamination while keeping the display and electronics protected. The sealed head and industrial display enable straightforward readout and reduce transcription errors. A fine friction ratchet provides a consistent measuring force, improving repeatability, and the inclusion of setting rods simplifies calibration and setup on-site, making the device practical for production environments.
Factory traceability and accredited calibration for confident decision‑making
This micrometer is delivered with an ISO 17025 calibration certificate (Ilac MRA), supplying documented traceability to national standards. The accredited certificate supports internal quality records and audit trails, helping to meet supplier qualification and inspection requirements. Formal calibration together with the specified accuracy ±0.06 mm gives a verifiable baseline for tolerance checks on large assemblies and reduces uncertainty in acceptance testing.
Practical handling and measurement performance for workshop productivity
Although substantial in size, the instrument is configured to be manageable in workshop workflows: robust construction balances stiffness and handling, and the digital readout (resolution 0.001 mm) speeds measurement tasks and reduces operator interpretation. The combination of a sealed head, ratchet control and generous measuring faces reduces rework caused by measurement variability and supports a consistent production flow, particularly in heavy machining, presswork and large‑part assembly contexts.
Contact Metav Werkzeuge for tailored advice on integrating this Microtech Metrology outside micrometer into existing inspection processes; specialists are available in Emmerich for delivery and documentation details via info@metav-werkzeuge.com or +49 2822 7131930
Technical data
- Article number: 110173101
- GTIN: 4061905039478
- Manufacturer: Microtech Metrology
- IP protection: IP65
- Digital: yes
- Calibration: ISO 17025 (Ilac MRA) certificate included
Measurements
- Measuring range: 2,800–3,000 mm
- Measuring faces: Ø50 mm
- Resolution (display): 0.001 mm
- Accuracy: ±0.06 mm
- Weight: 33 kg
Design & special features
- Digital micrometer head, sealed to IP65
- Friction ratchet for reproducible measuring force
- Setting rods included for adjustment
- ISO 17025 calibration certificate supplied
- Robust construction for large‑part inspection
FAQ
What types of components is this micrometer suited for?
The outside micrometer from Microtech Metrology is intended for large external dimensions such as heavy housings, large shafts and pressings where a single, continuous measurement across 2,800–3,000 mm improves traceability and reduces alignment effort.
How accurate and precise is the measurement result?
Typical accuracy is specified as ±0.06 mm with a digital readout resolution of 0.001 mm; the built‑in ratchet and large measuring faces support precise, repeatable contact conditions for consistent results.
Is the instrument ready for use upon delivery?
Yes. The micrometer is supplied with setting rods and an ISO 17025 calibration certificate, providing documented traceability and immediate suitability for quality control tasks.
Can the micrometer be used in coolant or dusty environments?
The digital head is rated IP65, so the display and electronics are protected against dust and low‑pressure water jets, making the tool suitable for typical workshop conditions.
Which SKU identifies this product for ordering and documentation?
The micrometer is stocked as SKU 110173101 and can be referenced in purchase orders and calibration records.
