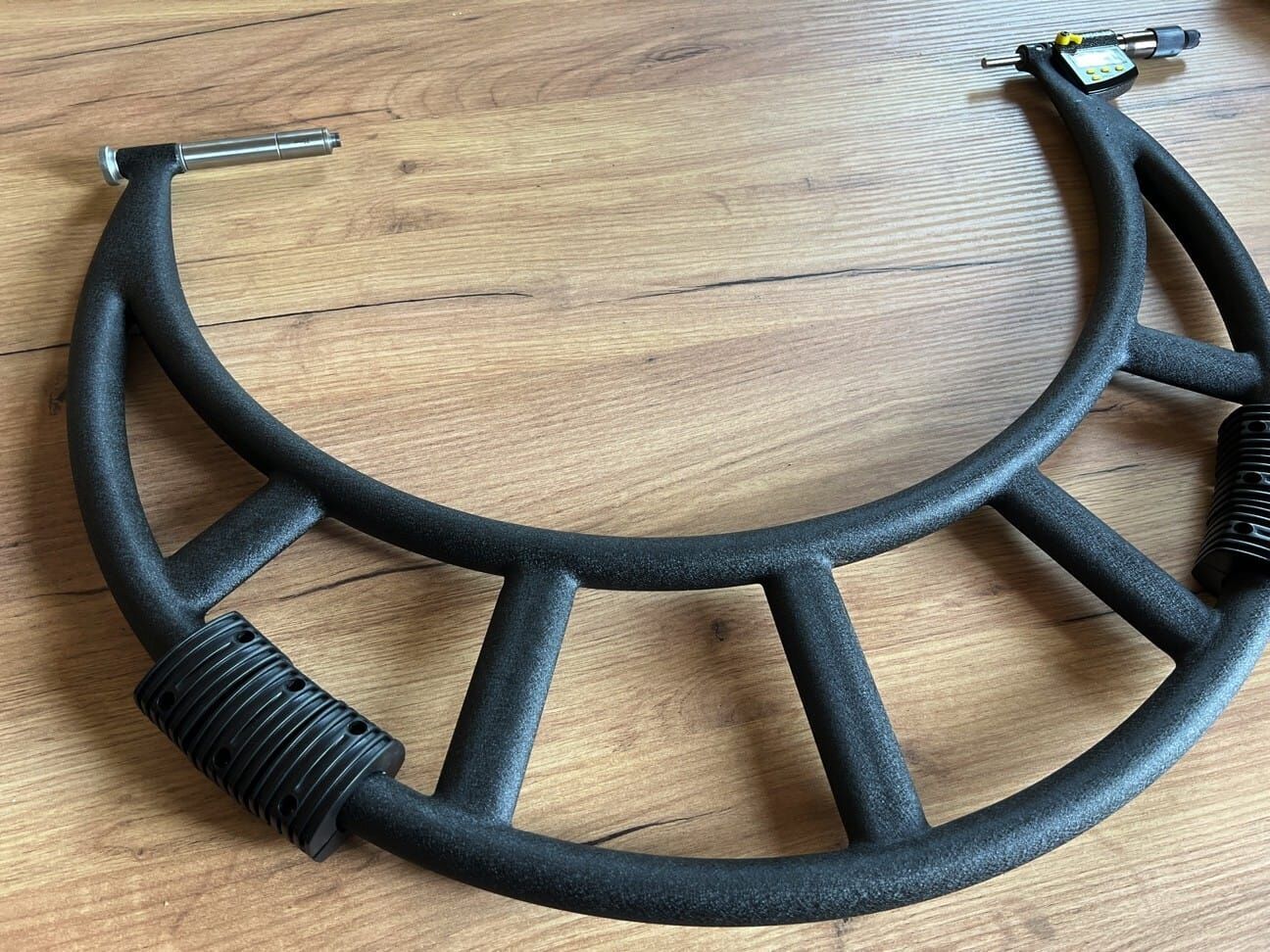

300-400mm Digital Outside Micrometer With Ratchet Stop, IP65, Calibrated To ISO 17025 - Microtech Metrology
€699.00
Product information "300-400mm Digital Outside Micrometer With Ratchet Stop, IP65, Calibrated To ISO 17025 - Microtech Metrology"
Take advantage of the combination of high-resolution digital reading, IP65 protection and an ISO 17025 calibration certificate for reliable measurement in production and quality control. Order the measuring instrument directly via Metav Werkzeuge or ask our consultants if needed.
Outside micrometer by Microtech Metrology — digital, IP65, 300–400 mm range
The Outside micrometer is a digital, large-range micrometer designed for robust external measurements of medium-sized components in workshops and inspection rooms.
- Digital display with 0.001 mm resolution
- IP65 protection for harsh workshop conditions
- Ratchet stop for consistent measuring force
- ISO 17025 calibration certificate included
Reliable precision for medium-sized components
This measuring instrument is specified for a 300–400 mm measuring range, which places it in the medium class suitable for fixtures, housings and larger assemblies where reach and stiffness must be balanced. The tool combines a fine 0.001 mm display resolution with a stated accuracy of ±0.007 mm, allowing objective repeatability for production checks and incoming inspection. The digital readout simplifies data capture and reduces transcription errors compared with mechanical readings, increasing process reliability in machining and QA workflows.
Built to withstand workshop conditions and keep measuring reproducible
The micrometer is rated IP65, which means it is dust-tight and protected against low‑pressure water jets, so routine cleaning and typical shop-floor exposure do not compromise the electronics. The Ø25 mm measuring faces provide stable contact for larger profiles while the integrated friction ratchet (ratchet stop) enforces a consistent measuring force, reducing variance caused by operator pressure. Weighing approximately 1.9 kg, the instrument balances rigidity and handling for single-person use while remaining substantial enough to avoid unwanted flex during measurement.
Traceable calibration for quality assurance and immediate use
Delivered with a full ISO 17025 calibration certificate, the instrument arrives ready for quality‑assured tasks and is suitable for certified test benches and documented inspection procedures. Included setting rods enable quick verification and adjustment on site before first use, saving setup time. The calibration under ISO 17025 ensures traceability and acceptance in regulated environments; the certificate documents measurement uncertainty and supports audit evidence in supplier or customer quality checks.
Faster, safer measurement and fewer reworks
A clear digital display combined with the ratchet mechanism improves throughput: measurements are taken faster and with reduced operator influence, which can decrease scrap and rework. The solid digital head is engineered for repetitive use in production and inspection, while the included calibration documentation means the instrument can be integrated into measurement routines without delay. For applications where consistent external measurement of medium-sized parts is essential, this micrometer offers a practical blend of durability, precision and traceability.
Contact Metav Werkzeuge today for advice on suitability for specific parts and to secure the Microtech Metrology outside micrometer with ISO 17025 calibration for your workshop
Technical data
- Article number: 110174001
- GTIN: 4061905039270
- Manufacturer: Microtech Metrology
Facts
- Measuring range: 300–400 mm
- Resolution: 0.001 mm
- Accuracy: ±0.007 mm
- Measuring faces: Ø25 mm
- Weight: 1.9 kg
- Protection class: IP65
- Display: digital
- Calibration: ISO 17025 certificate included
Special features
- Ratchet stop (friction ratchet)
- Setting rods included
- Digital micrometer head
- Large measuring range for medium components
FAQ
Is the micrometer suitable for production inspection of medium-sized parts?
The micrometer from Microtech Metrology is specified for a 300–400 mm range and is intended for medium-sized components, making it suitable for production inspection and quality checks.
What level of accuracy and resolution does the instrument offer?
The instrument provides a resolution of 0.001 mm and a stated accuracy of ±0.007 mm, which supports repeatable measurements for standard workshop and quality‑control tasks.
Does the delivery include calibration documentation?
Yes. The outside micrometer is supplied with an ISO 17025 calibration certificate, enabling immediate use in traceable inspection routines.
How does the ratchet stop improve measurement consistency?
The ratchet stop ensures a reproducible measuring force so readings are less affected by operator pressure, improving comparability across multiple measurements.
Is the device protected against dust and water on the shop floor?
The micrometer is IP65-rated, meaning it is dust-tight and protected against low-pressure water jets, suitable for typical workshop environments.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
