400-500mm Micrometer With Digital IP65 Display, Friction Ratchet, Ø25mm Measuring Faces, ISO 17025 Calibrated - Microtech Metrology
€779.00
Product information "400-500mm Micrometer With Digital IP65 Display, Friction Ratchet, Ø25mm Measuring Faces, ISO 17025 Calibrated - Microtech Metrology"
Take advantage of a rugged, workshop-ready measuring instrument that combines a wide 400–500 mm measuring range, an IP65-protected digital head and a traceable ISO 17025 calibration certificate for immediate use in quality control. Order the micrometer directly via Metav Werkzeuge or consult the team for application advice.

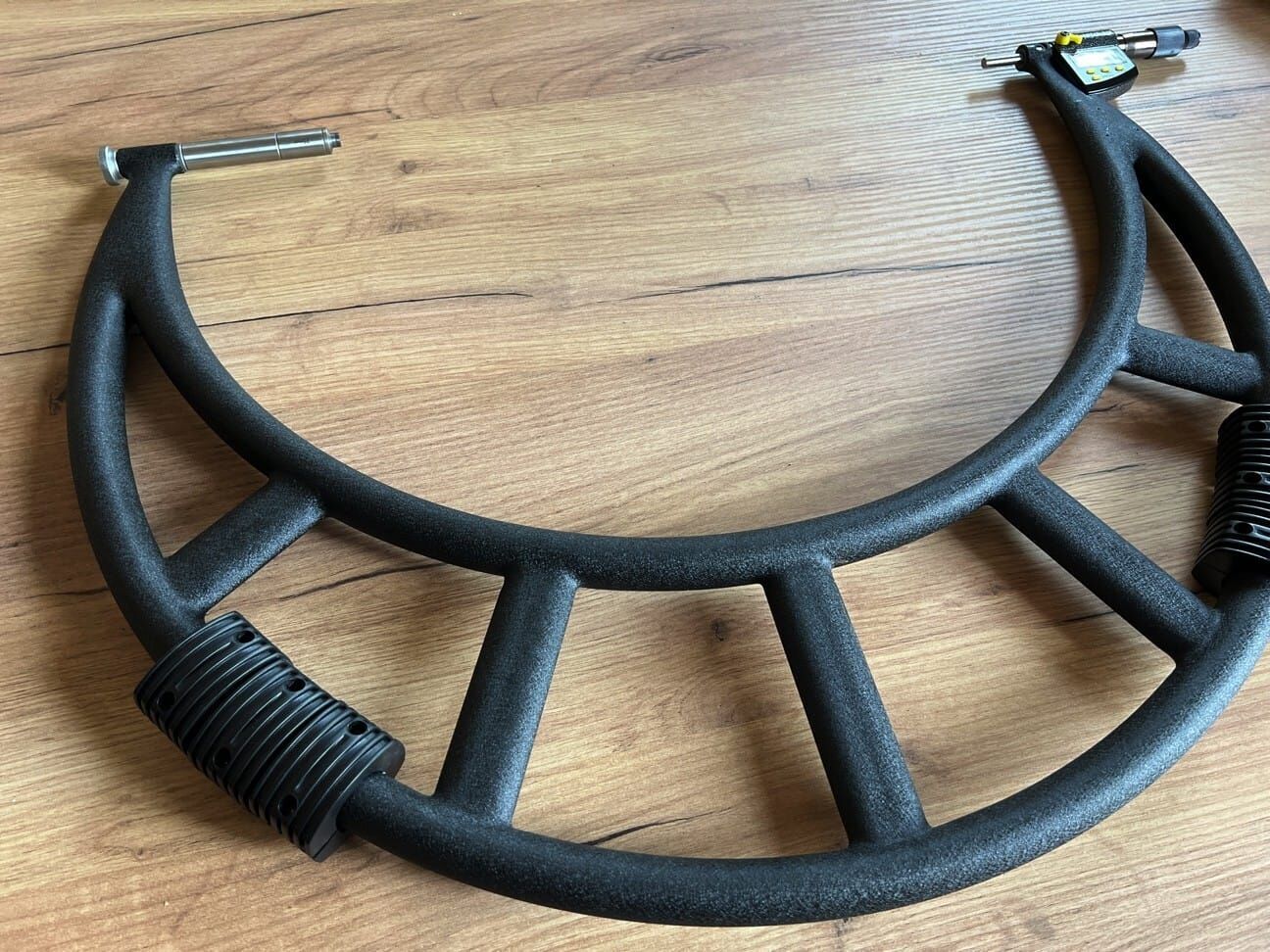

Microtech Digital Outside Micrometer 400–500 mm — digital, IP65, ISO 17025 calibrated
A Microtech Digital Outside Micrometer 400–500 mm designed for robust, repeatable external measurements of large components in production, toolmaking and inspection environments
- IP65-protected digital head
- ISO 17025 calibration certificate included
- Measuring range 400–500 mm
- Ø25 mm hardened measuring faces
Precision where large-format measurement matters
The large-frame digital micrometer delivers repeatable measurements across a substantial span thanks to a robust frame and Ø25 mm measuring faces that distribute contact forces. The instrument features a digital display with a fine 0.001 mm reading and an indicated accuracy of ±0.007 mm, which together reduce reading errors and support tighter tolerance verification in production. Included setting rods and a delivered calibration certificate under ISO 17025 ensure immediate traceability and documentation for quality assurance processes. The combination of high resolution and certified calibration makes the micrometer suitable for final inspection of assemblies where reliable dimensional data is essential.
Built for workshop use: durability and consistent handling
Designed for repetitive measuring tasks, the unit offers a friction ratchet to standardise closing force, minimising variation caused by different operators. The IP65 protection rating means the measuring head is sealed against dust and low-pressure water jets, supporting use at the workbench or on the shop floor without sacrificing the electronics. At approximately 2.2 kg the instrument is substantial enough to feel stable in the hand, which assists in consistent positioning across a long measuring span. These mechanical and protective features translate into fewer out-of-tolerance calls and less rework over time.
Traceability, documentation and procurement benefits
Delivery includes a full calibration certificate performed to ISO 17025 (Ilac MRA), offering documented measurement credibility for internal audits and customer reporting. The micrometer’s technical specification and supplied documentation simplify integration into inspection routines and metrology records. For purchasing and supply reliability, Metav Werkzeuge acts as a quality filter for the European market, providing access to certified measuring instruments and the option to request additional technical data or advice from a dedicated team.
Contact Metav Werkzeuge to request the Microtech digital outside micrometer specification sheet, confirm stock availability at Emmerich and arrange purchase or technical clarification through Metav Werkzeuge.
Technical data
- Article number: 110175001
- GTIN: 4061905040115
- Manufacturer: Microtech Metrology
- Digital: yes
- IP rating: IP65
Facts
- Measuring range: 400–500 mm
- Resolution (display): 0.001 mm
- Accuracy: ±0.007 mm
- Measuring face diameter: Ø25 mm
- Weight: 2.2 kg
Special features
- Digital micrometer head with IP65 protection
- Friction ratchet for consistent measuring force
- Setting rods included
- Calibration certificate included (ISO 17025 (Ilac MRA))
- Robust frame for large-format external measurement
FAQ
What measuring range does the micrometer cover?
The micrometer covers a 400–500 mm span, suitable for medium-range external measurements of larger components.
Is the micrometer supplied with traceable calibration?
Yes, the instrument is delivered with a calibration certificate performed to ISO 17025, ensuring traceability and audit-ready documentation.
What resolution and accuracy can be expected from the device?
The digital display shows 0.001 mm increments and the stated accuracy is ±0.007 mm, providing fine resolution for quality control tasks.
Can the micrometer be used on a shop floor environment?
With an IP65-protected head and a robust frame, the micrometer is designed to withstand dusty and splashing conditions common in workshop settings.
Which accessories are delivered with the micrometer?
The micrometer is supplied with setting rods and the stated calibration certificate to enable immediate, documented use in inspection processes.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
