500-600mm Digital Micrometer, Friction Ratchet, Ø25mm Measuring Faces, ISO 17025 Calibrated, IP65 - Microtech Metrology
€900.00
Product information "500-600mm Digital Micrometer, Friction Ratchet, Ø25mm Measuring Faces, ISO 17025 Calibrated, IP65 - Microtech Metrology"
Reliable large‑format measurement without compromise: the Microtech digital outside micrometer delivers IP65 protection, an ISO 17025 calibration certificate and a ratchet stop for consistent measuring force; ideal for production and quality control. Order the instrument directly via Metav Werkzeuge or consult the specialists for application advice.

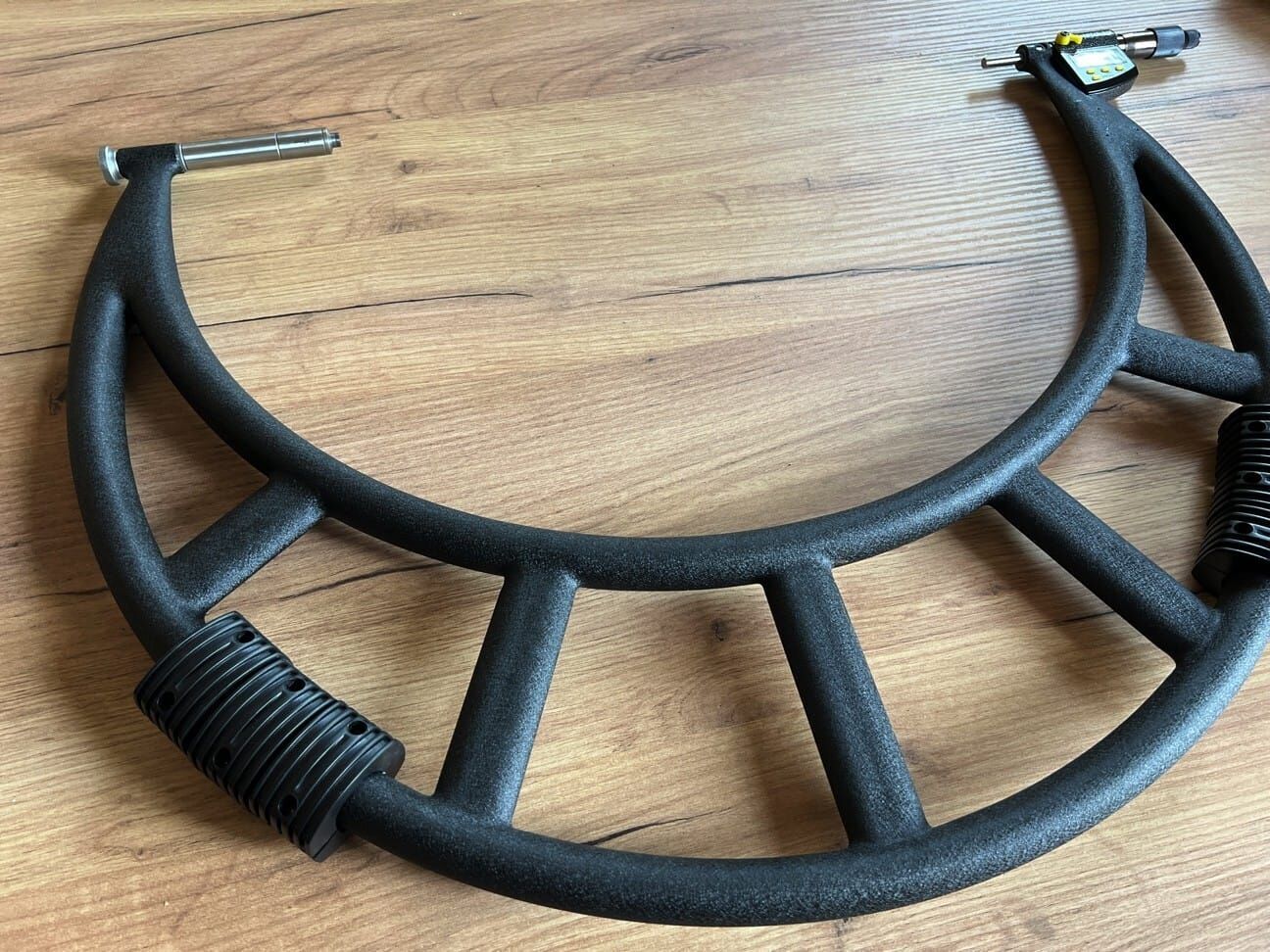

Digital Outside Micrometer — Microtech Metrology, 500–600 mm, IP65
The Digital Outside Micrometer is a rugged, workshop‑grade micrometer for large components, offering a 500–600 mm measuring range, dust‑ and water‑resistant construction and an ISO 17025 calibration certificate for traceable results.
- Digital display with 0.001 mm resolution
- IP65 protection for harsh environments
- ISO 17025 calibration certificate included
- Heavy‑duty 500–600 mm measuring range
High‑throughput accuracy for production control
The instrument combines a 0.001 mm digital readout with an achieved accuracy of ±0.008 mm, translating technical capability into measurable process reliability. In practice, the fine display resolution reduces interpretation error, while the specified accuracy supports repeatable pass/fail decisions during batch inspections. The included ISO 17025 calibration certificate documents traceability to international standards, which is essential for audit‑ready quality processes and supplier chains that demand certified measurement data.
Built to withstand workshop conditions
Designed for routine use on the shop floor, the device features an IP65‑rated digital head and a friction ratchet (ratchet stop) that ensures consistent measuring force across operators. The combination of sealed electronics and controlled contact pressure reduces drift and human‑induced variation, so measurements remain reliable even in dusty or humid environments. The measuring faces are Ø25 mm, offering stable contact on large surfaces, and the total instrument mass of 2.6 kg gives the feel of a robust tool without being unwieldy for standard handling.
Repeatability and ease of operation
Ergonomic design elements and the ratchet stop simplify repetitive tasks: the torque‑limited end stop minimises over‑tightening and ensures repeatable closure force for each reading. The micrometer head provides a clear digital display with a standard industry resolution, and setting rods are included to facilitate quick verification and zeroing. These features reduce cycle time per measurement and lower the risk of operator error, supporting lean inspection workflows and predictable throughput in the metrology loop.
Suited for large‑range and workshop applications
Classified as a large‑range micrometer (500–1,000 mm), the instrument bridges the gap between bench micrometers and long‑span gauges, making it appropriate for heavy‑duty components such as housings, shafts and large fittings. Its construction and calibration pedigree make it well suited to production environments, toolrooms and incoming inspection stations where documented accuracy and resistance to environmental influence are required. The robust digital head and the supplied calibration certificate simplify integration into quality documentation systems.
For traceable, large‑format measurement needs from Microtech, contact Metav Werkzeuge in Emmerich to discuss delivery, calibration and technical integration options.
Technical data
- Article number: 110176001
- GTIN: 4061905040221
- Manufacturer: Microtech Metrology
- Category: Outside micrometers (Messschrauben)
Facts
- Measuring range: 500–600 mm
- Resolution: 0.001 mm
- Specified accuracy: ±0.008 mm
- Measuring faces: Ø25 mm
- Weight: 2.6 kg
- IP rating: IP65
- Display: Digital
- Friction ratchet: yes
- Calibration: ISO 17025 certificate included
Special features
- Digital micrometer head with IP65 proof
- Setting rods included
- Calibration certificate ISO 17025 (Ilac MRA)
- Ratchet stop for consistent measuring force
- Robust construction for workshop use
FAQ
What measuring range does this instrument cover?
The micrometer covers a 500–600 mm measuring range, placing it in the large‑range class suitable for sizeable components.
Is the device delivered calibrated?
Yes, the Microtech digital outside micrometer is supplied with an ISO 17025 calibration certificate, confirming traceability and laboratory calibration.
What resolution and accuracy can be expected?
The instrument provides a digital resolution of 0.001 mm and a specified accuracy of ±0.008 mm, suitable for production control of large parts.
Is the micrometer protected against workshop conditions?
Yes, the device features an IP65‑rated digital head and a robust frame, supporting use in dusty or humid environments.
What contact faces are fitted and are accessories included?
The micrometer has Ø25 mm measuring faces and includes setting rods for verification and adjustment.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
