600-700mm Precision Bore Micrometer Digital Readout IP65, Incl. Setting Rods, ISO 17025 Calibration Certificate - Microtech Metrology
€999.00
Product information "600-700mm Precision Bore Micrometer Digital Readout IP65, Incl. Setting Rods, ISO 17025 Calibration Certificate - Microtech Metrology"
High-precision measurement for large components: digital micrometer head with IP65 protection, ISO 17025 calibration certificate included and a measuring range of 600–700 mm ensure reproducible results on heavy-duty parts; order directly via Metav Werkzeuge or contact our consultants for application advice.

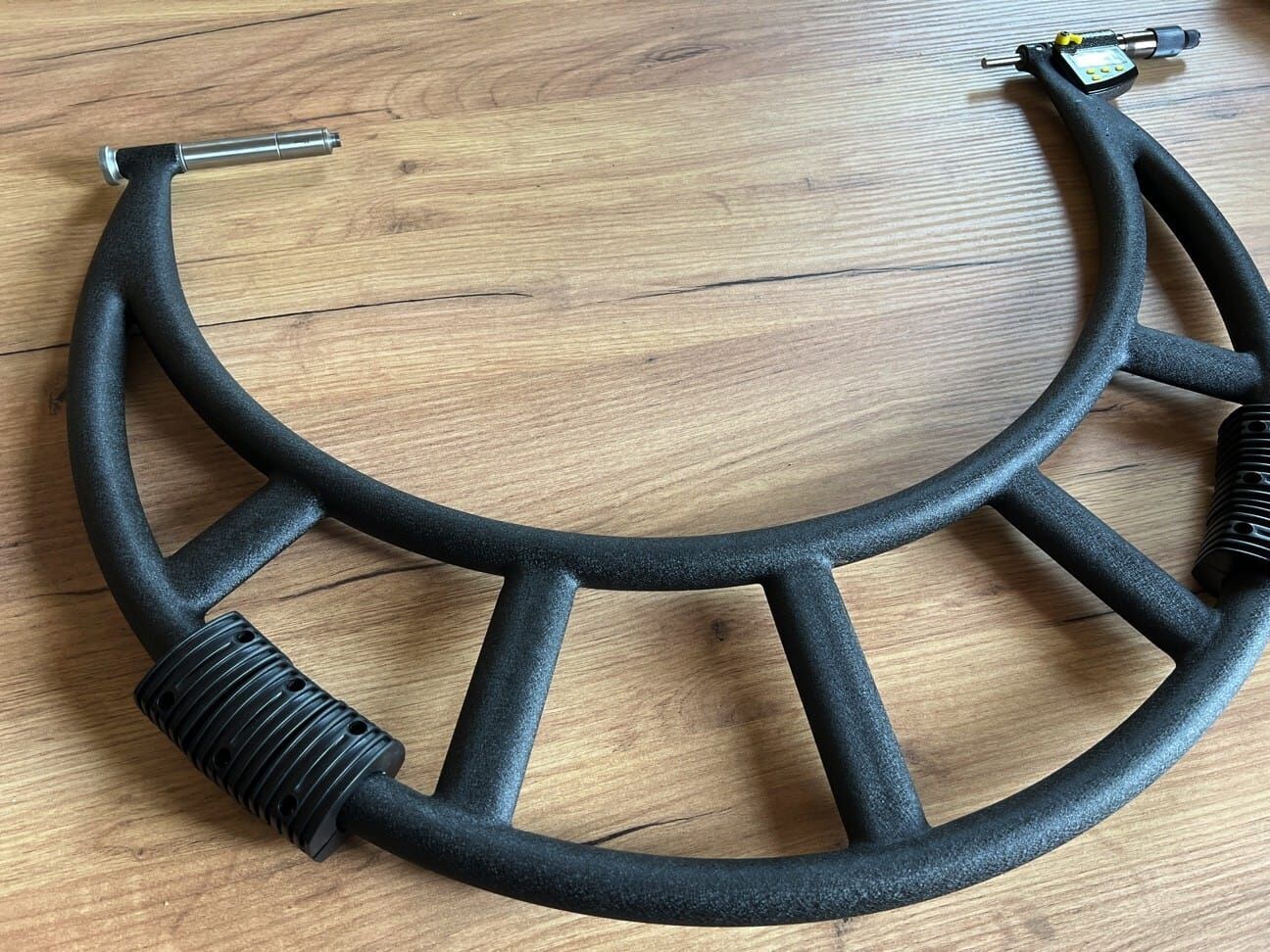

Digital Micrometer (600–700 mm) – IP65, ISO 17025 calibrated (Microtech Metrology)
The Digital Micrometer 600–700 mm is a robust external micrometer designed for dimensional control of large assemblies and machined parts in heavy machining, fixture and mould work.
- IP65-rated digital head
- ISO 17025 calibration certificate included
- Friction ratchet for consistent contact
Consistent precision for large-format measurements
This instrument delivers the kind of precision required when measuring sizeable components: a measuring range 600–700 mm combined with a resolution 0.001 mm and an effective accuracy of ±0.008 mm translates into dependable readings across long spans. The measuring faces of Ø25 mm provide a stable contact area that reduces local deformation on curved or soft surfaces, so measured dimensions remain reproducible. The digital readout and robust spindle geometry minimise interpretation errors and help maintain process stability in production and inspection environments.
Built for workshop conditions and repeatable handling
Protection to IP65 for the digital micrometer head makes the device suitable for use at the machine bench where coolant mist, dust and swarf are present. A built‑in friction ratchet ensures a consistent measuring force to reduce operator influence and improve repeatability across multiple operators. The unit’s construction balances stiffness and handling: despite a larger measuring span, weight and centre of gravity are designed to allow practical single-person use for routine checks, while preserving the rigidity needed for accurate long-span measurement.
Calibrated traceability and conformity for quality systems
Delivered with an ISO 17025 calibration certificate, the micrometer supports formal quality workflows and audit requirements; the certificate documents traceability and measurement uncertainty for the delivered instrument. Calibration according to ILAC‑MRA standards removes ambiguity at acceptance and eases integration into laboratory or production metrology systems. For companies seeking reproducible results and documented compliance, the included calibration report speeds qualification of the measuring equipment into internal control plans.
Practical application: where this micrometer adds value
The instrument is aimed at heavy machining shops, toolrooms and fixture manufacturers that require large-span external measurement with laboratory-style documentation. Typical uses include verification of shafts, housings and large fixtures where a long, rigid contact and a clear digital readout shorten inspection cycles. Included setting rods simplify zeroing and reference checks, reducing setup time between part families and supporting efficient in-process inspections.
For reliable, ISO‑backed measurement of large components, contact Metav Werkzeuge to discuss the Microtech Metrology digital micrometer and its suitability for production or inspection workflows—Metav Werkzeuge is based in Emmerich and provides specialist advice and logistics; eMail info@metav-werkzeuge.com or call +49 2822 7131930
Technical Data
- Article number: 110177001
- GTIN: 4061905040238
- Manufacturer: Microtech Metrology
- eClass: 21170328
- ETIM: EC003590
Facts
- Measuring range: 600–700 mm
- Resolution: 0.001 mm
- Accuracy: ±0.008 mm
- Measuring faces: Ø25 mm
- Weight: 2.9 kg
- IP protection: IP 65
Special features
- Digital display
- Friction ratchet
- Setting rods included
- ISO 17025 calibration certificate included (Ilac MRA)
- Robust construction for workshop use
FAQ
What is the measuring range and typical applications?
The micrometer offers a measuring range of 600–700 mm and is suitable for large external measurements such as shafts, housings and fixtures where a long, rigid contact is required.
Is the instrument calibrated on delivery?
Yes, the device is supplied with an ISO 17025 calibration certificate; Microtech Metrology provides the calibrated micrometer ready for integration into quality systems.
How resistant is the digital readout to workshop conditions?
The digital micrometer head is rated IP65, protecting the electronics from dust and water jets typical in production environments.
Does the micrometer support reproducible measuring force?
A built‑in friction ratchet ensures a consistent measuring force for repeatable contact and reduced operator influence across measurements.
Which accessories are included for setup and verification?
Setting rods are included to facilitate zeroing and reference checks, simplifying setup between inspection tasks.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
