1800mm Bench Micrometer With Colour Touchscreen, Wireless/USB Data, ISO 17025 Calibration Certificate - Microtech Metrology
€3,690.00
Product information "1800mm Bench Micrometer With Colour Touchscreen, Wireless/USB Data, ISO 17025 Calibration Certificate - Microtech Metrology"
Take advantage of the combination of a long 1,600–1,800 mm measuring range, integrated microcomputer functions and full ISO 17025 calibration for reproducible large‑part inspection and streamlined data capture. Order this instrument directly via Metav Werkzeuge or consult Metav’s advisers for application support.

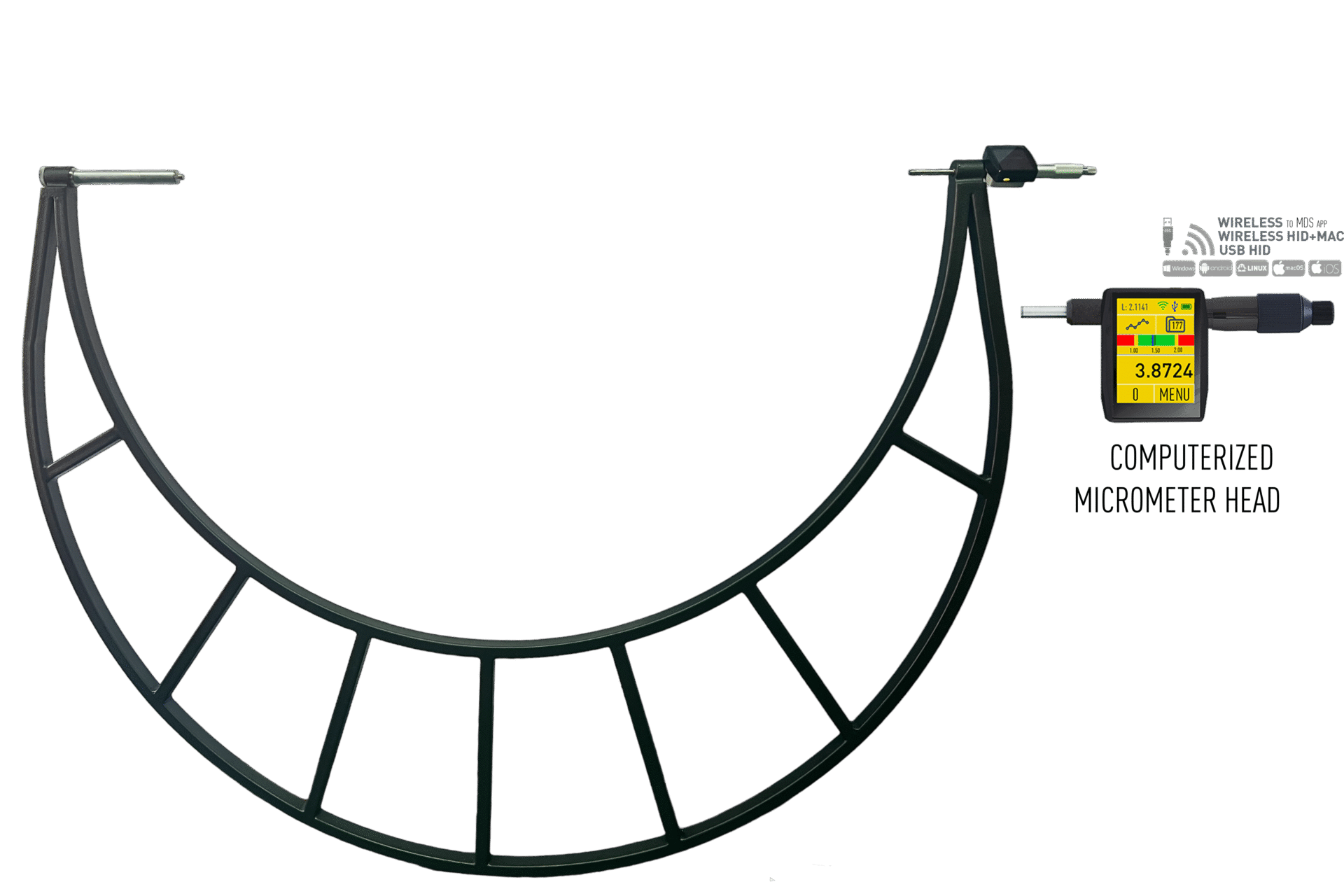

Micrometer 1,600–1,800 mm — Microtech Metrology, electronic with touchscreen
The micrometer from Microtech Metrology is a long‑range electronic bench instrument designed for industrial quality control of large components, combining robust mechanical design with modern data connectivity.
- Large measuring range 1,600–1,800 mm
- Colour 1.5" touchscreen display
- Wireless and USB data output
- ISO 17025 calibration certificate included
Precision for large components and reproducible workflows
With a measuring range of 1,600–1,800 mm, this instrument belongs to the Long class of large‑range metrology and is intended for sizeable assemblies where profile stiffness and repeatability matter. The solid CNC‑machined aluminium housing and Ø50 mm measuring faces provide the mechanical stability needed to keep deflection low across the span, while the instrument’s stated accuracy of 0.024 mm supports routine inspection tasks and process control. This combination reduces the number of rework cycles and shortens inspection time on heavy‑duty parts.
Industry 4.0 connectivity that saves time and prevents transcription errors
Equipped with a 1.5" colour touchscreen and a comprehensive data stack, the instrument offers wireless transfer to the MDS app, HID modes and USB HID for direct capture into measurement databases. The built‑in memory manager stores up to 2,000 values with folder organisation and statistical export, while optional MODBUS RTU (RS‑485) supports PLC integration for automated lines. These features translate into fewer manual steps, faster reporting and immediate traceability for batch records.
Calibrated delivery for reliable metrology and documented traceability
The device is supplied with a calibration certificate performed to ISO 17025 (Ilac MRA), ensuring measurement results are traceable and acceptable for internal quality control or external audits. The presence of an ISO 17025 certificate and the instrument’s documented performance removes ambiguity about conformity and simplifies incorporation into quality systems. Regular calibration intervals and documented evidence support supplier audits and first‑article inspection routines.
Intuitive operation tailored to workshop use
Operational modes such as Go/NoGo, Max/Min, formula entry, timer, linear and temperature correction make the instrument immediately useful on the shop floor and in the inspection lab. The touchscreen interface presents analogue and graphic readouts, 2D graphing and probe modes to help visualise trends during manual measurement tasks. Rugged construction and clear on‑screen menus make the instrument suitable for single‑operator handling of large parts while maintaining consistent measurement technique.
Contact Metav Werkzeuge in Emmerich for advice on integrating this Microtech Metrology micrometer into existing inspection routines or to request a tailored delivery and documentation package
Technical data
- Article number: 110181808
- GTIN: 4061905039829
- Manufacturer: Microtech Metrology
- Type: Electronic bench micrometer
- Digital display: Colour 1.5" touchscreen
- Data output: Wireless + USB
- Calibration: ISO 17025 certificate included
Core specifications
- Measuring range: 1,600–1,800 mm
- Accuracy: 0.024 mm
- Measuring faces: Ø50 mm
- Weight: 16.2 kg
- Memory capacity: 2,000 values
Features & functions
- CNC‑machined aluminium housing (solid block)
- Wireless MICROTECH instrument connection and synchronization
- Modes: Go/NoGo, Max/Min, Timer, Formula, Linear and temperature correction
- Data modes: Wireless to MDS app (Windows, Android, iOS, macOS), Wireless HID, Wireless HID+MAC, USB HID
- On‑line graphic, 2D graph, probe mode and compensation tools
- Optional MODBUS RTU (RS‑485) for industrial connections
FAQ
What is the measuring range and for which parts is it suitable?
The micrometer offers a measuring range of 1,600–1,800 mm, making it suitable for large components such as heavy castings, housings and long shafts where long‑span stiffness and repeatability are required.
Is the instrument delivered calibrated and with a certificate?
Yes. The Microtech Metrology micrometer is supplied with a calibration certificate performed to ISO 17025 (Ilac MRA), providing traceable documentation for quality systems.
Which data output options are available for process integration?
Data transfer is possible via wireless connection to the MDS app, Wireless HID modes and USB HID; an optional MODBUS RTU (RS‑485) interface is available for PLC or industrial network integration.
How much data can the device store and export?
The instrument’s memory manager can hold 2,000 values in a folder system with statistics mode; stored data can be transferred wirelessly or via USB for analysis and archiving.
What is the article number if a spare part or accessory is required?
The article number (SKU) is 110181808 for ordering accessories or referencing documentation.
