50-75mm Tube Wall Thickness Micrometer Digital Friction Thimble IP65, ISO 17025 Calibrated - Microtech Metrology
€349.00
Product information "50-75mm Tube Wall Thickness Micrometer Digital Friction Thimble IP65, ISO 17025 Calibrated - Microtech Metrology"
Take advantage of a rugged, IP65-rated digital instrument with 0.001 mm resolution and accuracy ±0.003 mm for reproducible wall‑thickness checks on tube assemblies; delivered with an ISO 17025 calibration certificate for traceable quality control. Order the CertiMet TUBE directly via Metav Werkzeuge or ask our consultants if needed.
CertiMet TUBE digital micrometer – tube wall thickness micrometer, IP65, ISO 17025 (Microtech Metrology)
The CertiMet TUBE digital micrometer is a purpose‑built instrument for measuring tube wall thickness between 50–75 mm, combining a sealed aluminium housing with a precision friction thimble for consistent results in production and inspection environments
- Digital display, mm/inch and hold function
- IP65 aluminium housing for harsh environments
- ISO 17025 calibration certificate included
- Friction thimble for reproducible measuring force
Reliable results under production conditions
The sealed IP65 housing and robust aluminium construction make the instrument suitable for workshop and site use where splash, coolant or dust are present. A clear digital display with selectable mm/inch readout and a hold function speeds up throughput at inspection stations, while the integrated origin feature simplifies repetitive checks. The combination of environmental protection and intuitive functions reduces re‑measurements and supports consistent sampling routines.
Reproducible measurement force for traceable checks
A calibrated friction thimble ensures a consistent contact force on each measurement, which is crucial when verifying thin tube walls. With a resolution of 0.001 mm and accuracy ±0.003 mm, the instrument delivers the quantitative certainty required for in‑process quality control and conformity testing. This precision helps to reduce scrap and rework by catching deviations earlier in the production cycle, turning measurement data into actionable decisions.
Traceable calibration and customisation for specialised tasks

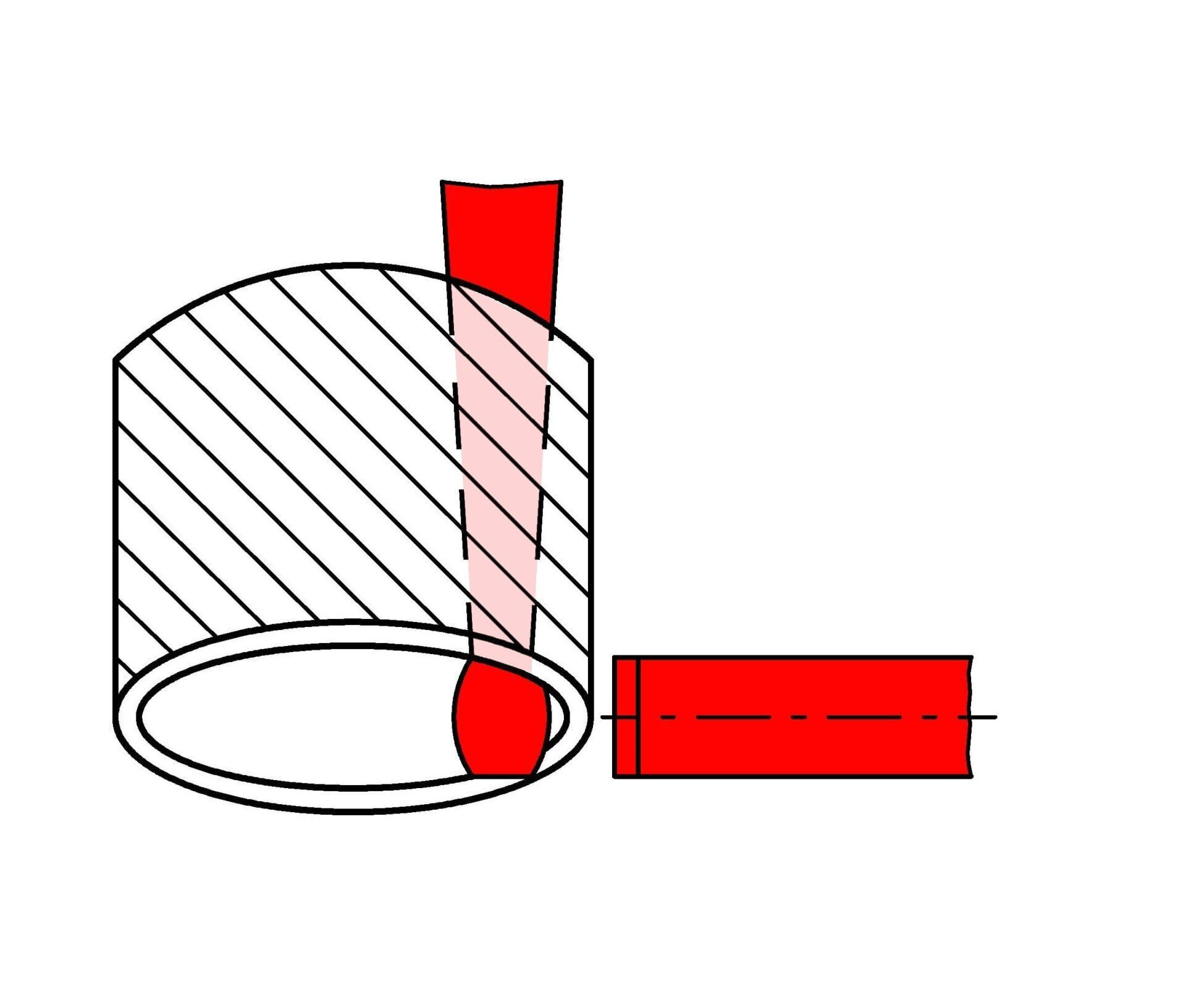

The instrument is supplied with an ISO 17025 calibration certificate (Ilac MRA), making results auditable and suitable for regulated production environments. For unusual profiles or non‑standard tube diameters a custom tube anvil can be requested to adapt the contact geometry, ensuring correct seating and repeatability on curved surfaces. These options support integration into formal quality systems and reduce uncertainty in acceptance testing.
Contact Metav Werkzeuge to discuss the Microtech Metrology CertiMet TUBE, request a customised anvil or receive the ISO 17025 calibration documentation from our Emmerich quality team
Technical data
- Article number: 110350751
- GTIN: 4061905040559
- Manufacturer: Microtech Metrology
- Category: Messschrauben
Core specifications
- Measuring range: 50–75 mm
- Resolution: 0.001 mm
- Accuracy: ±0.003 mm
- Protection class: IP65
Features & materials
- Friction thimble micrometer head
- Functions: mm/inch, origin, hold
- Aluminium housing
- Calibration: ISO 17025 certificate included
- Custom tube anvil on request
FAQ
What measuring range does the micrometer cover?
The instrument covers a measuring range of 50–75 mm, which is intended for tube wall thickness checks on small to medium‑diameter tubing.
Is a calibration certificate supplied with the device?
Yes, the micrometer is delivered with an ISO 17025 calibration certificate (Ilac MRA), providing traceability for audit‑ready quality control.
How consistent are repeated measurements?
Repeatability is supported by the friction thimble and digital readout; combined resolution of 0.001 mm and accuracy of ±0.003 mm ensures high reproducibility for serial inspections.
Can the micrometer be used in wet or dusty environments?
The IP65 rated aluminium housing protects the instrument from jets of water and ingress of dust, making it suitable for many production environments.
Is it possible to adapt the contact for specialised tube profiles?
Yes, a custom tube anvil can be supplied on request to match specific tube curvature and ensure correct seating during measurement.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
