100–125mm Micrometer Screw Gauge With Colour 2.4" Touchscreen, Wireless/USB, ISO 17025 Calibrated - Microtech Metrology
€890.00
Product information "100–125mm Micrometer Screw Gauge With Colour 2.4" Touchscreen, Wireless/USB, ISO 17025 Calibrated - Microtech Metrology"
Take advantage of a 0.005 mm accuracy, an integrated microcomputer for thread measurement and Wireless+USB data output for fast documentation; the instrument is supplied with a set of anvils and an ISO 17025 calibration certificate. Order this precision micrometer directly through Metav Werkzeuge or consult our technical advisors for application advice.

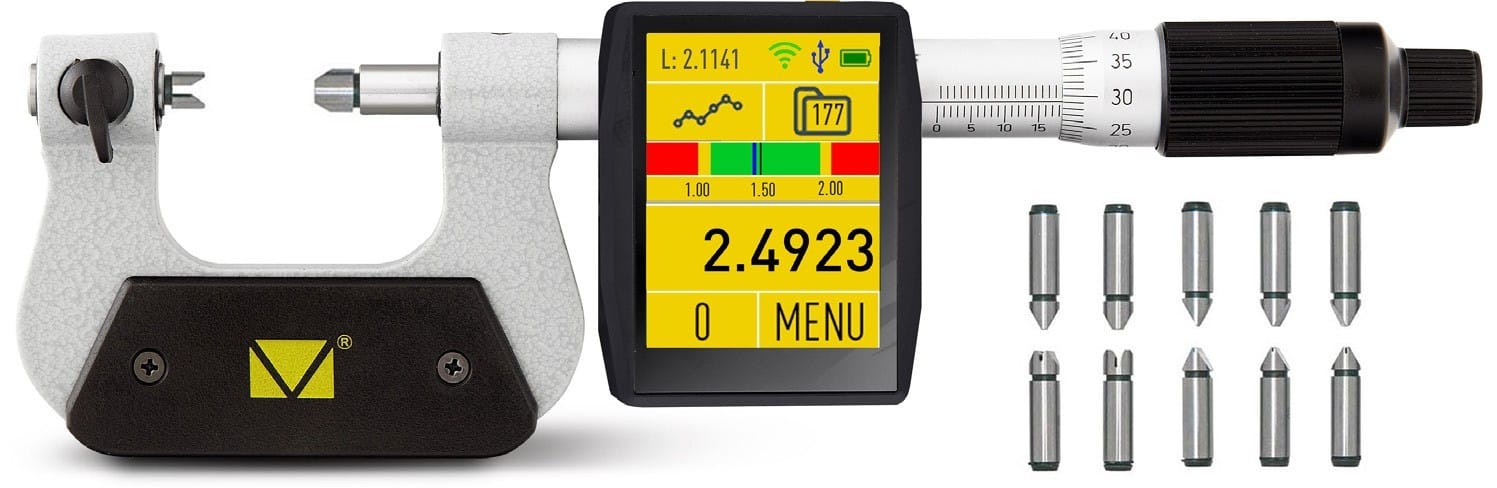

Micrometer "Metrisch 60" by Microtech Metrology — digital micrometer with touchscreen and wireless data output
The micrometer "Metrisch 60" is a metric digital micrometer equipped with an integrated microcomputer and a colour 2.4" touchscreen, designed for reliable and efficient measurement of threaded parts in workshop and production environments.
Digital 2.4" colour touchscreen display
Wireless and USB data output for traceable results
ISO 17025 calibrated with certificate included
Precise thread measurement that speeds quality control
The instrument delivers a measurement accuracy of 0.005 mm, which places it in the high‑precision class for handheld micrometres. The fixed, non-rotating spindle prevents the workpiece from turning during measurement, reducing error when assessing thread peaks or root diameters. This stability, combined with the digital readout, shortens cycle times in incoming inspection and process control. The integrated microcomputer interprets results immediately and supports consistent decision-making on the shop floor, where reproducible values are essential for downstream processes.
Seamless data capture to reduce transcription errors
Equipped with Wireless connectivity and USB output, the device allows direct transfer of measured values into SPC systems or inspection logs. The colour 2.4" touchscreen improves visibility in variable lighting and simplifies menu navigation, making data entry faster and less error-prone. For production environments that require documented traceability, the direct digital output replaces manual note-taking and accelerates reporting — a clear efficiency gain for quality teams aiming to cut administrative time while maintaining auditability.
Calibrated traceability for certified measurement tasks
This micrometer is delivered fully calibrated to ISO 17025 standards and includes the corresponding calibration certificate. The documented calibration ensures that measurements are traceable and accepted in regulated quality systems. For suppliers and subcontractors supplying parts to standards-driven industries, the included certificate removes ambiguity during audits and supports consistent measurement procedures across multiple workstations.
Practical design and included accessories for workshop use
The tool comes with a set of six anvils (0.4–7 mm), providing flexibility for a range of thread profiles without immediate additional tooling. Its metric configuration and the measuring range of 100–125 mm make it suitable for medium‑range components common in mechanical engineering and assembly. The digital format, compact touchscreen and wireless data transfer combine to deliver an easy-to-integrate measuring device that supports daily workshop routines and reduces friction between measurement and data handling.
Contact Metav Werkzeuge for tailored advice on integrating the Microtech Metrology micrometer into production lines or to request the ISO 17025 calibration documentation from Metav Werkzeuge's specialists in Emmerich
Technical data
- Article number: 110711258
- GTIN: 4061905456923
- Manufacturer: Microtech Metrology
Data
- Measuring range: 100–125 mm
- Display: Colour 2.4" touchscreen
- Accuracy: 0.005 mm
- Data output: Wireless, USB
- Type: Metrisch 60
Special features
- Digital micrometer with integrated microcomputer
- Non-rotating spindle for reliable thread measurement
- Included accessories: 6 × anvils 0.4–7 mm
- Delivered calibrated to ISO 17025 with certificate
- Metric configuration for workshop and production use
FAQ
Is the micrometer delivered with calibration documentation?
Yes. The micrometer is supplied fully calibrated to ISO 17025 and includes the calibration certificate with the delivery.
Can measurement data be exported directly to inspection software?
The micrometer supports Wireless and USB data output, enabling direct transfer of values to SPC systems or digital inspection logs.
What benefits does the non-rotating spindle provide?
A non-rotating spindle prevents workpiece rotation during contact and improves repeatability when measuring threads; the micrometer's fixed spindle is designed for this purpose.
Which measuring range does this instrument cover and what class does it fit?
The instrument covers 100–125 mm, placing it in the standard workshop range that balances reach and stiffness for general machine‑shop and assembly tasks.
Are anvils included for different thread sizes?
Yes. The scope of delivery includes six anvils (0.4–7 mm), which allow adaptation to a variety of threaded profiles without immediate additional tooling.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
