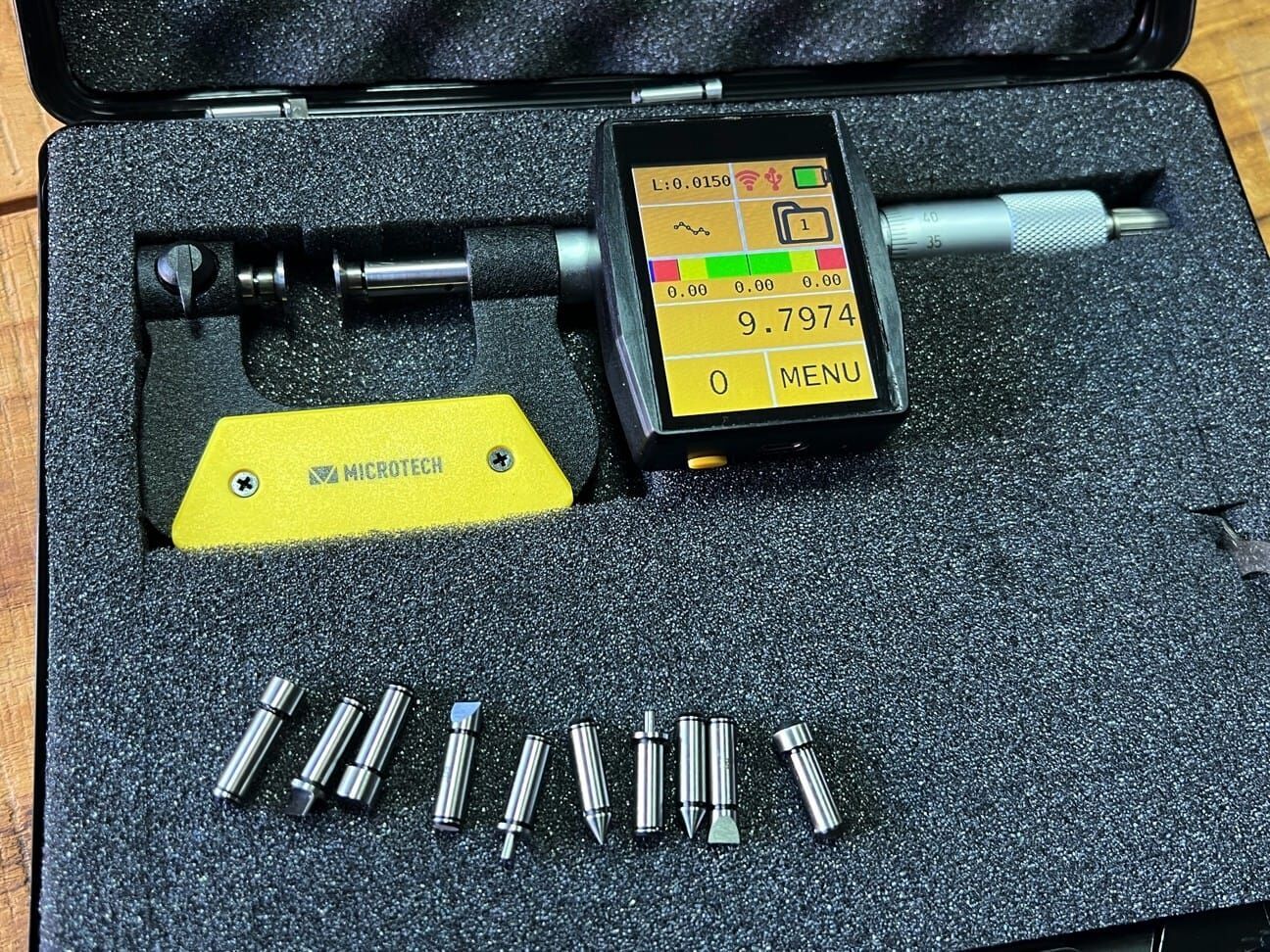

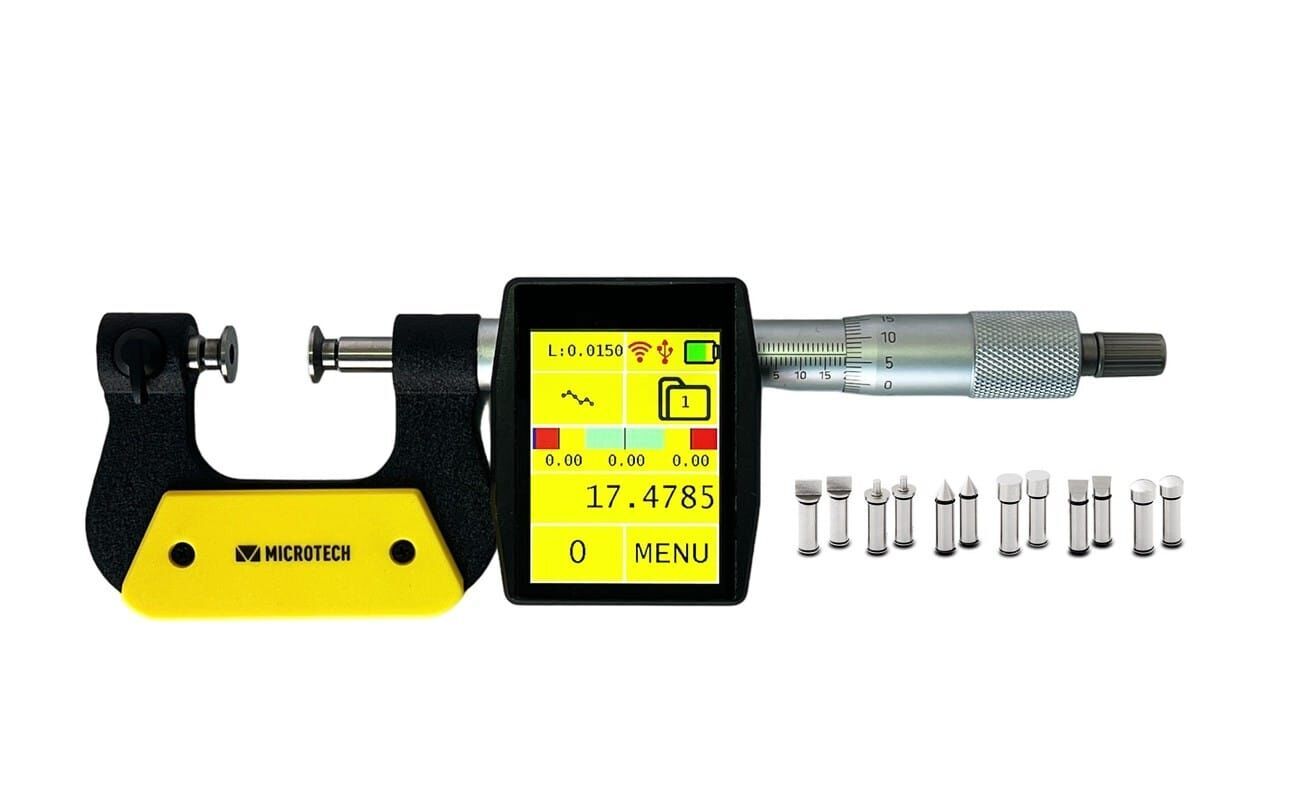

150mm Universal Test Micrometer With Seven Pairs Of Measuring Inserts, Colour Touchscreen, IP65, ISO 17025 - Microtech Metrology
€930.00
Product information "150mm Universal Test Micrometer With Seven Pairs Of Measuring Inserts, Colour Touchscreen, IP65, ISO 17025 - Microtech Metrology"
Take advantage of a fully calibrated measuring solution with a ±0.005 mm accuracy and a responsive 2.4" touchscreen for faster inspections; the integrated wireless and USB data outputs keep traceability seamless in the production flow. Order the Universal micrometer directly via Metav Werkzeuge or consult our specialists for application advice.

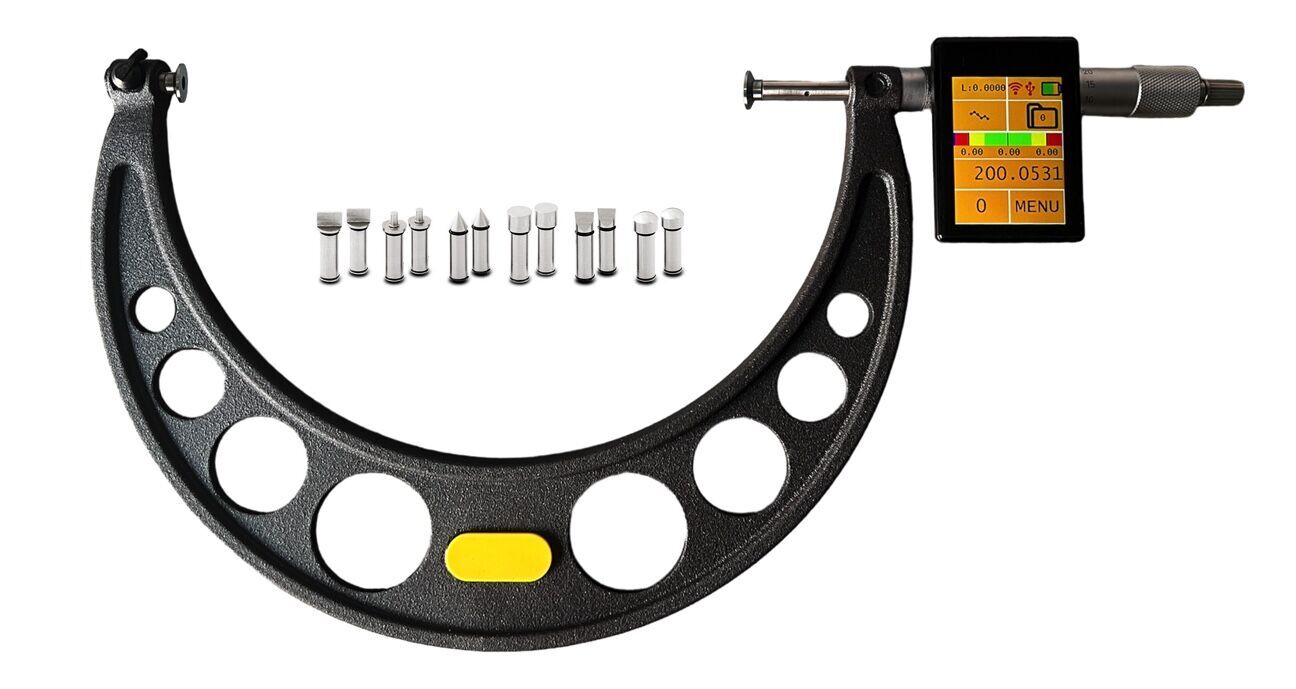

Universal micrometer — 125–150 mm, digital touch display (Microtech Metrology)
Universal micrometer designed for medium-range dimensional control in workshop and inspection environments, combining robust IP65 protection with precise digital readout and factory calibration.
- High precision ±0.005 mm accuracy
- Colour 2.4" touchscreen display
- Wireless and USB data output
- Supplied fully calibrated to ISO 17025
Precision that supports reliable quality decisions
The instrument delivers a stable measuring range of 125–150 mm with an industrial-grade accuracy of ±0.005 mm, making it suitable for routine dimensional checks and final inspection steps. A fine display reading of 0.0001 mm enables clear visualisation of incremental changes, while the included 7 pairs of measuring anvils extend the micrometer's versatility across different diameters and component geometries. These characteristics translate into fewer re-measures and faster decisions on the shop floor, reducing downtime and scrap rates by improving first-pass yield.
Streamlined data capture and process integration
Equipped with a responsive 2.4" touchscreen, the device simplifies measurement handling and settings, reducing operator time per reading. Measurement values are exported via wireless connection or USB for direct transfer into inspection software or a manufacturing execution system; this removes manual transcription errors and creates an auditable data trail. The digital interface and reliable data transfer accelerate quality documentation and support traceable batch records, which is essential for regulated production and continuous improvement initiatives.
Rugged engineering for regular workshop use
The micrometer is built to withstand daily use: the construction includes a non-rotating spindle which reduces wear on the measuring faces and improves repeatability over long service intervals. With an IP65 rating, the instrument resists dust ingress and water jets, so it performs reliably in typical machine-shop atmospheres. The robust design and clear readout make the device especially suitable where measurements must be taken at bench, lathe, or assembly station without sacrificing accuracy or requiring special handling.
Certified calibration for inspection-ready delivery
This instrument is delivered fully calibrated with an ISO 17025 calibration certificate, confirming traceability to national standards and acceptance for formal inspection procedures. The supplied certificate documents the measurement uncertainty and the conditions under which calibration was performed, enabling straightforward integration into a quality management system. For operations that require validated inspection tools on receiving or prior to production runs, the supplied calibration removes an administrative step and provides immediate confidence in measurement results.
Contact Metav Werkzeuge in Emmerich for technical guidance, delivery options and application support for the Microtech Metrology Universal micrometer (SKU 110751508)
Technical data
- SKU: 110751508
- GTIN: 4061905040382
- Manufacturer: Microtech Metrology
- Type: Universal micrometer
- Measuring range: 125–150 mm
- Accuracy: ±0.005 mm
- Reading/resolution: 0.0001 mm
- Display: Colour 2.4" touchscreen
- Data output: Wireless, USB
- Protection class: IP65

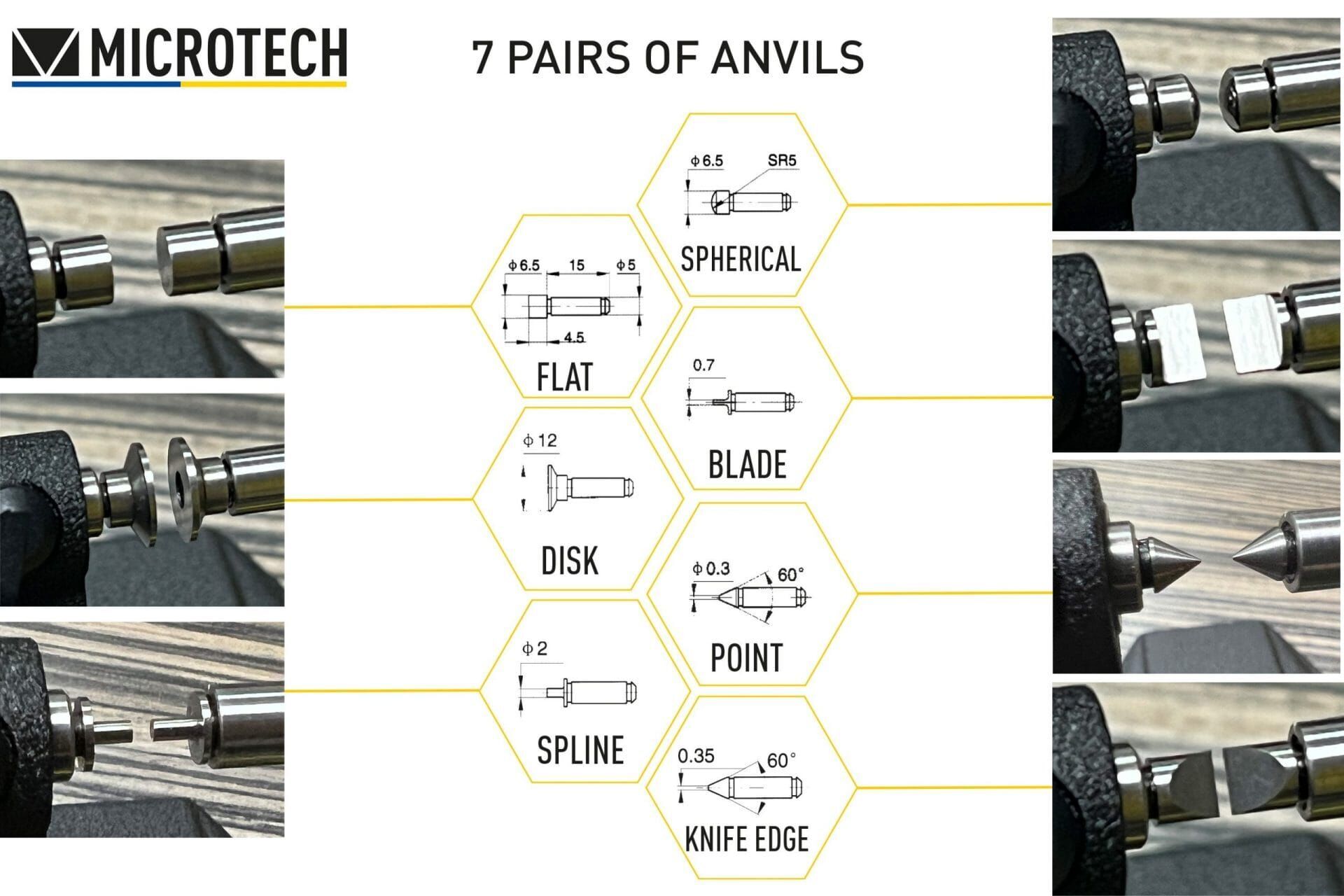

- Supplied with: 7 pairs of measuring anvils
- Calibration: ISO 17025 certificate included
Key figures
- Measuring range min: 125 mm
- Measuring range max: 150 mm
- Accuracy: 0.005 mm
- Reading/resolution: 0.0001 mm
- Display size: 2.4 inches
Features
- Digital micrometer with colour touchscreen
- Wireless and USB data transfer
- Dust- and water-resistant (IP65)
- Non-rotating spindle for improved repeatability
- Supplied calibrated with ISO 17025 certificate
- Includes 7 pairs of measuring anvils
FAQ
What measuring range does this micrometer cover?
The Universal micrometer covers a measuring range of 125–150 mm and is intended for medium-range dimensional checks in workshops and inspection labs.
Is the micrometer delivered calibrated and traceable?
Yes, the instrument is supplied fully calibrated with an ISO 17025 calibration certificate documenting traceability and measurement uncertainty.
How are measurement values exported from the device?
Measurement data can be transferred from the micrometer via wireless connection or USB to inspection software or data-collection systems.
What protection does the instrument offer against shop-floor conditions?
The micrometer carries an IP65 rating, providing protection against dust ingress and low-pressure water jets to ensure reliable operation in typical workshop environments.
Which accessories are supplied with the micrometer?
The delivery includes seven pairs of measuring anvils to cover a range of diameters and measurement situations, enabling flexible application without immediate additional tooling.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
