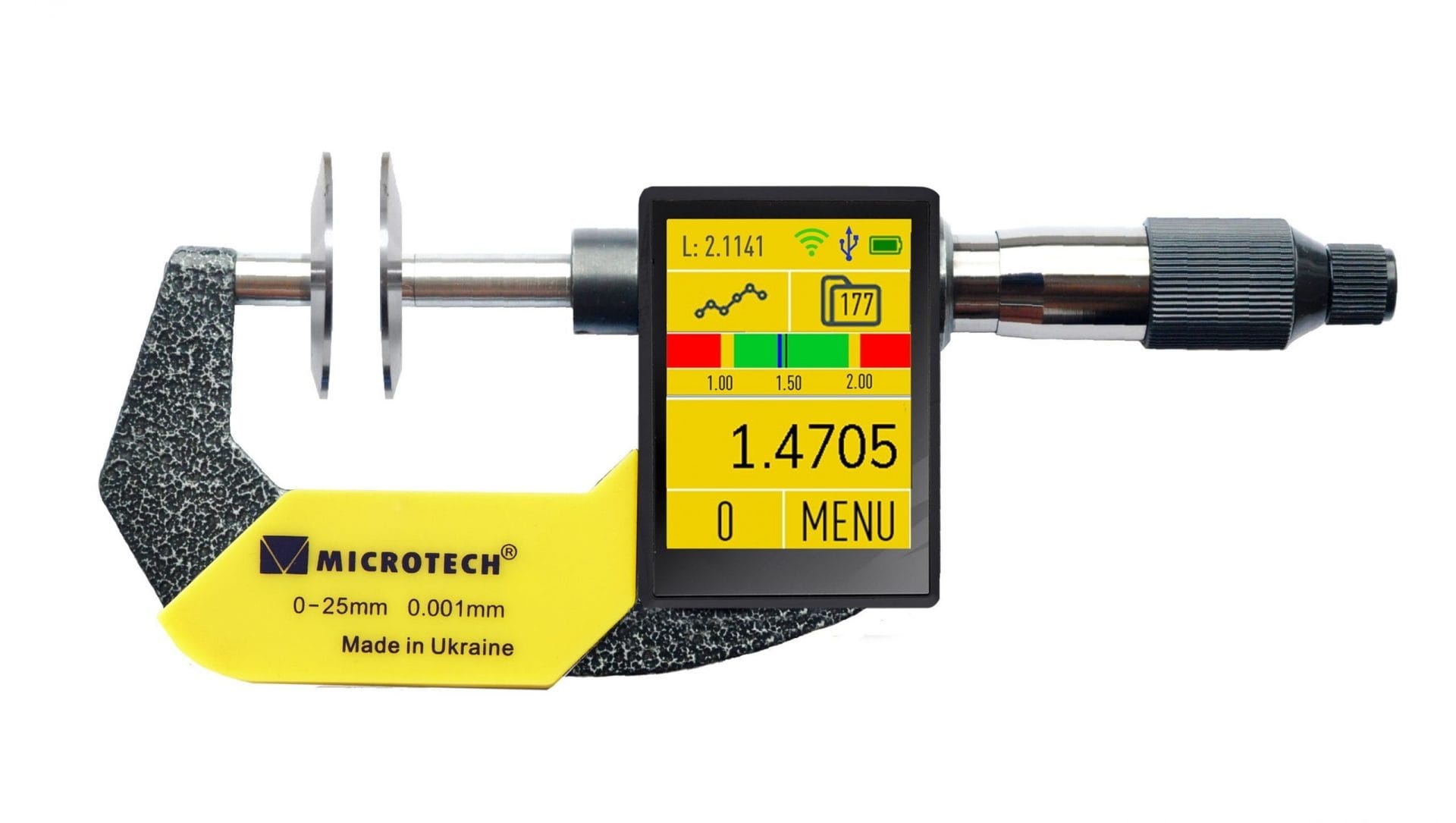

25mm Micrometer Screw With 20mm Anvil Faces, Colour 1.5" Touchscreen, IP65, ISO 17025 Calibrated - Microtech Metrology
€549.00
Product information "25mm Micrometer Screw With 20mm Anvil Faces, Colour 1.5" Touchscreen, IP65, ISO 17025 Calibrated - Microtech Metrology"
Take advantage of the combination of ISO 17025 traceable calibration, high 0.003 mm accuracy and robust IP65 protection for dependable workshop and laboratory measurements; order the micrometer directly via Metav Werkzeuge or consult the Metav team for specific integration needs.
Micrometer 0–25 mm – Digital micrometer with colour touchscreen and Wireless+USB (Microtech Metrology)
A Micrometer designed for precise small-part measurement in inspection labs and fine mechanical workshops, offering a colour touchscreen and wireless plus USB data transfer for streamlined documentation
- ISO 17025 calibration included
- 0–25 mm measuring range, 0.003 mm accuracy
- Colour 1.5" touchscreen display
- Wireless and USB data output
- IP65 dust and splash protection
High-precision measurements with traceable calibration
The device delivers a measuring range of 0–25 mm with a stated accuracy of ±0.003 mm, backed by a reading resolution of 0.0001 mm. This level of precision makes it suitable for stringent quality control tasks where repeatable results are required. Because the instrument is supplied with an ISO 17025 calibration certificate, measurement results are traceable and auditable — a practical advantage for laboratories and suppliers that must demonstrate compliance during audits or supplier evaluations. The combination of fine resolution and documented calibration reduces rework and supports reliable process decisions.
Seamless data capture for efficient workflows
Equipped with Wireless and USB data outputs plus a 1.5" colour touchscreen, the instrument simplifies measurement logging and transfer into inspection routines or statistical process control systems. Wireless transfer reduces handling time and transcription errors, while the USB interface provides a direct option for offline data retrieval. The bright touchscreen improves readability in workshop lighting and speeds up on-device menu navigation. Together these features increase throughput in both the shop and the metrology room, helping to close the gap between measurement and corrective action.
Robust, ergonomic design for repeatable handling
Built for daily use, the micrometer features a friction ratchet for consistent tip pressure and a non-rotating spindle to prevent part rotation during measurement, aiding repeatability on delicate components. The measuring faces are larger disc faces (Ø20 mm) which distribute contact force and are advantageous when checking soft or thin-walled parts. Classified within the micro measurement category (maximum range up to 100 mm), this instrument is particularly well suited to fine mechanical tasks such as watchmaking, precision fittings and small-batch components where steady handling and minimal deformation matter.
For tailored advice or to request the ISO 17025 calibration certificate and integration options for this Microtech Metrology micrometer (SKU 110780258), contact Metav Werkzeuge in Emmerich by phone or email
Technical data
- Article number: 110780258
- Brand: Microtech Metrology
- GTIN: 4061905041358
Facts
- Measuring range: 0–25 mm
- Resolution (reading): 0.0001 mm
- Accuracy: ±0.003 mm
- Display: Colour 1.5" touchscreen
Special features
- Data output: Wireless, USB
- Protection class: IP65
- Calibration: ISO 17025 certificate included
- Friction ratchet
- Non-rotating spindle
- Measuring faces: Disc Ø20 mm
FAQ
Is the micrometer supplied calibrated to a recognised standard?
Yes. The Microtech Metrology micrometer (SKU 110780258) is delivered fully calibrated to ISO 17025 and includes the calibration certificate.
What are the accuracy and resolution of this instrument?
The instrument provides an accuracy of ±0.003 mm with a reading resolution of 0.0001 mm, suitable for high-precision inspection tasks.
How can measurement data be transferred from the device?
Measurement data can be exported via Wireless transfer or USB, enabling integration with data-collection software and straightforward logging into quality systems.
Is the unit suitable for workshop use where coolant or dust is present?
The micrometer has an IP65 rating, offering protection against dust ingress and low-pressure water jets, making it resilient for typical workshop environments.
What handling features help ensure repeatable measurements?
Repeatability is supported by a friction ratchet for consistent measuring force and a non-rotating spindle, together with larger disc measuring faces (Ø20 mm) that reduce part deformation.
