50mm Bore Gauge Micrometer With Microcomputer Wireless/USB Output ISO 17025 Calibrated - Microtech Metrology
€650.00
Product information "50mm Bore Gauge Micrometer With Microcomputer Wireless/USB Output ISO 17025 Calibrated - Microtech Metrology"
Benefit from traceable calibration and integrated data transfer: ISO 17025 calibration certificate plus reliable 0.003 mm accuracy ensure measurements are ready for quality documentation and process control. The compact digital design with Wireless and USB outputs speeds up data capture and reduces transcription errors. Order the micrometer with microcomputer directly via Metav Werkzeuge or ask our consultants if needed.

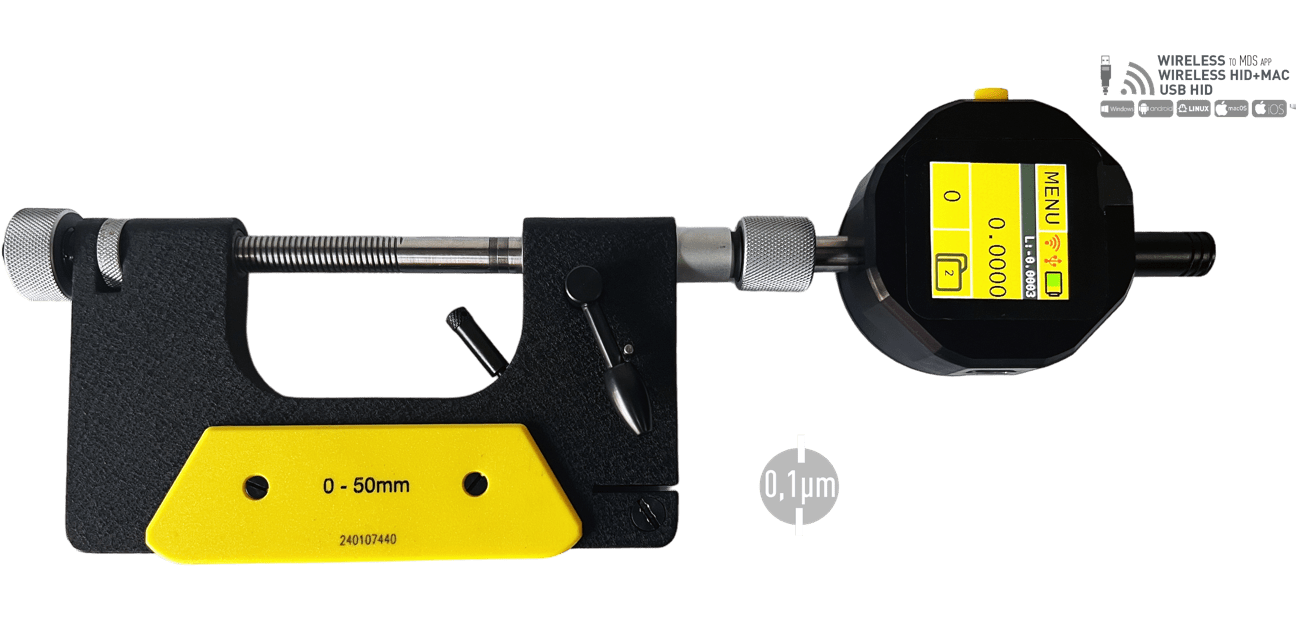

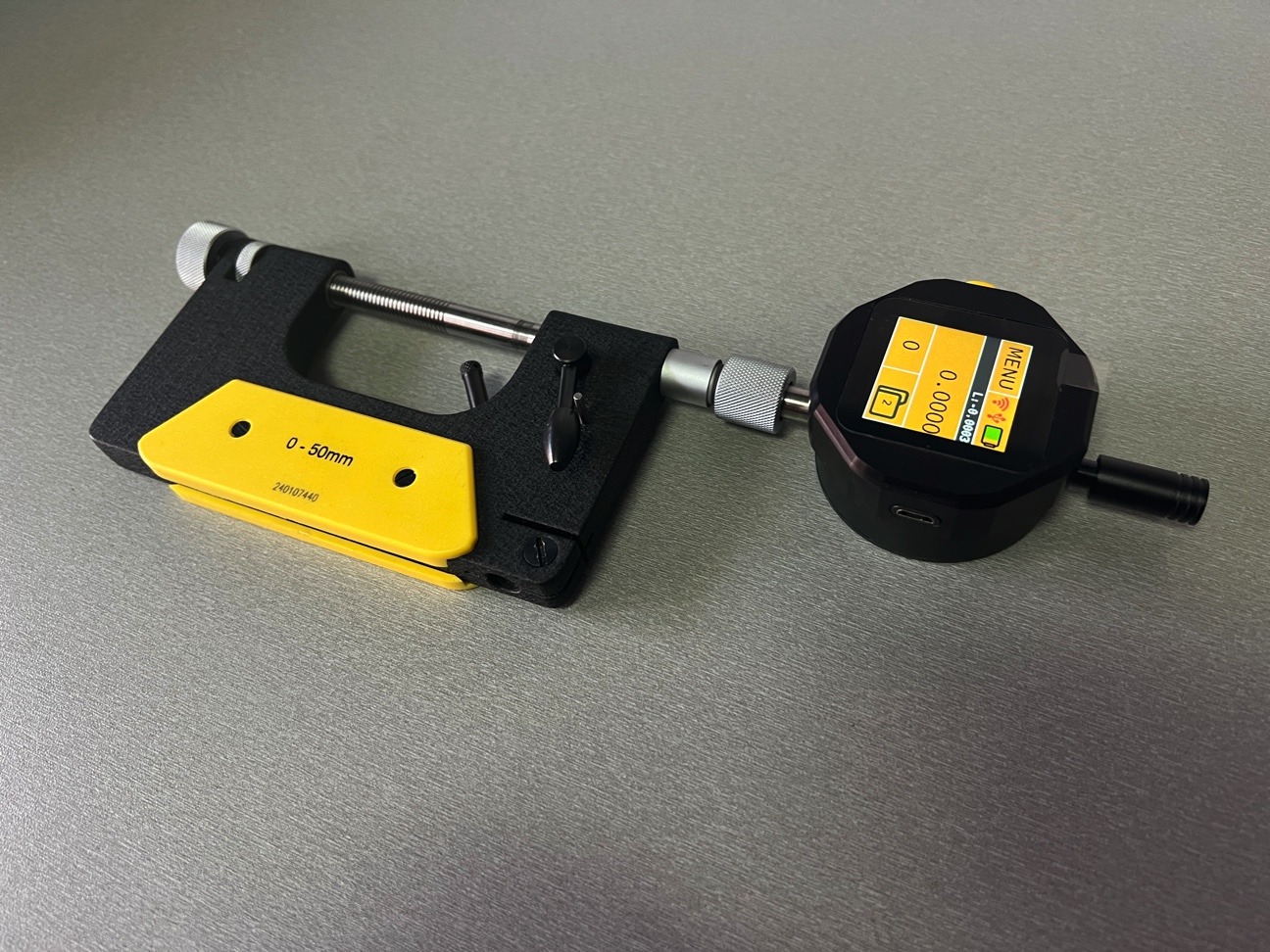

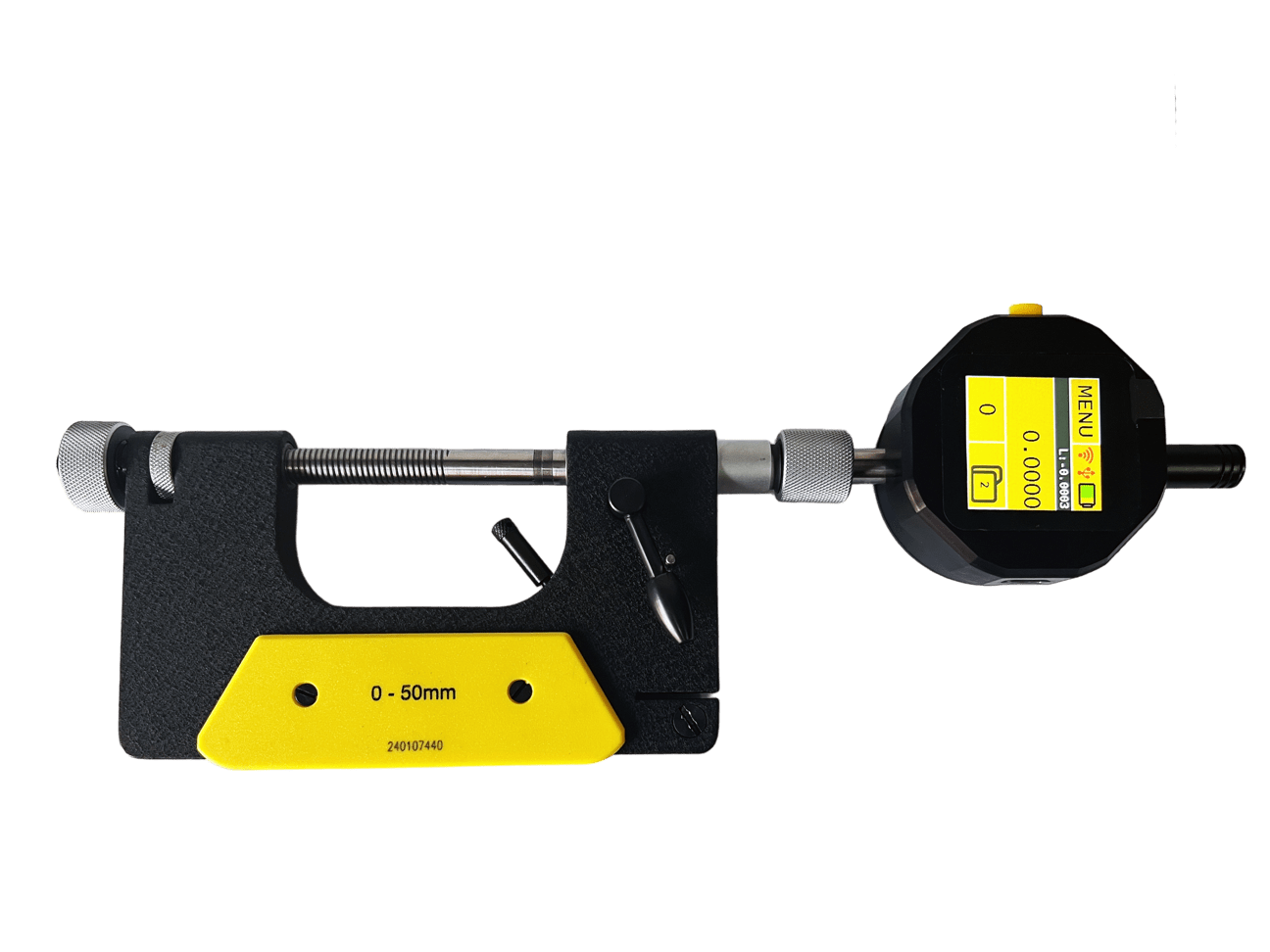

Micrometer with microcomputer — digital outside micrometer, Wireless + USB (Microtech Metrology)
The micrometer with microcomputer is a compact digital outside micrometer designed for precision workshop and laboratory measurement up to 50 mm, combining certified calibration and modern data transfer for streamlined quality workflows.
Digital display, 0.0001 mm resolution
Delivered with ISO 17025 calibration certificate
Wireless and USB data output
Measuring range 0–50 mm, Ø8 mm anvils
Traceable accuracy for production and inspection
The enclosed calibration certificate (issued to ISO 17025 standards) confirms that measurement results meet laboratory-grade traceability and can be used directly for quality records. The instrument’s stated 0.003 mm accuracy is suitable for demanding inspection tasks and provides a verifiable tolerance basis for pass/fail decisions. The combination of a high-resolution display (0.0001 mm) and a robust error specification supports reproducible checks in incoming inspection, in-process control and final inspection routines, reducing the need for repeat measurements and thereby improving throughput.
Seamless data capture and process integration
Equipped with both Wireless and USB data outputs, the device transfers readings directly into inspection software or spreadsheet workflows, eliminating manual entry and the associated error risk. The digital readout and integrated microcomputer enable straightforward interfacing with standard data loggers and SPC systems; this facilitates automated documentation and archive creation. Connectivity options support modern shop-floor layouts where remote collection and centralised data handling accelerate decision-making and corrective-action loops.
Compact form factor for fine engineering
With a measuring range of 0–50 mm, the instrument falls into the compact micrometer class suitable for precision tasks in toolmaking, small-part assembly and microengineering. The Ø8 mm measuring faces and measuring depth 18 mm are designed to offer stable contact geometry on small diameters and thin-walled components, while keeping the frame short for minimal flex. The compact footprint simplifies handling in tight fixtures or bench-top jigs and supports repeatable clamping for series checks.
Built for repeatability and workshop reliability
The digital micrometre’s solid measurement concept, combined with microcomputer control, prioritises consistent results and operator efficiency. The ready-to-use delivery, including the calibration certificate, removes setup ambiguity and accelerates integration into quality procedures. Robust data output and a clear, fast display reduce measurement cycle time and help maintain traceability; this makes the instrument a practical choice for inspection labs, maintenance departments and precision workshops looking to modernise measurement routines with minimal disruption.
For a certified measurement solution from Microtech Metrology and expert procurement support, contact Metav Werkzeuge: phone +49 2822 7131930 or e-mail info@metav-werkzeuge.com — Metav consultants will advise on integration and delivery options
Technical data
- Article number: 115050507
- GTIN: 4061905041129
- Manufacturer: Microtech Metrology
Facts
- Measuring range: 0–50 mm
- Accuracy: 0.003 mm
- Display resolution: 0.0001 mm
- Measuring faces: Ø8 mm
- Measuring depth: 18 mm
Special features
- Digital readout with integrated microcomputer
- Wireless + USB data output
- Delivered with ISO 17025 calibration certificate
- eClass: 21170328
- ETIM: EC003590
FAQ
Is the device supplied calibrated and with a certificate?
Yes. The micrometer from Microtech Metrology is delivered fully calibrated and includes an ISO 17025 calibration certificate suitable for laboratory documentation.
What data interfaces are available for integration?
Readings can be exported via Wireless or USB; the digital output supports connection to standard inspection software and data loggers for automated documentation.
What measurement range and contact geometry does it offer?
Measurement is 0–50 mm with Ø8 mm measuring faces and a measuring depth of 18 mm, making it suitable for small to medium precision components.
Can this instrument be used for in‑process checks on production lines?
Yes. The combination of 0.003 mm accuracy, high display resolution and wireless/USB output makes it appropriate for regular in‑process verification and serial inspection tasks.
Which industries are best served by this instrument?
Applications include toolmaking, precision engineering, laboratory inspection and quality control where compact, traceable measurements up to 50 mm are required.
