10mm Dial Indicator Shockproof Waterproof With Tolerance Marks, ISO 17025 Calibrated - Microtech Metrology

Take advantage of precise 0.01 mm resolution, robust shockproof and waterproof design, and full traceability via ISO 17025 calibration for reliable small‑scale measurements; order the Microtech Dial Gauge 120120100 directly via Metav Werkzeuge or ask our consultants if needed.

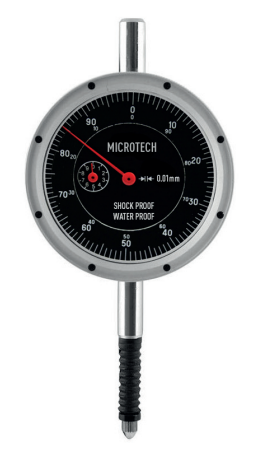

Microtech Dial Gauge 120120100 – 0–10 mm range, 0.01 mm resolution

The Microtech Dial Gauge 120120100 is an analogue, workshop‑ready measuring instrument for repeatable small‑range checks and quality control in production, inspection and assembly.

• ISO 17025 calibrated certificate included
• 0.01 mm resolution for fine readings
• Shockproof and waterproof construction
• 60 mm dial with tolerance marks

Dependable, calibrated precision for repeatable results

The main strength of this instrument is its traceable calibration: delivered fully calibrated to ISO 17025 with a certificate, it supports documented quality routines and simplifies audit preparation. With a resolution of 0.01 mm and an indicated accuracy of ±0.015 mm, the gauge offers measurable repeatability for small features and tolerance checks. The analogue display keeps readings immediate and intuitive while maintaining the professional accuracy required for workshop and light industrial metrology.

Robust design built for everyday workshop use

Mechanical reliability is prioritised: the housing is shockproof and waterproof, and the instrument includes a protective rubber sleeve and clear tolerance marks on the dial to speed visual assessment. The specified measuring force (0.6–1 N) reduces the influence of operator pressure on results, improving reproducibility across repeated measurements. This combination of mechanical protection and controlled contact force makes the gauge suited to routine use at the bench or on production lines where robust handling is common.

Simple integration into quality processes and documentation

As an analogue dial instrument, the gauge requires no digital interface yet integrates easily with inspection workflows through its certification and clear numeric identifiers. The included ISO 17025 certificate ensures immediate traceability to recognised standards, which is valuable for internal quality control and supplier qualification. For tasks that demand quick pass/fail decisions, the large 60 mm dial and marked tolerances make assessments fast and reduce measurement interpretation time.

Ideal applications and measured benefits

With a measuring range of 0–10 mm, this gauge covers fine adjustments, small component verification and comparative checks in toolmaking, watch and instrument repair, and precision assembly. The combination of high resolution, documented calibration and rugged protection supports both bench inspection and on‑shop floor control, delivering reliable data that helps reduce rework and improve throughput. The unit’s compact range and simplicity are particularly beneficial where frequent, rapid checks are required.

Contact Metav Werkzeuge in Emmerich for tailored advice and supply of the Microtech Dial Gauge 120120100, including its ISO 17025 calibration certificate and delivery options.

Technical Data

• Article number: 120120100
• Brand: Microtech Metrology
• GTIN: 4061905451768
• ETIM: EC003591
• ECLASS: 21170308

Numbers / Core Technical Data

• Measuring range: 0–10 mm
• Resolution / graduation: 0.01 mm
• Indicated accuracy: ±0.015 mm
• Measuring force: 0.6–1 N
• Dial diameter: 60 mm

Special features

• Analogue dial display
• Delivered calibrated to ISO 17025 with certificate
• Shockproof construction
• Waterproof design
• Tolerance marks on dial
• Protective rubber sleeve

FAQ

What accuracy can be expected from this dial gauge?
The Microtech Dial Gauge 120120100 indicates an accuracy of ±0.015 mm and a resolution of 0.01 mm, suitable for fine workshop checks and component inspection.

Is the gauge delivered with official calibration documentation?
Yes, the instrument is supplied fully calibrated to ISO 17025, and the calibration certificate is included for quality records and traceability.

Can this gauge withstand rough handling in a production environment?
The gauge features a shockproof and waterproof design plus a rubber protective sleeve and tolerance marks, making it suitable for routine use on the shop floor.

Which applications are best suited to the 0–10 mm measuring range?
The 0–10 mm range is ideal for small component verification, precision assembly checks, toolmaking fine adjustments and comparative measurements where frequent, rapid readings are required.

Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
