100mm Dial Indicator Digital Colour Touchscreen, Wireless/USB, IP54, ISO 17025 - Microtech Metrology
€1,270.00
Product information "100mm Dial Indicator Digital Colour Touchscreen, Wireless/USB, IP54, ISO 17025 - Microtech Metrology"
Take advantage of the combination of laboratory-grade calibration, high-resolution measurement and wireless data transfer for reproducible results in precision work; order the device directly via Metav Werkzeuge or contact our consultants for application advice.
Messuhr (Digital dial indicator) – Microtech Metrology, ISO 17025 calibrated, Wireless + USB

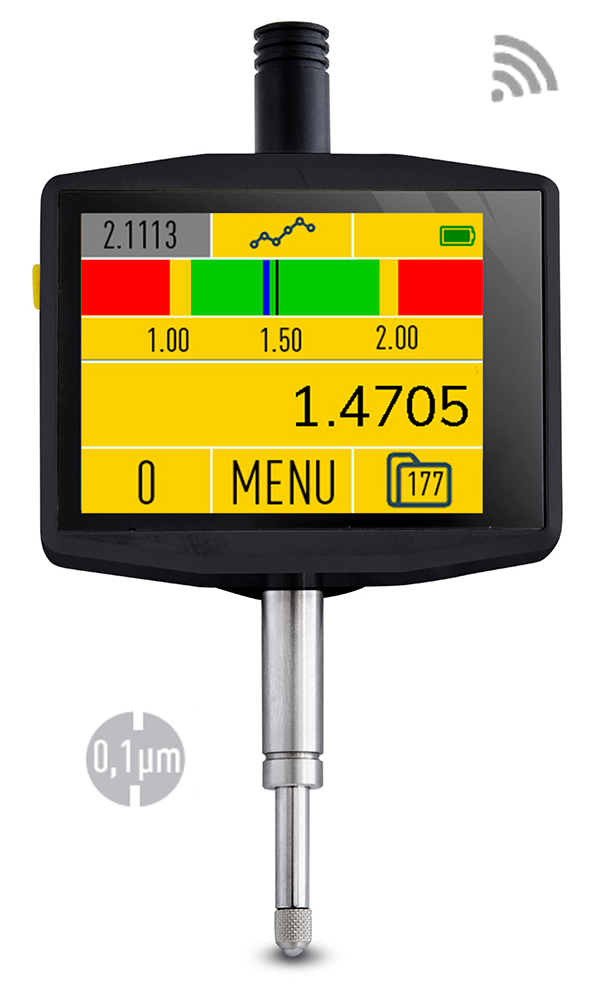

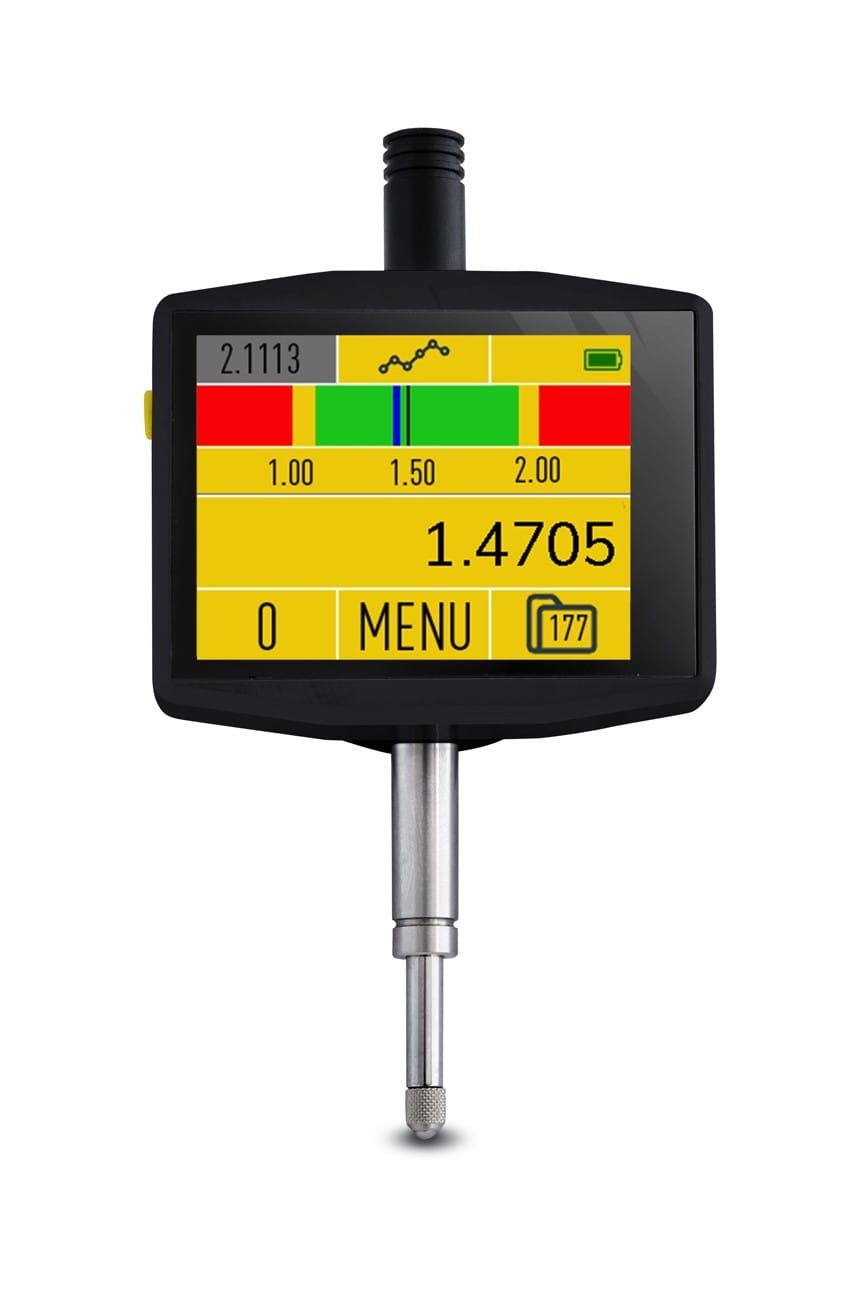

The Messuhr is a compact electronic dial indicator for fine mechanical measurement tasks, offering a 0–100 mm measuring range suited to micro‑precision checks and workshop quality control.
- ISO 17025 calibration included
- Wireless and USB data output
- Colour 2.4" touchscreen display
- IP54 protection for workshop use
High precision where micrometre accuracy matters
The indicator delivers laboratory‑grade repeatability with an accuracy of ±0.0035 mm and a resolution of 0.0005 mm, making it suitable for demanding inspection tasks. These figures mean reproducible readings for small tolerances: the accuracy defines the maximum expected deviation from the true value, while the fine resolution shows even the smallest changes on the display. The low measuring force (1.3–2.0 N) helps to reduce deflection and surface indentation during contact, which is particularly important when assessing delicate components or thin materials.
Faster data capture and fewer transcription errors

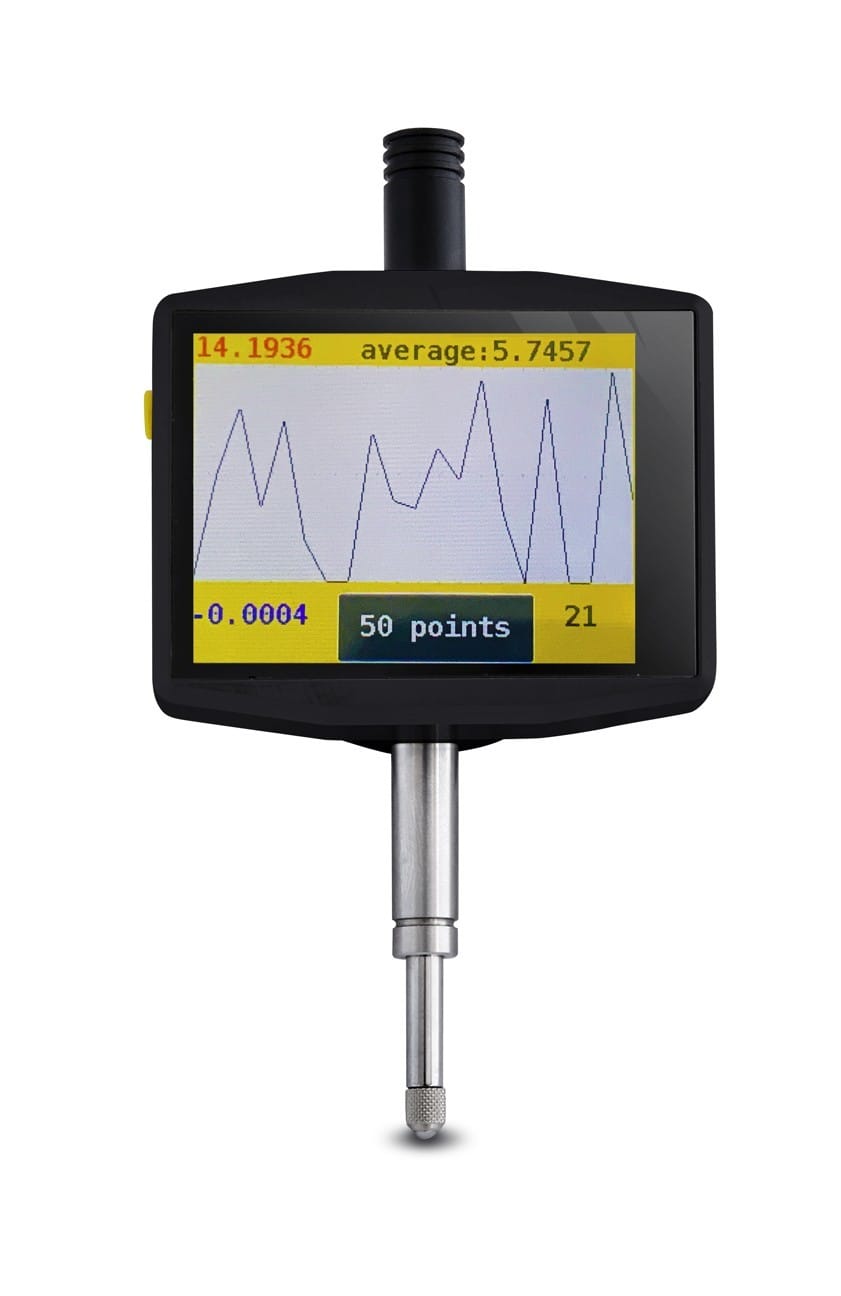

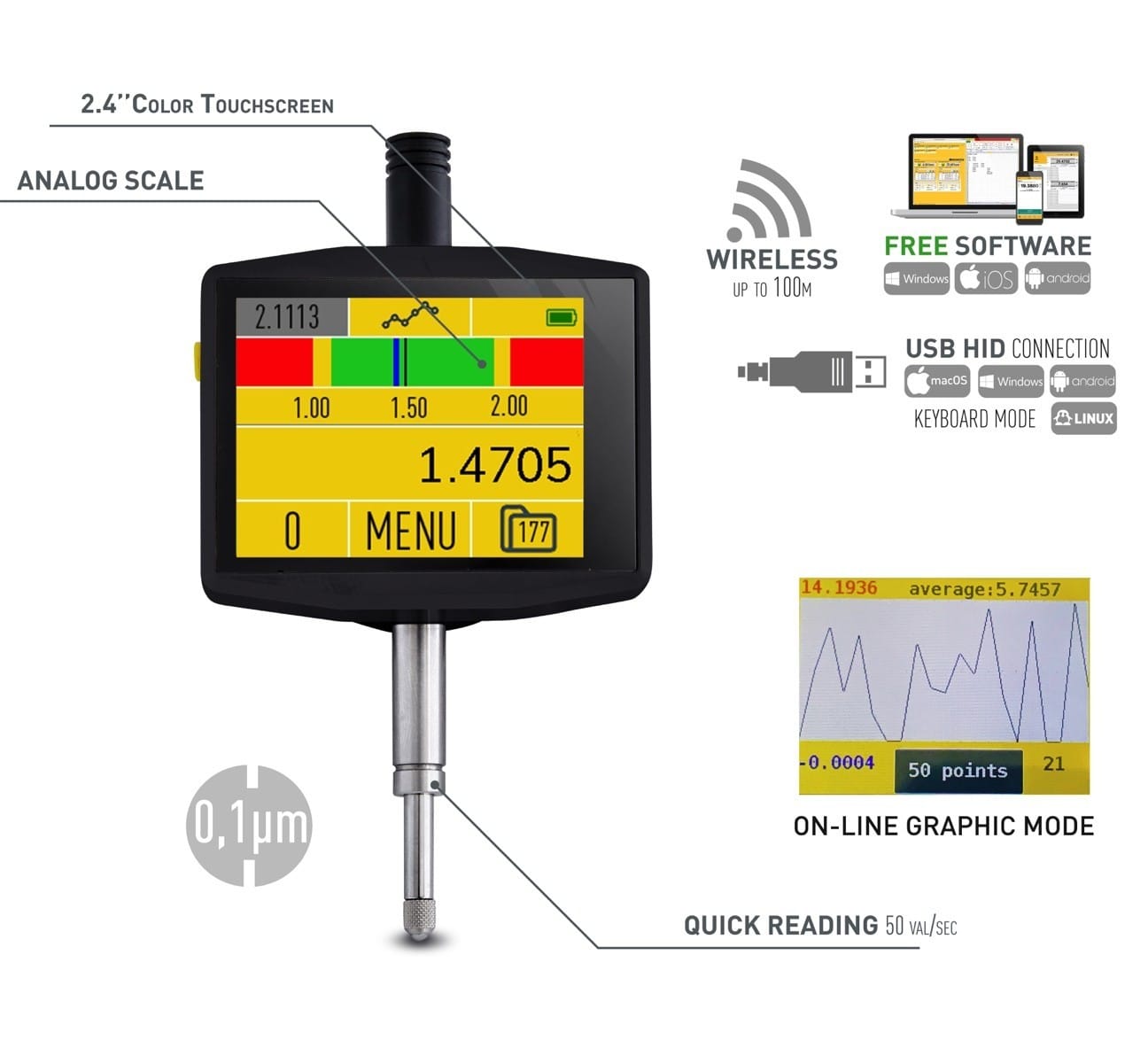

Equipped with Wireless and USB data outputs and a colour 2.4" touchscreen display, the instrument simplifies data logging and integration into existing measurement routines. Wireless transfer shortens the path from measurement to digital record, reducing manual entry and the associated risk of errors, while USB provides a reliable wired option for direct downloads. The intuitive touchscreen speeds operation and shortens setup time, so inspection throughput improves without compromising traceability.
Built and calibrated for workshop and lab use
With an IP54 rating the unit tolerates everyday workshop dust and splashes, while its compact construction targets the Mikro class (0–100 mm) for extremely compact, high‑precision tasks such as watch components, micro‑mechanical parts and quality checks on small assemblies. The device is supplied fully calibrated to ISO 17025 and includes the calibration certificate, ensuring immediate use in accredited procedures or internal quality systems without additional calibration steps.
Contact Metav Werkzeuge for a technical consultation and secure the Microtech Metrology Messuhr with ISO 17025 calibration and integrated Wireless + USB data transfer for your inspection bench
Technical Data
- Article number: 120139908
- GTIN: 4061905042102
- Manufacturer: Microtech Metrology
Facts
- Measuring range: 0–100 mm
- Resolution: 0.0005 mm
- Accuracy: ±0.0035 mm
- Display: Colour 2.4" touchscreen
- Data output: Wireless + USB
- Measuring force: 1.3–2.0 N
- Reversal span: 0.5 mm
- Protection class: IP54
- Calibration: ISO 17025 certificate included
- Digital: yes
- eClass: 21170308
- ETIM: EC003591
Special features
- Compact electronic dial indicator for micro‑precision
- Wireless data transmission and USB connection
- Colour touchscreen for quick operation
- Supplied calibrated to ISO 17025 with certificate
- Suited to workshop and laboratory environments
- Category: Messuhren
FAQ
What measuring range does this instrument cover?
The instrument covers a measuring range of 0–100 mm, placing it in the micro class for fine mechanical measurements.
Is the device supplied with a calibration certificate?
Yes, the Messuhr is delivered fully calibrated to ISO 17025 and includes the calibration certificate for immediate use in accredited processes.
How can measurement results be transferred to a computer?
Measurement data can be transferred wirelessly or via USB for straightforward logging and integration into quality documentation.
What protection does the housing provide against workshop conditions?
The housing meets IP54, offering protection against dust ingress and water splashes common in workshop settings.
What resolution and accuracy can be expected during inspection tasks?
Expect a resolution of 0.0005 mm and an accuracy of approximately ±0.0035 mm, enabling sensitive detection of small dimensional deviations.
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
