160-250mm Internal Dial Bore Gauge With Carbide Anvils 0.005mm Resolution - Microtech Metrology
€399.00
Product information "160-250mm Internal Dial Bore Gauge With Carbide Anvils 0.005mm Resolution - Microtech Metrology"
Take advantage of high repeatability, a fine 0.001 mm reading and carbide measuring faces to secure reliable internal measurements across production and inspection tasks. Order the instrument directly via Metav Werkzeuge or ask our consultants for application advice.
Internal precision gauge — analogue dial, carbide measuring faces (Microtech Metrology)
An internal precision gauge designed for precise internal measurements in workshop metrology and inspection benches
- Carbide measuring faces for long-term wear resistance
- Measuring range 160–250 mm
- Measuring depth 260 mm
- Accuracy ±0.005 mm with 0.001 mm readability
Faster, traceable measurements for routine inspection
The analogue dial and fine readability enable consistently reproducible readings that reduce rework and speed up inspection cycles. With a readability of 0.001 mm and an accuracy of ±0.005 mm, this instrument delivers the numerical certainty required for quality control in component production. The dial-driven display supports rapid interpretation during batch checks, while the robust measuring system minimises the influence of handling, helping to keep throughput steady and inspection times predictable.
Built for continuous shop use and minimal maintenance

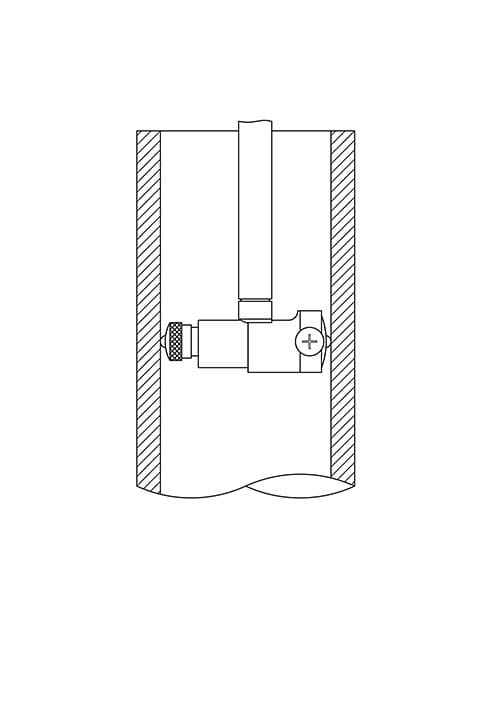

Hard-wearing carbide measuring faces resist abrasion from repeated contact with bore surfaces, preserving the original geometry and ensuring long service intervals. The gauge’s measuring range (160–250 mm) combined with a measuring depth of 260 mm covers medium-size internal diameters and deep bores commonly found in assemblies and housings. The result is a tool that stays in tolerance longer and reduces downtime attributable to instrument wear, which supports a smoother production flow and lower total cost of ownership.
Clear function and simple integration into inspection routines

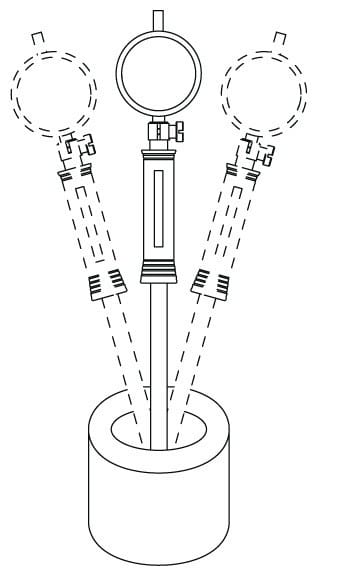

The analogue mechanism keeps operation straightforward and dependable: a mechanic or inspector can quickly learn the handling and reading technique. The instrument’s compact geometry and dial indication make it suitable for bench-mounted inspection stations as well as in‑process checks. Where traceable documentation is required, the stable measurement behaviour and documented specifications provide a solid basis for quality records and process control, aiding compliance with internal quality systems.
Precision you can rely on across applications
Intended for precision internal measurements, the instrument is suitable for general workshop metrology, prototype inspection and repair work where repeatability matters. The combination of carbide measuring faces, fine 0.001 mm reading and ±0.005 mm accuracy ensures consistent results when inspecting bores, housings and assemblies, supporting process reliability and product quality from first article inspection to final acceptance.
For purchase or technical advice on application suitability contact Metav Werkzeuge — our specialists in precision metrology will recommend the right configuration and delivery options for your workshop
Technical Data
- Article number: 132250800
- GTIN: 4061905453731
- Manufacturer: Microtech Metrology
Facts
- Measuring range: 160–250 mm
- Measuring depth: 260 mm
- Readability: 0.001 mm
- Accuracy: ±0.005 mm
- Analogue dial indication
Materials & special features
- Carbide measuring faces
- Analogue fine indicator
- Category: Precision internal gauge
FAQ
What measuring range does the instrument cover?
The internal precision gauge from Microtech Metrology (SKU 132250800) covers a measuring range of 160–250 mm.
How deep can the gauge measure?
The instrument features a measuring depth of 260 mm, allowing measurements into relatively deep bores and recesses.
What accuracy and resolution can be expected?
Specified accuracy is ±0.005 mm with a reading resolution of 0.001 mm for fine differentiation during inspections.
Are the measuring faces suitable for frequent shop use?
Yes, the gauge is equipped with carbide measuring faces, which provide high wear resistance and durability under repeated contact.
Is calibration to ISO 17025 indicated for this instrument?
The product data does not indicate an ISO 17025 calibration; calibration status is not specified in the provided information
Manufacturer / Responsible: Microtech, Nizhneyurkovska str., 45a, 04080 Kyiv, Ukraine, tool@microtech.tools
