60kg Stainless Steel Load Cell Three-Point, IP68, C3 Class, 1–2 mV/V - KERN

Combining IP68 ingress protection, OIML C3 accuracy and a stainless steel enclosure, the CR.60-3P1 delivers reliable weighing results in harsh industrial settings and low-temperature environments. Its nominal output of 1–2 mV/V and 60 kg capacity support precise signal processing for commercial and in-plant scales. Order the (CR.60-3P1) directly via (Metav Werkzeuge) or ask our consultants if needed.

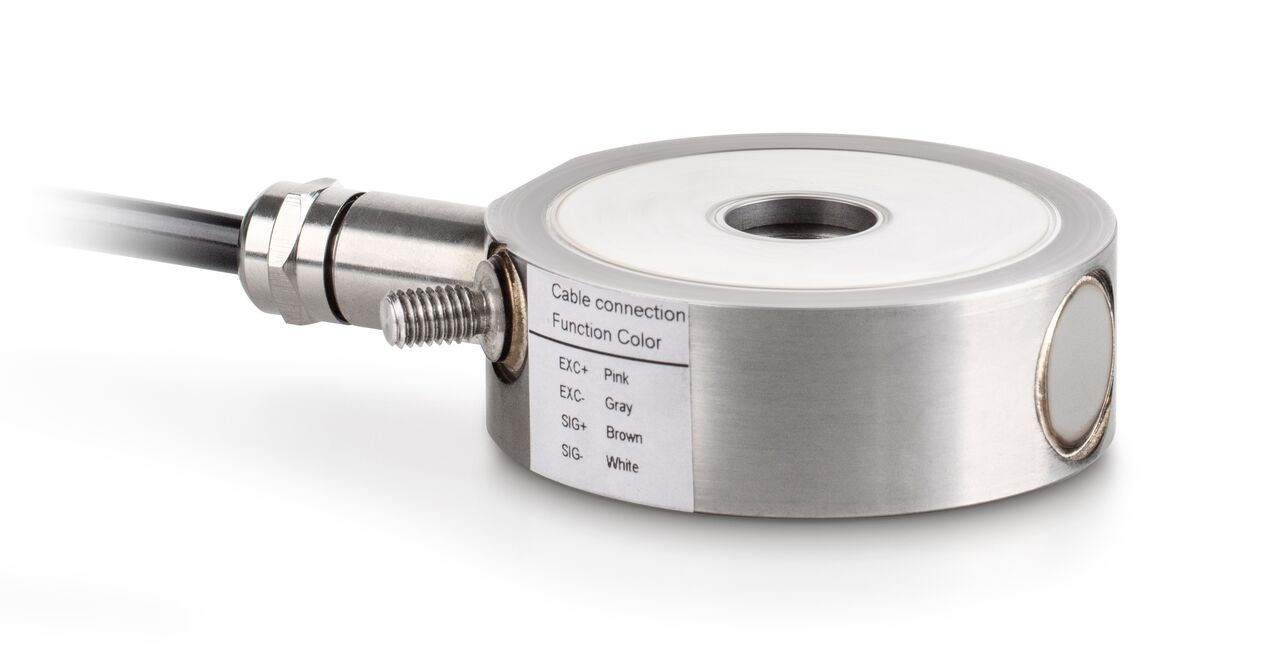

CR.60-3P1 stainless-steel load cell by KERN — IP68 protected, OIML C3, 60 kg

The CR.60-3P1 is a compact stainless-steel load cell suited for industrial and commercial weighing modules, designed for environments that demand corrosion resistance and stable metrological performance.

• IP68 protection for harsh environments
• Stainless steel construction for corrosion resistance
• OIML C3 accuracy class
• Wide operating temperature -50°C to 70°C

Built for reliable industrial weighing and traceable accuracy

The CR.60-3P1 offers consistent metrological performance through its OIML C3 classification, providing dependable repeatability for both commercial and in‑house measurement tasks. The rated output of 1–2 mV/V is compatible with standard analogue indicators and data acquisition systems, enabling straightforward signal amplification and calibration. As a compact weighing module, this sensor maintains stable readings under typical industrial loads while meeting recognised standards for accuracy and performance.

Integration-ready design that simplifies installation and maintenance

Constructed from stainless steel, the module resists corrosion and suits wet or chemically aggressive surroundings common in production floors. The high IP68 rating means the sensor tolerates dust ingress and immersion, reducing the need for frequent protective enclosures and lowering maintenance cycles. At approximately 0.38 kg, the unit is light enough for retrofitting into existing platforms yet robust enough for continuous operation. Compliance with EN 60529 supports planning for long-term system reliability and regulatory alignment.

Stable performance across extreme temperatures and demanding conditions

The CR.60-3P1 operates from -50°C to 70°C, allowing deployment in refrigeration, outdoor, and cold-store applications without loss of measurement integrity. The stainless-steel construction combined with the sealed design minimises drift caused by moisture and thermal stress, keeping calibration intervals predictable. For system designers and technicians, this translates into fewer interruptions and a lower total cost of ownership when the sensor is used in conveyor, bench, or platform scale integrations.

For application advice, specification matching or supply enquiries for KERN load cells, contact Metav Werkzeuge in Emmerich — info@metav-werkzeuge.com or call +49 2822 7131930; guidance and product selection assistance are available from our specialists.

Technical data

• Article number: CR.60-3P1
• Manufacturer: KERN
• GTIN: 4045761226883
• Country of origin: CN

Facts

• Capacity: 60 kg
• Nominal output: 1–2 mV/V
• Weight: 0.38 kg
• Operating temperature: -50°C to 70°C
• Protection class: IP68
• OIML class: C3

Special features

• Material: stainless steel
• Standard: EN 60529
• eClass: 27201590
• Commodity code: 84239010

FAQ

What accuracy class does this load cell offer?
The CR.60-3P1 is rated OIML C3, providing reliable accuracy suitable for many commercial and industrial weighing tasks where legal-for-trade or consistent process control is required.

Is the sensor suitable for wet or outdoor environments?
Yes, the unit’s IP68 protection and stainless-steel construction make this load cell suitable for dusty, wet or immersion-prone environments typical of outdoor installations.

Which temperature range can this load cell withstand?
The CR.60-3P1 operates reliably between -50°C and 70°C, enabling use in cold stores, refrigerated logistics and other temperature-extreme applications.

How is the electrical output specified and what does it mean for signal processing?
With a nominal output of 1–2 mV/V, the load cell provides a standard bridge voltage suitable for connection to common analogue indicators and amplifiers; proper excitation and amplification are required for optimal resolution.
