40mm Cutter Head 18 Inserts 55mm Cutting Height 32mm Shank - Teknik Makina
€350.00
Product information "40mm Cutter Head 18 Inserts 55mm Cutting Height 32mm Shank - Teknik Makina"
Benefit from precise indexable cutting and a compact Ø 40 mm body with 18 cutting edges plus a robust 32 mm shank for secure clamping; the design supports fast setup and consistent material removal. Order this solution via Metav Werkzeuge or request application advice from our technical consultants for an optimised integration into production.
Hedgehog-style indexable milling cutter HF09TM — Ø 40 mm, 18 flutes, Teknik Makina
The Hedgehog-style indexable milling cutter HF09TM is a specialised milling head for efficient peripheral and face milling applications where modular inserts are preferred over solid tools, suitable for industrial CNC and high-repeatability workshop operations.
- Indexable for APKT 1003 inserts
- Ø 40 mm cutting diameter
- 18 cutting edges for smooth stock removal
- 32 mm shank for secure clamping
High productivity through modular design and repeatable results
The modular head is engineered to combine the flexibility of indexable inserts with the stability of a solid tool body. Its geometry, featuring 18 cutting edges, delivers continuous chip engagement that reduces cycle interruptions and supports steady material removal rates. The Ø 40 mm working diameter and cutting height 55 mm provide a compact footprint while maintaining effective cutting area, making the tool suitable for series production and smaller batch runs that demand repeatability and short setup intervals. Where changeover times are critical, the insert system minimises downtime and permits on-the-fly tool maintenance.
Compatibility and quick changeover for efficient workflows
Compatibility with APKT 1003 inserts and acceptance of Korloy-produced plates ensures broad availability of grades and chipbreakers for adapting to different workpiece materials. The 32 mm shank enables secure clamping in common toolholders, limiting runout and improving finish quality. Fast and reliable fixing is supported by the specified fastening hardware (Torx M2.5x5.5, key T08), which streamlines reassembly and reduces the time required for routine servicing. These characteristics are aimed at shops that value straightforward logistics and the ability to swap cutting grades quickly.
Cutting performance and application guidance
The tool’s multiple-edge configuration is designed to spread cutting forces and heat across several teeth, which can lead to improved surface quality during light to medium depth cuts. The combination of cutter diameter, number of flutes and cutting height 55 mm is particularly well suited to operations where a balance between material removal rate and surface finish is required. For unfamiliar users, selecting insert grade and cutting data according to the workpiece material is the best practice; the modular concept permits optimisation without replacing the whole tool body.
Durability, handling and maintenance
The body’s dimensions and mass (0.873 kg) strike a balance between rigidity and manageability when fitting or removing the head. Regular inspection of insert seats and correct torqueing of the Torx screw reduces the risk of runout or insert movement. Replacement inserts are indexed quickly and repeatability is maintained when securing inserts with the specified M2.5x5.5 fastening screws and T08 key. Routine checks of clamping surfaces and light cleaning after each shift prolong service life and support consistent machining outcomes.
Where the cutter delivers most value
The head is intended for production environments and specialist workshops that prefer the cost and logistical advantages of indexable systems. Its combination of a compact Ø 40 mm tool body, multiple cutting edges and a robust 32 mm shank makes it a good match for jobs requiring repeatable results and straightforward tool maintenance. The modular approach reduces inventory complexity while enabling tailored cutting strategies through the choice of APKT 1003 insert grades.
Contact Metav Werkzeuge for a specification check and to secure the HF09TM hedge‑style indexable milling cutter for tailored machining tasks

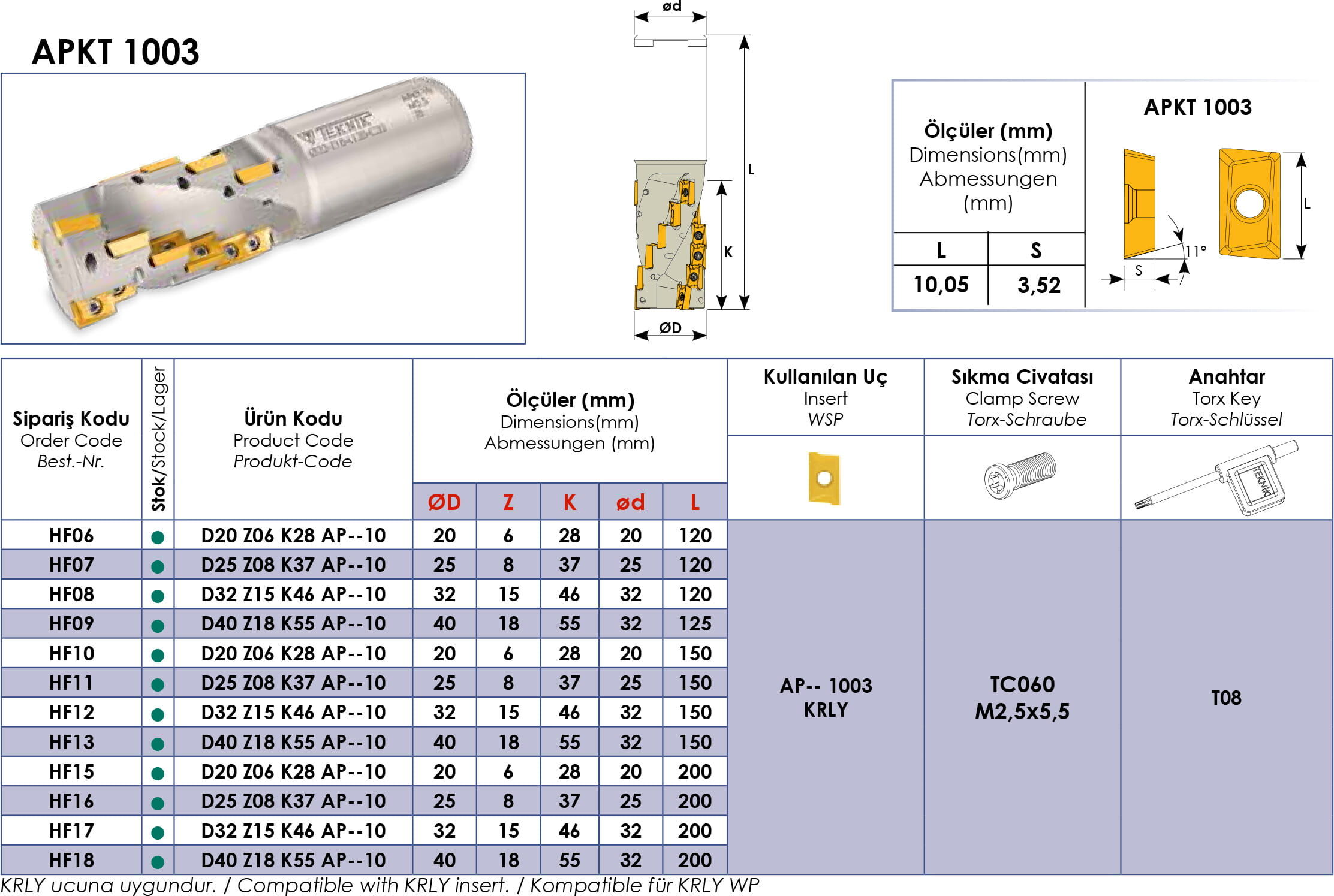

Technical Data
- Article number: HF09TM
- Manufacturer: Teknik Makina
- Product name: Hedgehog-style indexable milling cutter HF09TM

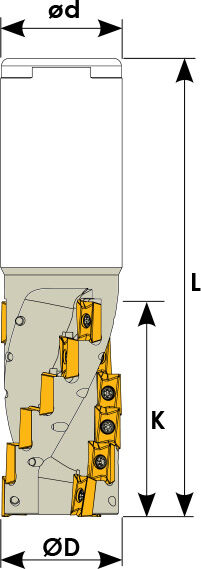

Facts
- Diameter: 40 mm
- Shank diameter: 32 mm
- Cutting height: 55 mm
- Overall length: 125 mm
- Number of cutting edges: 18
- Weight: 0.873 kg
Special features
- Compatible inserts: APKT 1003
- Compatible insert manufacturer: Korloy
- Fastening screw: M2.5x5.5 (Torx)
- Required key size: T08
- Indexable design for reduced downtime
FAQ
What workpiece materials are suitable for this cutter?
The HF09TM hedge‑style indexable milling cutter accepts APKT 1003 inserts and can be adapted to a wide range of materials by selecting the appropriate Korloy insert grade; machining strategy should follow the chosen insert specification.
How is the cutter secured in the spindle?
The tool body uses a 32 mm shank for clamping; correct holder selection and proper clamping are essential to maintain repeatability when using the HF09TM from Teknik Makina.
Which inserts are recommended for finishing applications?
For finishing, fine‑grain or polished‑surface APKT 1003 inserts from Korloy are suitable; the HF09TM design allows quick replacement to optimise surface quality without changing the body.
What maintenance routines extend tool life?
Routine inspection of insert seats, correct torque on the M2.5x5.5 Torx screws and light cleaning after use will keep the HF09TM performing reliably.
Is the tool balanced for high‑speed milling?
The modular design supports stable running when correctly clamped; balancing should be checked in high‑speed applications and adjusted according to the machine tool manufacturer’s guidance.
Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; eMail: info@metav-werkzeuge.com
| Designation: | Igelfräser |
|---|---|
| Diameter-1: | 40mm |
