110mm Grooving Blade 1.65mm Wide 21.4mm Cut Height 26mm Blade Height, for KGMN 200 - Teknik Makina

Take advantage of the combination of narrow cutting kerf and stable clamping for efficient parting operations; compatible with Korloy KGMN 200 indexable inserts. Order directly via Metav Werkzeuge or consult our specialists for application advice.

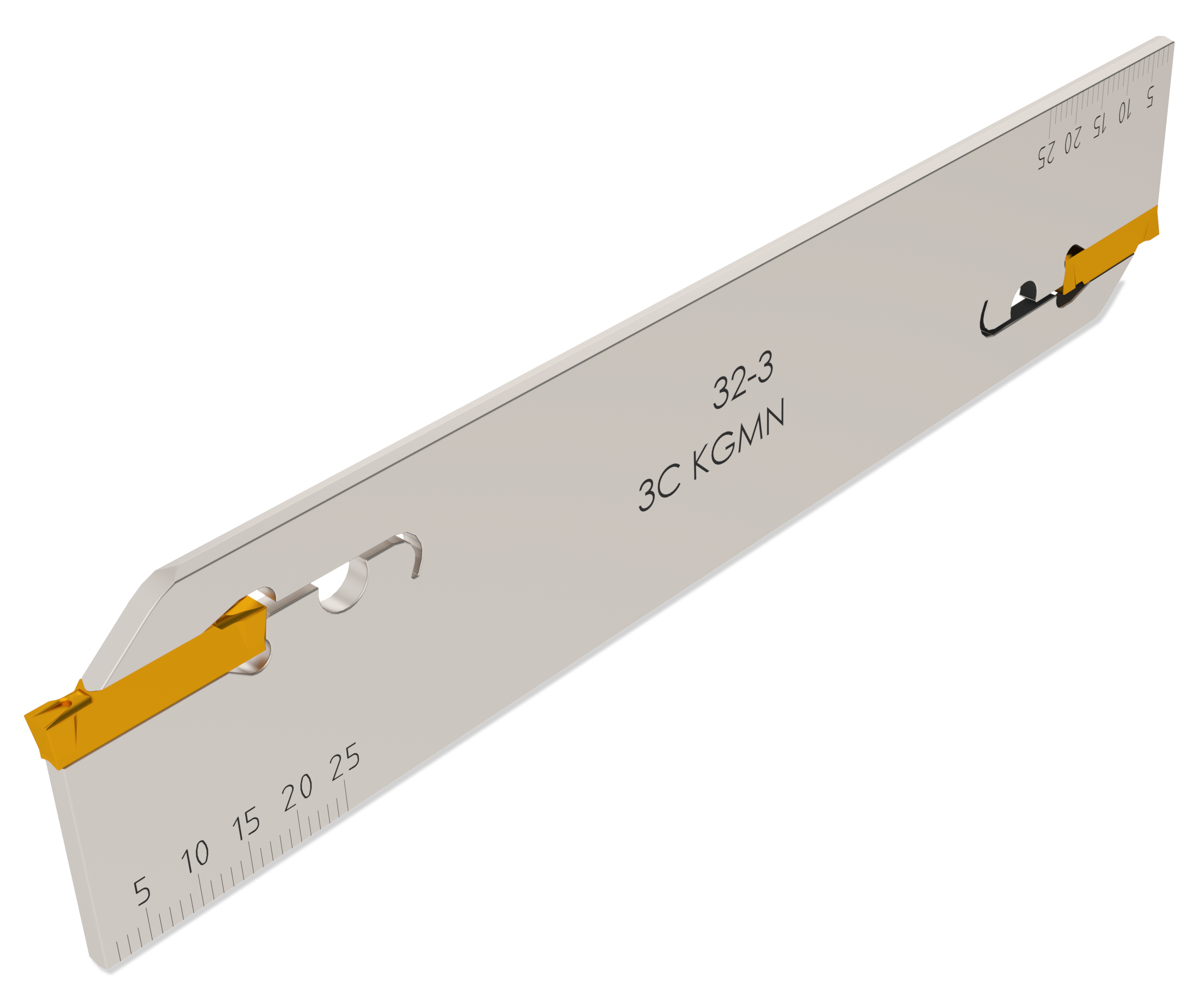

Stechschwerter — Parting blade with 1.65 mm kerf and 26 mm blade height (Teknik Makina)

The Stechschwerter is a parting blade designed for precision parting and grooving in lathe operations, compatible with KGMN 200 indexable inserts and intended for industrial turning applications

• Compatible with Korloy KGMN 200 inserts
• Precision 1.65 mm cutting width
• Blade height 26 mm for stable clamping
• 110 mm overall length for easy handling

Minimise material waste with a narrow, consistent kerf

The blade’s 1.65 mm cutting width delivers a narrow kerf that directly reduces scrap and material costs while maintaining throughput. In parting operations, a slim cutting profile means less removed material per cut and faster chip evacuation; this supports higher workpiece yields without sacrificing cycle consistency. Designed to work with KGMN 200 indexable inserts, the assembly offers the repeatability required for batch production and frequent setup changes, ensuring process reliability across shifts.

Stable clamping and consistent surface finish for dependable runs

A 26 mm blade height combined with a 21.4 mm cutting height supports secure fixation in standard clamp holders, reducing vibration and improving surface finish at the parting line. The blade’s 110 mm overall length is balanced for operator handling and machine clearance, while the holder’s maximum engagement depth of 36 mm allows for deeper parting tasks where required. These mechanical characteristics translate into fewer rejects and reduced need for secondary finishing, delivering measurable efficiency gains for job shops and production lines.

Practical economy and process advantages for metalworking shops

Using an indexable-insert system with this parting blade simplifies maintenance: worn inserts can be rotated or replaced without discarding the blade, cutting tooling expenditure over time. Compatibility with widely available Korloy inserts ensures straightforward sourcing of grades optimised for various materials. The result is a solution that supports fast first-piece approval and predictable production rhythms, helping procurement and engineering teams to plan tooling stocks with confidence.

Where this blade fits into the workflow

The component is primarily for turning operations that require precise parting off and grooving, suitable for use in workshop and light-industrial production environments. Its geometry and insert interface make it particularly useful where minimal kerf and strong clamping are priorities—for example, in bar turning, batch parting, and finish-grooving tasks. For application-specific setup or to confirm insert grade selection, Metav’s technical advisors can provide guidance tailored to the machining scenario.

Contact Metav Werkzeuge in Emmerich for application advice and to secure the Teknik Makina parting blade; email info@metav-werkzeuge.com or call +49 2822 7131930

Technical Data

• Article number: KL37TM
• Brand: Teknik Makina
• Suitable for inserts: KGMN 200
• Compatible insert manufacturer: Korloy

Facts

• Blade height: 26 mm
• Cutting height: 21.4 mm
• Cutting width: 1.65 mm
• Overall length: 110 mm
• Max holder engagement / cutting depth: 36 mm
• SKU: KL37TM

Special features

• Parting blade for indexable inserts
• Designed for stable clamping in turn-milling setups
• Reduced kerf for lower material waste

FAQ

Which inserts fit this parting blade?
The parting blade is configured for KGMN 200 indexable inserts; Korloy-specified insert grades for the KGMN 200 family are compatible with the TekniK Makina blade (SKU KL37TM).

What are the key dimensions to check before mounting?
Check the 26 mm blade height, 21.4 mm cutting height, 1.65 mm cutting width, and the 110 mm overall length to ensure correct fit in the clamping holder and adequate machine clearance.

Can this blade be used for deep parting operations?
The blade supports a holder engagement of up to 36 mm, which allows for deeper parting where the clamping system and machine setup provide sufficient rigidity.

How does the narrow kerf affect production?
A 1.65 mm kerf reduces material removal per cut, lowering scrap and improving yield; it also promotes faster chip evacuation in many parting operations.

Is the blade suitable for high-volume production?
Yes—when combined with indexable inserts such as KGMN 200, the blade offers quick insert changes and consistent repeatability, making it suitable for batch and continuous production.

Manufacturer: Teknik Cutting Tools, Buyukkayacık OSB Mah.422 Nolu Sokak.No:9, Selcuklu/KONYA/TURKEY / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; +49 2822 7131930; eMail: info@metav-werkzeuge.com
