150mm Depth Gauge With Removable Hook 100mm Reach 0.05mm Vernier DIN 862, Supplied In Case - Metav IndustryLine

Take advantage of the combination of workshop-oriented durability, precise 0.05 mm vernier reading and a protective case for reliable transport and storage; this results in consistent depth measurements and fewer interruptions on the shop floor. Order the instrument directly via Metav Werkzeuge or consult our specialists for application‑specific advice.

Depth gauge with reversible hook 150 x 100 x 0.05 mm DIN 862 — Metav IndustryLine

The Depth gauge with reversible hook 150 x 100 x 0.05 mm DIN 862 is a compact analogue depth measuring instrument for standard workshop and inspection tasks, designed for machinists, toolmakers and maintenance teams.

• 150 mm measuring range for standard workshop tasks
• 0.05 mm vernier resolution (1/20 mm) for repeatable readings
• Stainless steel body with matt‑chrome scale
• Delivered in protective case for secure transport

Precision that suits everyday production needs

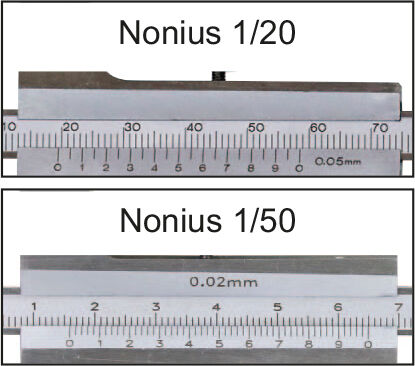

The analogue vernier is designed to provide repeatable depth readings with a resolution of 0.05 mm, achieved via the 1/20 mm vernier scale, and is manufactured to DIN 862. This level of accuracy places the instrument squarely in the workshop grade where rapid, reliable checks are needed during setup and routine quality control. The simple mechanical design keeps servicing straightforward and removes the dependency on batteries or electronics, maintaining measurement capability even in harsher production environments.

Built for robustness and practical handling

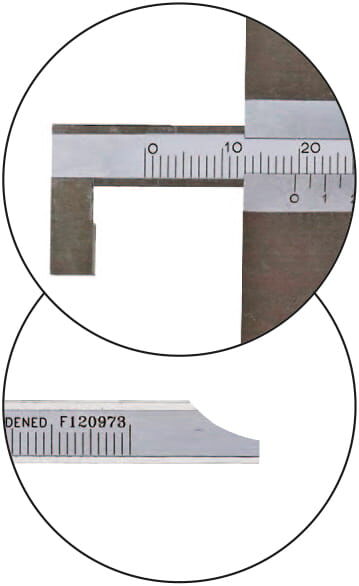

Constructed from stainless steel, with the scale and vernier finished in matt‑chrome, the gauge resists corrosion and presents a non‑reflective scale that eases reading under industrial lighting. The reversible hook allows the measuring rod to be repositioned for different edge situations, increasing application flexibility without additional accessories. Supplied in a protective case, the instrument arrives ready for secure transport and storage, reducing the risk of accidental damage between jobs or on the move.

Standard‑range classification and typical uses

With a measuring range of 150 mm, this depth gauge falls into the standard category for workshop metrology; that class covers the most common sizes used in metalworking and mechanical engineering where a balance of reach, stiffness and one‑hand operation is required. Typical applications include checking bore depths, recesses and step heights on components, as well as spot checks during machining and maintenance tasks where a reliable analogue instrument is preferable.

Readability, repeatability and workshop integration

The bottom vernier arrangement provides straightforward readings once the scale is familiar; the clear graduation and matt finish minimise parallax and glare. The instrument’s modest weight of 0.22 kg makes it easy to handle for hands‑on work without compromising stability. Backed by Metav’s supply chain and quality control in Emmerich, the depth gauge integrates into the workshop as a dependable inspection tool that supports uninterrupted production and straightforward operator training.

Contact Metav Werkzeuge today for this Metav IndustryLine depth gauge, supplied in a protective case and backed by our workshop expertise in Emmerich — our consultants will advise on fitment for specific measurement tasks.

Technical data

• SKU: M204.058
• GTIN: 4054469102665
• Designation: Depth gauge with reversible hook, 150 x 100 x 0.05 mm, DIN 862
• Manufacturer: Metav IndustryLine

Facts

• Measuring range: 150 mm
• Rod / reach: 100 mm
• Resolution: 0.05 mm
• Vernier: 1/20 mm (bottom)
• Weight: 0.22 kg

Special features

• Material: stainless steel; scale and vernier matt‑chrome plated
• Standard: DIN 862
• Delivery: protective case for transport
• Type: analogue depth gauge with reversible hook

FAQ

How precise are the readings from this depth gauge?
The depth gauge provides a vernier resolution of 0.05 mm (1/20 mm), delivering workshop‑grade precision suitable for routine depth checks and setup tasks.

Is this instrument suitable for a machine shop environment?
Yes, the Metav IndustryLine depth gauge is designed for standard workshop use with a 150 mm measuring range, corrosion‑resistant stainless steel construction and a protective case for safe transport.

Can the reversible hook be used for different measurement situations?
The reversible hook allows the measuring rod to be repositioned for varied edge and recess geometries, giving greater flexibility when measuring non‑standard or obstructed depths.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
