200mm Depth Gauge Stainless Steel Matt Chrome Scale And Vernier 1/50mm, DIN 862 In Plastic Case - Metav IndustryLine

Take advantage of the combination of stainless steel construction, DIN 862 conformity and a 200 mm measuring range for reliable workshop measurement. Order the instrument directly via Metav Werkzeuge or contact our consultants for application advice and supply.

Depth Gauge FE 200×100×0.02 mm (stainless) – analogue depth gauge, DIN 862

The Depth Gauge FE 200×100×0.02 mm is an analogue depth gauge intended for workshop and inspection tasks, providing a 200 mm measuring range and vernier resolution suited to standard machine‑shop control.

• Stainless steel construction
• 200 mm measuring range

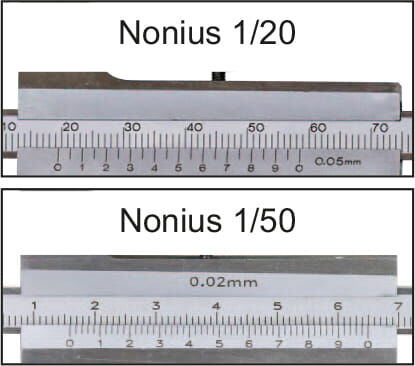

• Nonius 1/50 mm bottom vernier
• Conforms to DIN 862

Precision where repeatability counts

The instrument delivers a clear 0.02 mm reading via a 1/50 mm nonius, which corresponds to the engraved resolution on the scale. This mechanical vernier design ensures dependable, repeatable readings without reliance on batteries or electronics; the analogue principle is particularly robust in harsher shop environments. Fine‑thread fine adjustment allows controlled approach to the measuring surface, reducing user‑induced variation and helping to maintain consistent results during serial checks or tool set‑up.

Built for practical workshop use

Constructed from stainless steel, with the scale and vernier matt chrome‑plated for reduced glare and improved contrast, the instrument resists corrosion and keeps legibility over long service intervals. The 200 mm reach places this tool in the standard measuring class used across machining and metalwork: a balance of range and stiffness that suits typical jobs such as fixture inspection, component depth checks and maintenance tasks. The compact bridge dimension supports stable placement while maintaining manoeuvrability on the shop floor.

Clear standards and traceable performance

Designed to meet DIN 862, the instrument aligns with familiar workshop documentation and quality routines. The bottom vernier layout provides intuitive reading for technicians accustomed to traditional calipers and gauges; when combined with the fine adjustment, it enables controlled measurement of recessed features and stepped depths. For operations requiring digital data capture, this analogue depth gauge complements sensor systems as a rugged reference tool in quality control chains.

Choose the Metav IndustryLine depth gauge for robust, standard‑compliant depth measurement and contact Metav Werkzeuge in Emmerich for tailored advice and reliable supply

Technical Data

• Article number: M204.086
• GTIN: 4054469102757
• Norm: DIN 862
• Material: stainless steel; scale and vernier matt chrome plated
• Measuring range: 0–200 mm
• Resolution: 0.02 mm (1/50 mm)
• Fine adjustment: yes
• Instrument type: analogue (vernier)
• ECLASS: 21170349
• Tariff number: 90173000

Facts

• Measuring range max: 200 mm
• Measuring range min: 0 mm
• Bridge: 100
• Nonius: 1/50 mm (bottom)
• Analog: true

Special features

• DIN 862 compliance
• Matt chromed scale and vernier
• Fine adjustment mechanism
• Stainless steel construction
• Manufacturer: Metav IndustryLine

FAQ

How accurate is the reading on this depth gauge?
The depth gauge provides a vernier resolution of 0.02 mm (1/50 mm), delivering the repeatability expected for standard workshop metrology and aligning with DIN 862 guidance.

Is this instrument suitable for daily workshop use on oily or humid jobs?
Yes—the stainless steel construction and matt chrome finish on the scale and vernier make the instrument robust against common workshop conditions and preserve legibility.

Can the depth gauge be used for measuring recessed depths and steps?
The combination of a 200 mm measuring range and the fine‑adjustment feature allows controlled, reproducible measurement of recessed features and steps in fixtures and housings.

Which category does this instrument fall into for measuring range classification?
With a 200 mm maximum range, the tool is classified in the standard range, suitable for general machine‑shop and metalwork tasks.
