50mm Dial Indicator, 0.01mm Graduation, Rotating Bezel, Plastic Case - Metav IndustryLine

Take advantage of the combination of 0.01 mm resolution and a clear 60 mm dial for fast, reproducible shop‑floor checks; order the M208.006 Dial Indicator directly via Metav Werkzeuge or contact our consultants for detailed application advice.

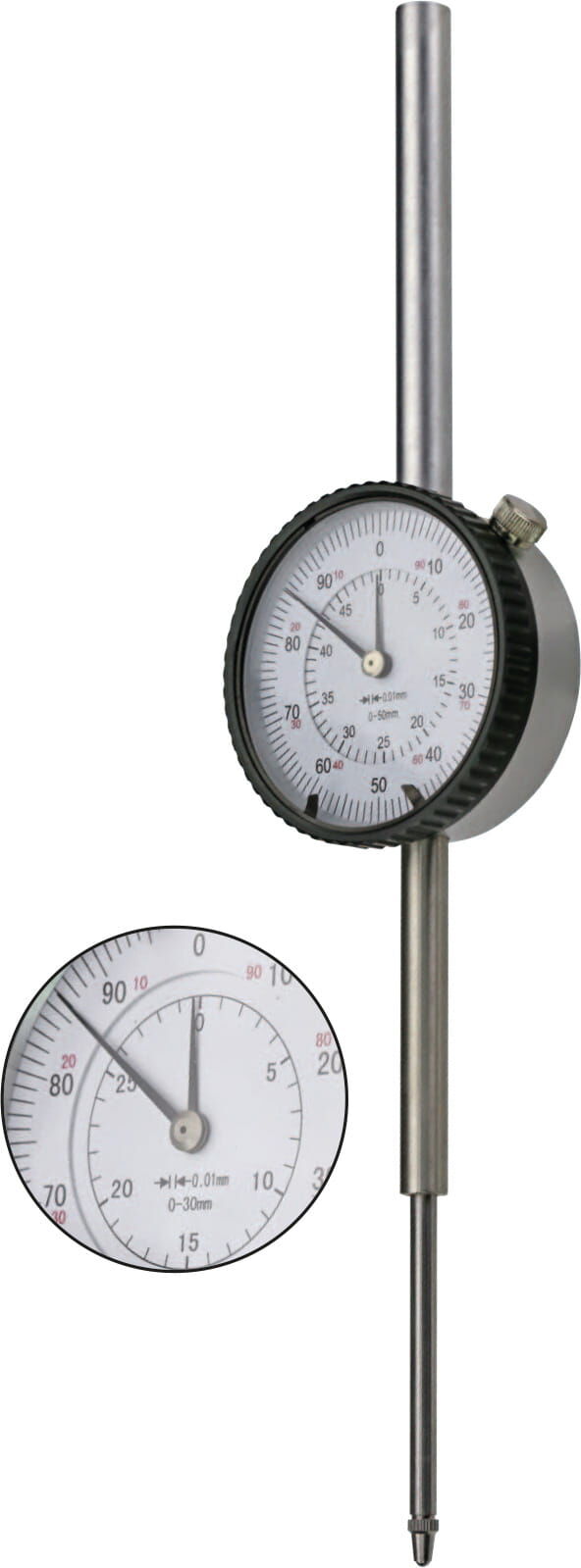

M208.006 Dial Indicator — 60 mm dial, 0.01 mm resolution

A compact, analogue dial indicator designed for precise dimensional checks and tolerance control in workshop and production environments.

• 0–50 mm measuring range
• 0.01 mm resolution for fine readings
• 60 mm easy-to-read dial
• Rotatable bezel with tolerance marks

Precise, repeatable readings to speed up quality checks

The analogue dial combines a large 60 mm dial with a fine 0.01 mm resolution, making rapid visual comparisons and go/no‑go evaluations straightforward. The instrument’s specified accuracy (0.055) and factory standard traceability ensure measurements are consistent across repetitive tasks, reducing rework and inspection time. This compact format is particularly suited to frequent in‑process control where quick decision cycles matter and where a clear, scalable indication of deviation keeps production moving.

Practical design that supports everyday workshop use

A rotatable bezel with integrated tolerance marks simplifies transfer of limit values from drawings to the measuring instrument, supporting faster set‑up and fewer interpretation errors. The robust dial diameter increases legibility under workshop lighting, while the overall form factor delivers ergonomic handling during repetitive checks. Classified within the micro measuring range, the instrument suits fine mechanical work and tasks that demand precision on small components, combining usability with technical clarity to foster operator confidence.

Versatile applications for assembly and maintenance tasks

Engineered for routine dimensional controls, the device performs reliably for shaft run‑out checks, fixture set‑up and component inspection where quick comparative readings are required. The 0–50 mm measuring range covers many common inspection tasks in metalworking and general engineering, while the large dial aids fast visual evaluation on the shop floor. Supplied to a factory standard, this dial indicator integrates smoothly into quality workflows and offers a practical balance of reach, readability and repeatability for daily use.

Contact Metav Werkzeuge for purchase and technical guidance on the M208.006 Dial Indicator — call +49 2822 7131930 or email info@metav-werkzeuge.com to discuss suitability for specific measurement tasks

Technical data

• Article number: M208.006
• GTIN: 4054469103679
• Dial diameter: 60 mm
• Measuring range: 0–50 mm
• Resolution: 0.01 mm

Facts

• Accuracy: 0.055
• Weight: 0.37 kg
• Display type: analogue
• Standard: Werksnorm
• ECLASS: 21170308
• ETIM: EC003591
• Tariff number: 90178090

Special features

• Rotatable bezel with tolerance marks
• Clear, large dial for quick reading
• Compact design for workshop usage
• Suitable for routine dimensional and run‑out checks

FAQ

How accurate is the M208.006 Dial Indicator?
The M208.006 Dial Indicator is specified with an accuracy of 0.055, offering consistent repeatability for routine inspection and shop‑floor comparisons.

What measurement range does this dial indicator cover?
This indicator covers a measuring range of 0–50 mm, making it suitable for micro‑range applications and precise checks on small components.

Is the dial easy to read under workshop conditions?
Yes, the 60 mm dial and clear graduation provide good legibility for quick visual assessments and tolerance checks.

Does the instrument include tolerance marks for go/no‑go checks?
A rotatable bezel with tolerance marks is provided to simplify transfer of limit values and speed up setup during inspection.

Can the M208.006 be used for run‑out measurements?
Its resolution and dial format make the device appropriate for run‑out checks and other comparative measurements commonly required in assembly and maintenance.
