35-50mm Internal Precision Measuring Gauge 0.01mm Resolution, Delivered in Case - Metav IndustryLine

Benefit from the combination of 0.01 mm high-resolution reading, ±0.005 mm repeatability and a 35–50 mm measuring range to ensure reliable internal bore checks; order the M208.022 directly via Metav Werkzeuge or ask our consultants if needed

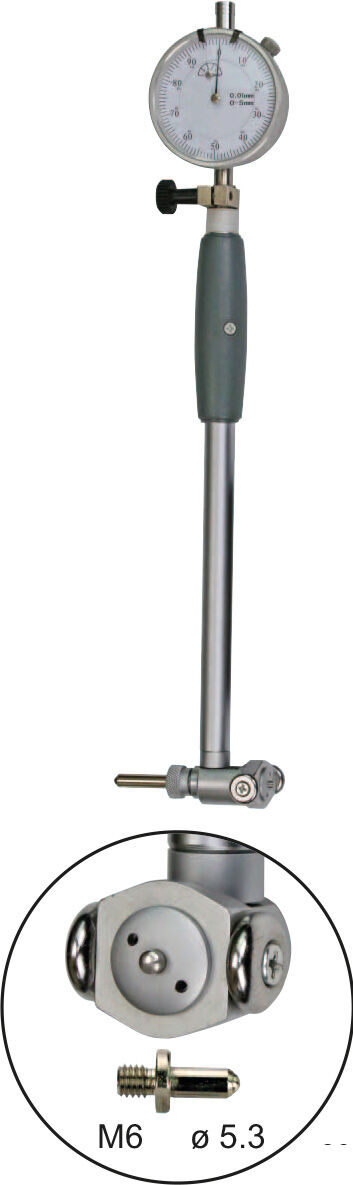

M208.022 Internal Fine Measuring Gauge — Analogue dial, 35–50 mm range, 0.01 mm resolution

The M208.022 Internal Fine Measuring Gauge is a precision analogue dial indicator designed for repeatable internal bore measurements within the 35–50 mm range, suitable for quality control tasks in workshops and production lines

• High-resolution 0.01 mm reading
• Repeatability ±0.005 mm for consistent results
• 35–50 mm range for internal bore inspection
• Supplied in a protective transport case

Reliable readings for production-grade inspection

The analogue dial with 0.01 mm graduation delivers clear, immediate readings that minimise interpretation time on the shop floor. Built for repeatability, the instrument achieves ±0.005 mm reproducibility under stable measuring conditions, which reduces rework and speeds up in-process checks. The device is aimed at routine precision control where stable, verifiable measurements are required rather than complex electronic data capture, making it a pragmatic choice for machine shops and inspection benches seeking straightforward, trustworthy measuring tools.

Robust mechanics and practical probing for consistent contact

A matt‑chrome device holder and a set of six measuring pins ensure mechanical stability during insertion and measurement. The probe arrangement includes defined probing positions (4x at nominal points), giving reproducible contact points across the specified bore segment. With a 150 mm measuring depth the gauge reaches well into recessed features without compromising stiffness, so operators can measure internal diameters and stepped bores with confidence and minimal instrument deflection.

Low-maintenance operation that supports workflow efficiency

The purely analogue design reduces dependency on batteries and electronic service while offering fast visual inspection cycles. At a weight of approximately 1.1 kg the gauge balances solidity with manoeuvrability, enabling single-person handling for most tasks. Supplied in a protective plastic or wooden transport case, the instrument is protected during storage and transfer, helping to preserve calibration and mechanical alignment over time and thus supporting uninterrupted production routines.

Practical fit for workshop quality control

Designed for internal bore verification, the gauge suits component inspection, fixture validation and incoming part checks. The compact configuration and defined measurement range make it especially helpful where repeatable contact geometry is more important than variable measuring spans—typical scenarios include checking mating bores, locating diameters for assembly and verifying turned or honed components. The straightforward reading scale keeps cycle times short while maintaining the precision required for shop-floor decisions.

Contact Metav Werkzeuge for a technical consultation on how the M208.022 fits specific inspection tasks and to arrange delivery from our Emmerich facility

Technical Data

• Article number: M208.022
• GTIN: 4061905042270
• Category: Dial gauges

Facts

• Measuring range: 35–50 mm
• Resolution: 0.01 mm
• Repeatability: 0.005 mm
• Measuring depth: 150 mm
• Weight: 1.1 kg

Special features

• Analogue dial display
• Device holder matt‑chromed
• Measuring pins: 6
• Probing positions: 4x (35 / 40 / 45 / 50 ±0.7 mm)
• Supplied in protective plastic or wooden transport case

FAQ

What measurement range does the instrument cover?
The M208.022 covers an internal measuring range of 35–50 mm with a resolution of 0.01 mm and repeatability around ±0.005 mm

How are results read and how repeatable are they?
Results are read directly from the analogue dial graduated at 0.01 mm; the construction and probe arrangement support repeatability of approximately ±0.005 mm

Is the gauge suitable for deeper bores and recessed features?
Yes — the design provides a measuring depth of 150 mm, allowing access into recessed bores while maintaining profile stability

What is included with the delivery?
Delivery includes the instrument (SKU M208.022), measuring pins and a protective transport case for safe handling and storage
