200-500mm Adjustable Internal Setting Gauge With Variable Stop, Height And Width Adjustable, Supplied In Case - Metav IndustryLine

The combination of a wide 200–500 mm setting range, variable adjustable stop, and lapped measuring jaws enables repeatable and efficient calibration of internal gauges; this reduces setup time and increases throughput. Order the device directly via Metav Werkzeuge or consult our specialists for application-specific advice.

Setting device for internal fine measuring instruments M208.032.1 — 200–500 mm adjustable calibration fixture (Metav IndustryLine)

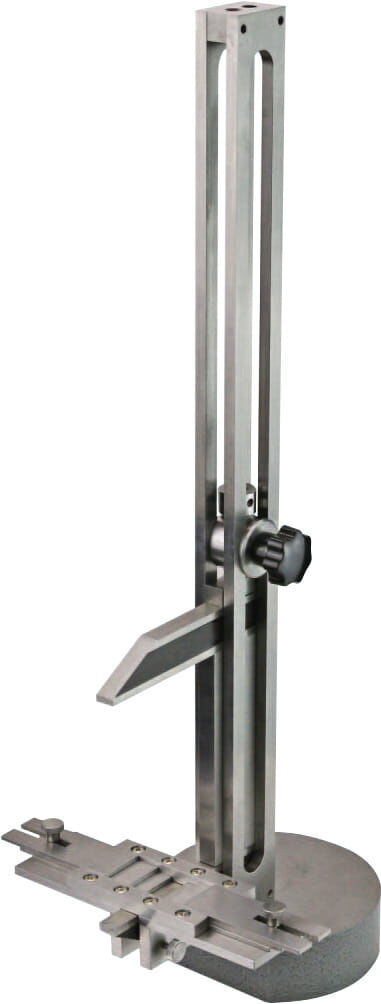

The Setting device for internal fine measuring instruments M208.032.1 is a portable calibration fixture designed to set and check internal dial and bore gauges over a 200–500 mm range, offering an adjustable stop and precise, lapped contact surfaces for consistent reference measurements.

• Range 200–500 mm for internal gauges
• Variable stop with height and width adjustment
• Lapped measuring jaws for consistent contact
• Supplied in a transport case

Reliable master for internal gauge setting that speeds workflows

This calibration fixture serves as a stable master for internal measuring instruments, providing a 200–500 mm adjustment span that covers medium to large bores often encountered in machining and assembly shops. The device reduces the number of intermediate setting steps by enabling direct reference at the required nominal dimension, which shortens cycle times and improves process consistency. The lapped measuring jaws ensure reproducible contact geometry, so each setting is based on a uniform reference surface rather than subjective feel.

Designed for reproducible adjustment with flexible stops

A key benefit is the variable stop that allows both height and width to be adapted to the gauge stem and contact geometry, enabling fine tuning without additional adapters. The unit features a defined adjustment depth of 55 mm, which keeps the contact interface stable and limits bending moments on slender gauge stems. These design choices translate into lower measurement scatter and fewer re-checks, making the fixture a practical tool for quality control benches and set-up areas.

Solid handling and transport for shop-floor use

Built for workshop environments, the device weighs approximately 6.6 kg, providing a balance between portability and mass for vibration damping during adjustment. It is supplied in a transport case, protecting the instrument and its lapped jaws during storage and transit. The included contact jaws (dimensions 9 × 19 × 100 mm) are lapped to give an even seating surface that minimises point contacts and ensures stable datum formation during each calibration run.

Practical compatibility and application scenarios

The fixture integrates easily into existing inspection routines for dial and bore gauges and pairs well with standard dial indicators and internal gauge heads. It is particularly suitable where repeatable gauge setting is required for batches of similar components, for first-article inspections, and for in-process checks. The robust contact surfaces and adjustable stop reduce the influence of operator pressure and positioning, so more consistent gauge behaviour is achieved across different users.

Discuss specification and delivery options with Metav Werkzeuge — our Metav IndustryLine consultants can advise on integration and local delivery from Emmerich

Technical data

• Article number: M208.032.1
• GTIN: 4061905045615
• Brand: Metav IndustryLine
• Category: Dial gauges / Gauge setting devices
• Weight: 6.6 kg

Facts

• Measuring range: 200–500 mm
• Adjustment depth: 55 mm
• Jaw dimensions: 9 × 19 × 100 mm

Special features

• Variable stop; height and width adjustable
• Measuring jaws lapped for uniform contact
• Supplied in a transport case for transport protection
• Designed for setting internal dial and bore gauges

FAQ

What measurement range does the fixture cover?
The fixture covers a 200–500 mm range, which is suitable for medium to large internal measurements and gauge setting tasks.

Can the device be used with standard internal dial gauges?
Yes, the setting device is designed to accommodate standard internal dial and bore gauges; the adjustable stop helps adapt to different gauge head geometries.

How are the contact surfaces prepared for accuracy?
The contact jaws are lapped, providing a consistently flat and repeatable seating surface to improve reproducibility during gauge setting.

Is the device ready for safe transport and storage?
The unit is supplied in a transport case, protecting the instrument and its jaws during storage and movement between workstations.

Which model and brand should be referenced when ordering or enquiring?
Refer to the Metav IndustryLine setting device, model M208.032.1, when contacting sales or specifying the fixture in purchase orders.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
