228mm Ø16mm Magnetic Base Stand 60kg Prismatic Base On/Off Switch, Chrome Rod Ø12x200 Cross Arm - Metav IndustryLine

Take advantage of a high‑holding magnetic base and a chrome‑plated Ø16 mm column for reliable, repeatable setups; the integrated prismatic base with on/off switch and fine adjustment ensure fast alignment and reduced rework. Order the magnetic indicator stand directly via Metav Werkzeuge or consult our specialists for application advice.

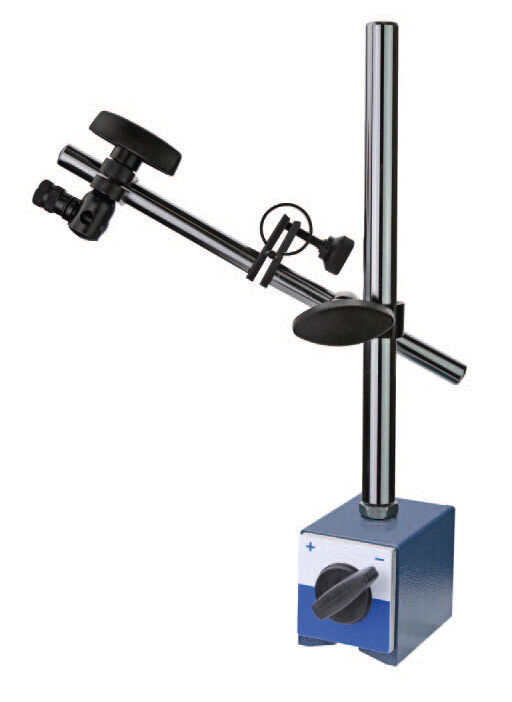

Magnetic indicator stand M208.104 — 60 kg holding force, chrome column

The Magnetic indicator stand M208.104 is a compact measuring support for workshop and inspection tasks, designed for secure mounting of indicators and fine positional control.

• 60 kg magnetic pull with on/off switch
• Prismatic base for secure positioning
• Fine-adjustment for precise alignment
• Chrome-plated Ø16 mm column, robust

Secure base for repeatable measurements

The stand features a prismatic base with an on/off switch that delivers a reliable 60 kg holding force, ensuring fixtures stay put during probing and adjustment. This strong magnetic locking reduces movement during measurement sequences, which translates directly into fewer retests and higher throughput. The prismatic contact also helps align the base on curved or irregular ferrous surfaces, so setups remain reproducible across batches.

Precise positioning with fine adjustment

Equipped with a dedicated fine adjustment, the mount allows controlled micro‑movements for accurate indicator placement without overshooting. Controlled micro‑positioning is especially useful when aligning dial indicators or test probes to narrow tolerances: the mechanism reduces the risk of damaging tips and speeds up the setup phase, providing a clear efficiency gain in repetitive inspection work.

Durable construction for everyday workshop use

The central column is chrome‑plated and measures Ø16 mm x 228 mm, providing a stiff yet manageable support that resists corrosion and wear. The cross arm (Ø12 mm x 200 mm) and M10 thread connection make the assembly straightforward and mechanically stable; the whole unit weighs 1.7 kg, combining portability with sufficient mass to avoid vibration during measurement.

Compact footprint and practical dimensions

With a total height of 281 mm and a compact base footprint, the stand fits tight benches and inspection rigs while still offering a useful reach for common machining and metrology tasks. The configuration supports quick re‑positioning between jobs, promoting an efficient workflow in both single‑piece checks and small‑batch quality control.

Contact Metav Werkzeuge in Emmerich for tailored advice on integrating this Metav IndustryLine magnetic indicator stand or to place an order from our European stock

Technical data

• Article number: M208.104
• GTIN: 4054469104553
• eClass: 21170601
• Tariff number: 90319000

Dimensions & weights

• Total height: 281 mm
• Column: Ø16 mm x 228 mm
• Cross arm: Ø12 mm x 200 mm
• Base footprint: 59 x 50 x 55 mm
• Weight: 1.7 kg
• Magnetic force: 60 kg
• Thread: M10

Materials & features

• Chrome‑plated column
• Prismatic base with on/off switch
• Fine adjustment included
• Cross arm and column for modular mounting
• Category: Magnetic stands
• SKU: M208.104

FAQ

How strong is the magnetic holding force?
The magnetic holding force is 60 kg, provided by the prismatic base on the Magnetic indicator stand M208.104.

Does the stand allow fine positional control?
Yes, the unit includes a fine adjustment mechanism that enables controlled micro‑movements for precise indicator alignment.

What are the main dimensions of the column and arm?
The column is Ø16 mm x 228 mm and the cross arm Ø12 mm x 200 mm, giving a compact but stiff measuring support.

Is the base suitable for curved or irregular ferrous surfaces?
The prismatic base design provides secure contact on a variety of ferrous surfaces, improving stability during measurement.

Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
