300mm Magnetic Base With 60kg Push‑Pull Magnetic Base, Prismatic Foot And On/Off Switch - Metav IndustryLine

Take advantage of a 60 kg magnetic hold, a prismatic base with on/off switch and a compact 300 mm overall height for reliable, repeatable indicator positioning; order the magnetic base stand directly via Metav Werkzeuge or ask our consultants if needed.

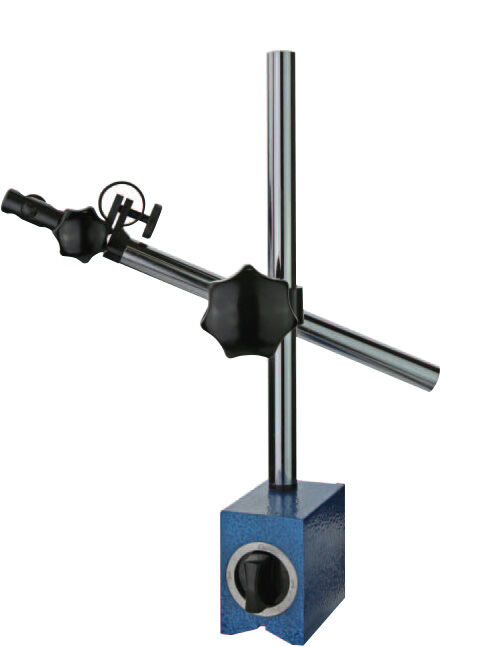

Magnetic base stand M208.106 — 60 kg magnetic base, Ø16 mm rod (Metav IndustryLine)

The M208.106 is a compact magnetic base stand designed for secure indicator mounting and precise positioning in workshop inspection and metrology tasks.

• 60 kg magnetic holding force
• Prismatic base with on/off switch
• Chrome-plated Ø16 mm rod and arm
• Compact 300 mm overall height

Consistent positioning for repeatable measurements

A 60 kg magnetic hold combined with a prismatic base reduces slippage on ferrous surfaces, giving a stable reference for comparators and dial indicators. The integrated on/off switch simplifies re‑positioning and minimises set‑up time, which improves throughput in routine inspection work. The assembly’s modest weight and compact envelope support quick transfers between bench, machine or inspection table while maintaining repeatability.

Robust construction that endures workshop use

The stand features a chrome-plated column and arm with Ø16 mm cross‑sections for torsional stiffness and long service life under daily handling. The threaded mounting interface (M10) accepts common indicator holders and adaptors, enabling secure attachment of measuring instruments. This construction provides the benefit of consistent fixturing with minimal maintenance and a durable finish that resists corrosion and wear in normal workshop environments.

Small footprint with flexible mounting options

A compact base footprint and a total height of 300 mm keep the unit suitable for tight inspection benches and machine tables where space is at a premium. The configuration yields simple vertical and lateral adjustment for indicator probes, allowing precise alignment to workpieces without elaborate setup aids. Lightweight and portable, the stand supports efficient workflow when multiple measurement points or machines must be checked in sequence.

For supply and technical advice on the Metav IndustryLine magnetic base stand M208.106, contact Metav Werkzeuge for tailored recommendations and delivery options

Technical data

• Article number: M208.106
• GTIN: 4054469104614
• ECLASS: 21170601
• Category path: Messgeräte > Magnetstative

Core dimensions

• Overall height: 300 mm
• Column: Ø 16 mm × 230 mm, M10
• Rod diameter: Ø 16 mm
• Magnet holding force: 60 kg
• Weight: 2.25 kg

Special features

• Prismatic base with on/off switch
• Chrome‑plated column and arm
• Base footprint: 55 × 46 × 70 mm, M10

FAQ

What holding force does the magnetic base provide?
The magnetic base stand M208.106 delivers a holding force of 60 kg, providing firm contact on ferrous surfaces for stable indicator mounting.

Is the column compatible with standard indicator holders?
Yes, the column and mounting use an M10 thread and Ø16 mm rod diameter, making the stand compatible with common dial indicator holders and adaptors.

How portable is the stand for workshop use?
At approximately 2.25 kg and with a compact 300 mm overall height, the M208.106 magnetic base stand is lightweight and easily moved between benches or machines.

Does the base include a switch for the magnet?
The unit is fitted with a prismatic base and an integrated on/off switch, allowing quick activation and release without auxiliary tools.

What construction ensures longevity in daily use?
The stand’s chrome‑plated column and arm with Ø16 mm profiles provide stiffness and corrosion resistance suited to workshop environments.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
