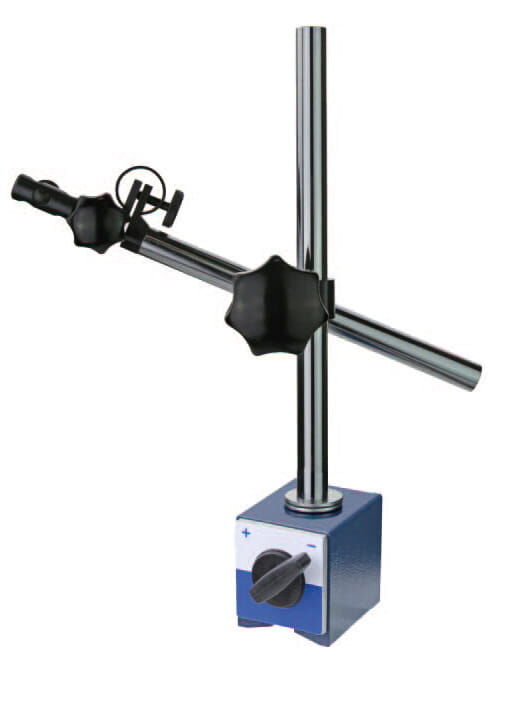

Magnetic measuring stand M208.106.1 ('Bosch') — 80 kg magnetic base, M10 mounting

Magnetic measuring stand M208.106.1 provides a compact, high‑holding solution for secure dial‑indicator and gauge positioning in workshop and inspection environments.

• 80 kg magnetic force with prismatic sole
• Chrome-plated Ø16 mm rod and cross arm
• Fine micrometre adjustment for precise set-up

Consistent clamping for repeatable measurements

The combination of a 80 kg magnetic hold and a prismatic sole ensures that comparators and indicators remain immobile during measurement cycles, reducing measurement scatter and rework. The unit’s fine adjustment mechanism enables controlled micro‑movement of the instrument mount, so small alignment steps can be made without disturbing the magnetic hold. This stability supports higher throughput in routine checks and reduces the need for repeated re-clamping.

Compact geometry that fits shop fixtures

With an overall height of 290 mm and a Ø16 mm rod length of 230 mm, the stand is designed to occupy little bench space while offering sufficient reach for common setups. The cross arm (220 mm, Ø16 mm) gives a practical offset for edge clearance and fixturing. The M10 thread at the mounting point provides a standard interface for many dial indicators and accessory adaptors, simplifying integration into existing metrology rigs.

Precision where it matters most

For inspection tasks that demand repeatability, the micrometre‑style adjustment converts coarse positioning into fine, measurable steps. The mechanism supports accurate placement of dial indicators and small probes, helping to maintain traceable measurement conditions. The robust magnetic hold in combination with controlled adjustment reduces operator influence on the measurement result, a clear rational advantage in process control.

Durable materials for everyday workshop use

The main support is chrome-plated, offering resistance to workshop wear and easy cleaning after use. At a working weight of 2.15 kg the stand balances portability with sufficient mass to damp vibration during brief probing operations. The magnetic base includes an on/off switch, enabling rapid attachment and release without compromising safety or surface contact quality.

Designed to improve inspection efficiency

By marrying secure holding power with micrometric adjustment, the stand streamlines set-up and measurement routines. Faster and more reliable positioning translates into fewer interruptions on the production floor and steadier results for quality documentation. The construction focuses on practical utility: robust mountings, standard thread interfaces and accessible adjustment controls all support measurable gains in day‑to‑day efficiency.

Trusted supply and workshop support

Metav’s IndustryLine distribution offers a consistent supply chain and quality screening for metrology tools, backed by a broad product range and longstanding customer trust. The provided documentation and clear specification make integration into inspection workflows straightforward, while the product’s compact design supports use across bench, jig and fixture applications.

Contact Metav Werkzeuge for tailored advice and assured delivery from Emmerich regarding the M208.106.1 magnetic measuring stand and its suitability for specific indicator setups

Technical data

• Article number: M208.106.1
• GTIN: 4054469104621
• Manufacturer: Metav IndustryLine
• Brand indicated: "Bosch"
• Tariff number: 90319000

Facts

• Weight: 2.15 kg
• Magnetic force: 80 kg
• Overall height: 290 mm
• Rod length: 230 mm
• Rod diameter: Ø16 mm
• Cross arm length: 220 mm
• Cross arm diameter: Ø16 mm
• Base dimensions: 70 x 50 x 55 mm
• Thread: M10

Special features

• Chrome-plated rod
• Prismatic magnetic sole with on/off switch
• Fine adjustment mechanism
• M10 mounting interface
• Category: Magnetic stands

FAQ

What holding force does the magnetic base provide?
The Magnetic measuring stand M208.106.1 features an 80 kg magnetic holding force, delivered via a prismatic sole with on/off control.

What are the rod and cross arm dimensions?
The support rod is Ø16 mm and 230 mm long, the cross arm is Ø16 mm and 220 mm long; the overall height is 290 mm.

Is a fine adjustment available for precise positioning?
Yes, the stand includes a micrometre-style fine adjustment that enables controlled, repeatable alignment of dial indicators.

What type of magnetic base and switch does the stand use?
The base is a prismatic magnetic sole equipped with an on/off switch for secure attachment and safe release.

Which mounting thread and base size are supplied?
The unit uses an M10 mounting thread and the base measures 70 x 50 x 55 mm.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
