70 x 46 x 65 mm Magnetic Base 60 kg With On/Off Switch And Prism Foot, M10 - Metav IndustryLine

Take advantage of a compact magnetic base that combines 60 kg holding force with a practical on/off switch and a standard M10 threaded stud for fast, repeatable mounting; order directly via Metav Werkzeuge or consult Metav's advisors for specification matching.

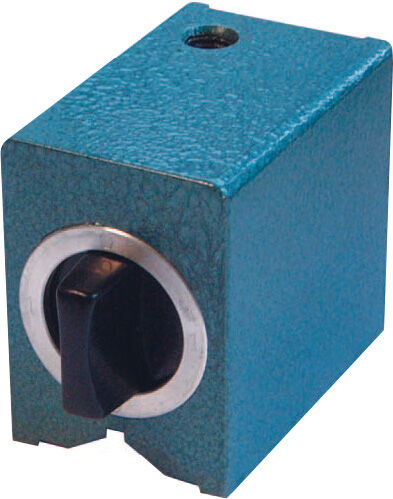

Magnet M208.106.3 — Magnetic base with 60 kg holding force and M10 thread (Bosch style)

A Magnet M208.106.3 magnetic base designed for secure positioning of dial indicators and gauge stands in workshop inspection and measurement tasks

• 60 kg holding force, reliable clamp
• On/off switch with prism base
• Standard M10 threaded stud for mounting
• Compact and portable at 1.3 kg

Fast, secure holding for measurement set-ups

The compact magnetic base delivers a 60 kg holding force, allowing rapid fixturing of dial indicators and inspection fixtures without elaborate clamps. The integrated on/off switch disengages the magnet cleanly, speeding up repositioning while preserving the magnetic surface from accidental magnetisation of delicate components. This combination reduces setup time and improves repeatability in routine measuring tasks by providing a stable reference that minimises movement during readings.

Standard mounting and compatibility for workshop rigs

Equipped with a M10 thread, the magnetic base fits common indicator holders and extension studs used across inspection benches and bench stands. The prism base aids alignment on round or irregular surfaces, so measuring tools rest more securely on shafts and cylindrical parts. At around 1.3 kg, the unit is both sturdy and portable, suitable for bench, machine‑side or mobile inspection carts where a balance of mass and manoeuvrability is required.

Practical design for inspection and everyday metrology

The device is intended as a purpose-built magnetic mounting aid for metrology work rather than a load-bearing clamp for lifting. The magnetic base is particularly useful for repetitive alignment, comparative checks and temporary fixtures during setup and test runs. Its compact footprint and switchable magnet allow quick changes between jobs, supporting efficient workflows in quality control, maintenance and assembly areas while ensuring consistent positioning for accurate measurements.

Choose the Metav IndustryLine magnetic base M208.106.3 for dependable, quick set‑up in inspection applications — contact Metav Werkzeuge for product advice or ordering at info@metav-werkzeuge.com or telephone +49 2822 7131930

Technical data

• Article number: M208.106.3
• GTIN: 4054469104645
• eCl@ss: 21170601
• Customs tariff number: 90319000
• Brand label: "Bosch" style

Facts

• Holding force: 60 kg
• Weight: 1.3 kg
• Thread: M10
• SKU: M208.106.3

Special features

• On/off switch
• Prism base for cylindrical surfaces
• Intended for magnetic stands and gauge mounting
• Compact, portable design

FAQ

What holding capacity does the magnetic base provide?
The Magnet M208.106.3 offers a holding force of 60 kg, suitable for securing dial indicators and small fixtures during inspection.

Is the base suitable for cylindrical parts and shafts?
Yes, the prism base of the Magnet M208.106.3 improves contact on round surfaces, aiding alignment on shafts and similar components.

Which mounting thread is provided for attachment to indicator holders?
The unit is supplied with an M10 threaded stud, compatible with standard indicator holders and extension studs.

How heavy is the magnetic base for transport and bench work?
The Magnet M208.106.3 weighs approximately 1.3 kg, balancing stability with portability for workshop use.

Can the magnet be switched off for safe repositioning?
The magnetic base includes an on/off switch to disengage the magnet, allowing safe and convenient repositioning without damaging sensitive parts.
