420mm Ø20 Column With 390mm Ø16 Cross Arm Chrome Rod Mounting Arm - Metav IndustryLine

Take advantage of a chrome-plated rod assembly with a Ø20 × 420 mm main shaft and a Ø16 × 390 mm cross arm to increase mounting rigidity and measurement reach; the modular design is supplied without a magnet for flexible integration into existing inspection rigs. Order directly via Metav Werkzeuge or consult the Metav specialists for compatibility advice.

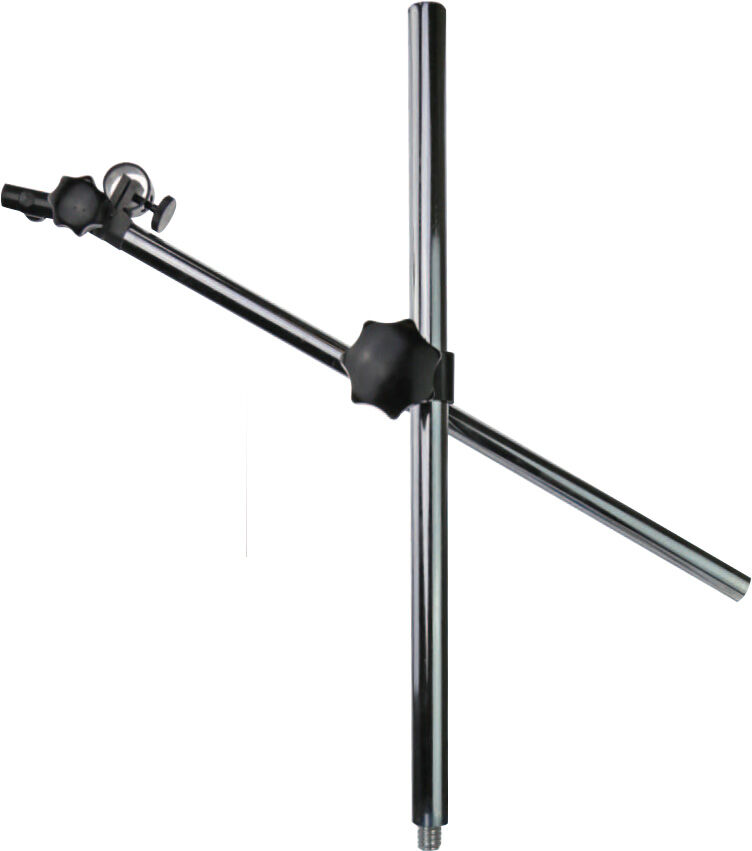

M208.106.5 measuring stand rod assembly (Ø20×420 shaft, Ø16×390 cross arm) — Metav IndustryLine

A M208.106.5 measuring stand rod assembly for precision indicator mounting and modular inspection setups, supplied without a magnet and optimised for stable, repeatable positioning.

• Chrome-plated rod for corrosion resistance
• Ø20 × 420 mm main shaft, M12 thread
• Ø16 × 390 mm cross arm for extended reach
• Supplied without magnet for modular use

Stable anchoring that reduces measurement error

The rod assembly is engineered to deliver mechanical stability where repeatable results matter. The Ø20 × 420 mm main shaft, with an M12 fixing, provides a stiff mounting column that resists twist under indicator load, while the Ø16 × 390 mm cross arm gives lateral reach without compromising support. This rigidity reduces vibration and play at the probe tip, translating into fewer re-measurements and a faster inspection loop. The chrome-plated finish also eases cleaning and resists workshop contaminants, so accuracy is maintained over time.

Faster setups through a modular, toolroom-ready layout

The arm geometry allows quick positioning of dial gauges and indicator holders across a useful working envelope. Supplied without a magnet, the assembly integrates with magnetic bases or dedicated clamps—this modular approach enables one configuration to serve multiple tasks, from bench top quality checks to on‑machine fixtures. The M12 thread at the shaft simplifies secure attachments and interchange of accessory parts, reducing setup times and improving throughput in repetitive tasks.

Durable workmanship for everyday industrial use

Finished in chrome plating, the component resists corrosion and wear encountered in daily workshop environments, supporting long service intervals and predictable performance. At approximately 1.9 kg, the assembly combines mass for steadiness with portability for flexible use across benches. As part of the Metav IndustryLine, the product benefits from a practical supply chain and quality control that aims to make precision equipment accessible to shops and maintenance departments without compromising specification or reliability.

For tailored advice on system compatibility or to reserve the Metav IndustryLine M208.106.5 measuring stand rod assembly, contact Metav Werkzeuge GmbH at info@metav-werkzeuge.com or call +49 2822 7131930 for expert guidance and prompt supply

Technical data

• SKU: M208.106.5
• GTIN: 4054469104669
• Weight: 1.9 kg
• Material: chrome-plated rod
• Tariff code: 90319000

Core dimensions

• Main shaft: Ø20 × 420 mm, M12 thread
• Cross arm: Ø16 × 390 mm
• Cross arm length: 390 mm

Features / Applications

• Supplied without magnet
• Designed for use with 208.106.4 bar
• Category: magnetic stands
• Suitable for dial gauges and indicator clamps

FAQ

Is the rod assembly compatible with magnetic bases?
The M208.106.5 measuring stand rod assembly is supplied without a magnet and is designed for modular use; it can be mounted on compatible magnetic bases or paired with the 208.106.4 bar for secure positioning.

What is the material and finish of the assembly?
The M208.106.5 features a chrome-plated rod construction, providing corrosion resistance and easy cleaning for workshop environments.

How does this assembly improve measurement stability?
With a Ø20 × 420 mm main shaft and a Ø16 × 390 mm cross arm, the M208.106.5 offers increased rigidity and reduced play at the indicator, which helps lower measurement variation and rework.

Can the assembly carry standard dial indicators and holders?
Yes; the M208.106.5 accepts common indicator clamps and dial gauges, with an M12 fixing on the main shaft for secure attachment of accessories.

Is the product delivered as a complete measuring stand?
The delivery comprises the rod assembly only (M208.106.5) and does not include a magnet or base; it is intended for integration into existing measuring stand systems.

Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
