320 mm Flexible Measuring Stand With Clamp Collet And Mechanical Central Locking, For Rods Ø35mm And Sheets Up To 30mm - Metav IndustryLine

Take advantage of rapid, repeatable set-up thanks to fine adjustment and a mechanical central clamp, combined with compatibility for 8 mm indicator stems — order directly via Metav Werkzeuge or consult our specialists for configuration advice.

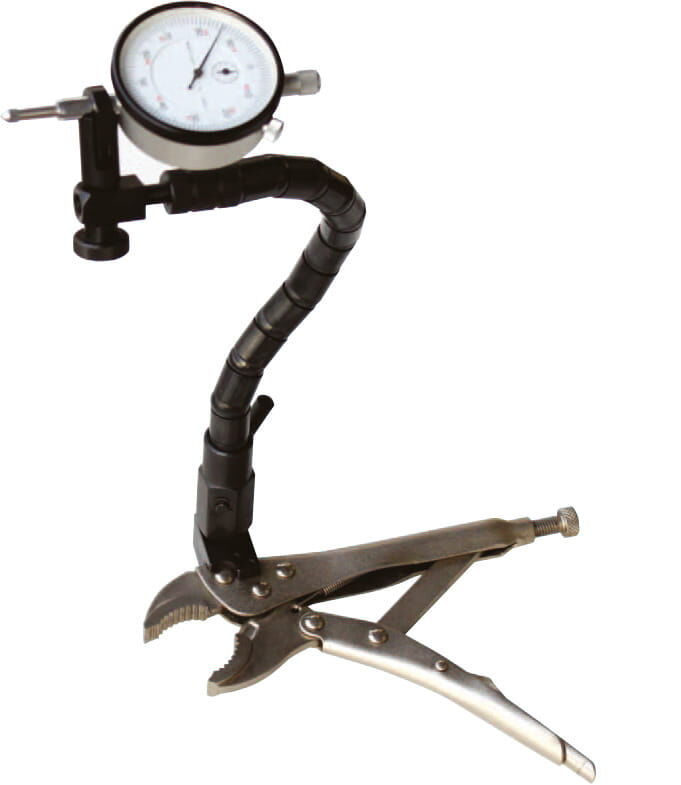

Flexible indicator stand M208.108.Z — flexible gooseneck with clamp for pipes and sheet

The Flexible indicator stand M208.108.Z is a compact measuring support designed to hold dial indicators and comparators steadily in workshop and inspection environments, offering controlled alignment for pipes up to 35 mm diameter and sheet metal up to 30 mm.

Flexible gooseneck arm for precise positioning
Mechanical central clamp for secure fixation
Compatible with 8 mm indicator stems
Fits pipes up to Ø35 mm and sheet to 30 mm

Repeatable readings through precise positioning

A stable measuring set-up reduces variability and speeds inspection cycles. The flexible gooseneck delivers smooth, intuitive alignment while the fine adjustment mechanism permits micro‑movements for exact probe placement, translating into faster set‑up times and fewer rejected parts. The mechanical central clamp locks the assembly firmly in place, limiting the influence of operator pressure and vibration on results — a measurable gain in process reliability for routine quality checks.

Secure clamping across curved and flat surfaces

Designed for use on small tubes and sheet components, the stand accepts workpieces up to 35 mm diameter and sheet thicknesses up to 30 mm, enabling one tool to cover common inspection tasks in fabrication and maintenance. The 8 mm mounting sleeve fits most commercial dial indicators directly, avoiding adapters and simplifying inventory. Its low weight supports easy repositioning on the bench or around a jig, while the clamp and central locking ensure a consistent contact force during measurement.

Fast integration and robust workshop handling

Built for everyday industrial use, the stand brings a practical balance between reach and stiffness across its 320 mm overall height. The flexible arm combined with the central clamp minimises setup iterations, helping technicians maintain throughput without compromising measurement quality. The compact footprint and simple mechanics make the device straightforward to adopt in inspection stations and assembly cells, offering a pragmatic way to elevate measurement consistency across small to medium components.

For tailored advice or to obtain the M208.108.Z from stock, contact Metav Werkzeuge — call +49 2822 7131930 or eMail info@metav-werkzeuge.com for prompt assistance and shipping from Emmerich.

Technical Data

• Article number: M208.108.Z
• GTIN: 4054469104720
• Manufacturer: Metav IndustryLine

Facts

• Overall height: 320 mm
• Weight: 0.8 kg
• Maximum pipe Ø: 35 mm
• Maximum sheet thickness: 30 mm
• Indicator stem mount: 8 mm
• ECLASS: 21170601
• TARIC/HS Code: 90319000

Special features

• Flexible gooseneck arm
• Mechanical central clamp for fixation
• Fine adjustment mechanism present
• Delivered with clamp jaw for gripping round and flat parts
• Suitable for dial indicators and comparators

FAQ

What types of indicators fit the stand?
The stand accepts measuring instruments with an 8 mm stem, so standard dial indicators and many comparators mount directly without adapters.

Can the stand be used on both pipes and flat panels?
Yes. The fixture secures round profiles up to 35 mm diameter and flat material up to 30 mm using the supplied clamp and central locking.

How does the fine adjustment improve measurement?
The fine adjustment allows precise micro‑positioning of the probe before lock‑down, reducing the need for repeated rough adjustments and improving repeatability.

Is the model suitable for workshop use and quick repositioning?
The compact 320 mm height and 0.8 kg weight make the stand easy to relocate across benches and jigs while the central clamp ensures stable locking once positioned.
