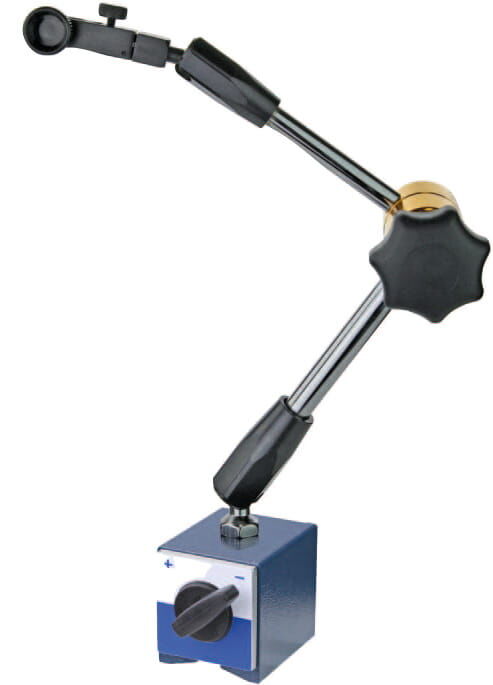

Magnetic Stand M208.109.1 — central mechanical clamp, 340 mm height, 60 kg magnetic force (Metav IndustryLine)

The Magnetic Stand M208.109.1 is a compact workshop stand that provides a rigid, height-stable platform for dial indicators and small measuring instruments, ideally used in inspection benches and machine-shop metrology.

• Central mechanical clamp for stable positioning
• 60 kg magnetic force for secure attachment
• Fine adjustment for precise indicator alignment
• Compatible with 8 mm shank dial indicators
• Compact 340 mm height, robust 1.55 kg build

Consistent clamping for repeatable measurements

The central mechanical clamp ensures that the clamping force is applied uniformly around the column, reducing twist and slippage when locking an indicator. Combined with the 60 kg magnetic force, this design delivers a dependable anchor for comparative and control measurements in workshop environments. The arrangement reduces setup variability so that readings from dial indicators remain consistent over repeated checks. This is particularly valuable for quality control tasks where stability under brief contact or slight knocks prevents false rejects and saves rework time.

Precise alignment with compact handling

Fine adjustment is integrated to allow micrometric alignment of the measuring tip without resorting to coarse repositioning of the whole stand. The compact column and 340 mm height offer a small footprint while retaining adequate reach for most bench- and machine-mounted checks. The 1.55 kg construction balances portability with rigidity, and the foot features an M8 provision for secure attachment or accessory mounting. The stand’s compatibility with 8 mm shank dial indicators streamlines selection of probes and adapters commonly stocked in metrology sets.

Robust attachment and workshop-grade reliability

Designed for repetitive use in production and inspection areas, the stand pairs a magnetic base with a mechanically robust column to withstand everyday handling. The magnetic force specification gives a clear, comparable metric for fixation strength during fixturing and short-term measurements. With Metav IndustryLine sourcing, the product is supported by a logistics and quality filter based in Emmerich that aims to make precision accessible for workshops and service providers. The result is a tool that helps to reduce measurement uncertainty through stable fixturing and simple, reliable operation.

Choose the Metav IndustryLine magnetic stand for stable, repeatable indicator setups and contact Metav Werkzeuge in Emmerich for ordering advice and fast supply

Technical data

• Article number: M208.109.1
• GTIN: 4054469104744
• ECLASS: 21170601
• Category: Magnet stands
• Label: Magnetic stand, central clamp, height 340 mm, 60 kg/M8 central mechanical force clamp

Facts

• Height: 340 mm
• Arm dimensions: 160 x 125 x 45 mm
• Base / foot dimensions: 59 x 50 x 55 mm, M8
• Magnetic force: 60 kg
• Weight: 1.55 kg

Special features

• Central mechanical clamp for uniform locking
• Fine adjustment for precise alignment
• Compatible with dial indicators having an 8 mm shank
• Compact workshop stand from Metav IndustryLine

FAQ

What measuring instruments fit this stand?
The magnetic stand M208.109.1 accepts dial indicators and similar small gauges designed for an 8 mm shank, providing a standard mounting interface for common inspection tools.

How strong is the magnetic base and what does that mean in practice?
The base is rated at 60 kg magnetic force, which denotes the holding capability for secure attachment during routine setup and short-term measurements.

Is there a micro-adjustment for fine positioning?
Yes — the stand includes a fine adjustment mechanism that enables precise alignment of the indicator tip without moving the entire assembly.

What are the main dimensions and weight to consider for bench use?
The stand has a nominal height of 340 mm, an arm of 160 x 125 x 45 mm, a foot of 59 x 50 x 55 mm with M8 provision, and weighs approximately 1.55 kg.

Which brand and SKU should be referenced when ordering or requesting accessories?
Reference Metav IndustryLine and SKU M208.109.1 (GTIN 4054469104744) for ordering and accessory compatibility.
