300 mm Magnetic Stand Three-Point Central Clamp, Round Permanent Magnet Ø50×10mm 24kg - Metav IndustryLine

Take advantage of the secure holding provided by a permanent magnet foot and the quick, repeatable grip of the mechanical central clamping to keep inspection routines efficient; the compact 310 mm total height and modest 0.5 kg weight simplify handling and storage. Order the magnetic stand directly via Metav Werkzeuge or consult our specialists for application advice.

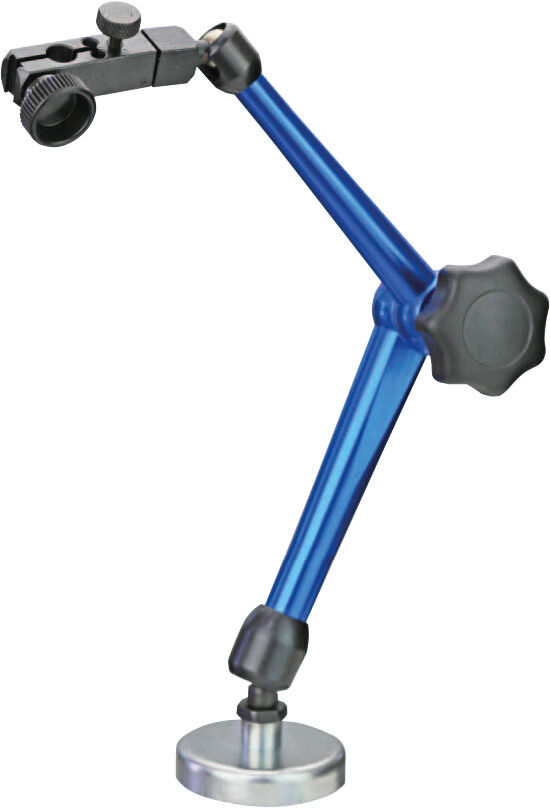

Magnetic stand M208.109.D (Metav IndustryLine) — central clamp, 24 kg permanent magnet

The Magnetic stand M208.109.D is a compact inspection mount designed to hold dial gauges and small probes securely for workshop measurement and quality checks, combining robust holding power with fine positional control.

• Mechanical central clamping for fast secure locking
• Permanent round magnet foot, 24 kg holding force
• Fine height adjustment for precise positioning
• Compatible with 8 mm shank dial gauges

Stable support for reliable measurement results

A stable mounting base reduces measurement variation and increases repeatability during routine checks. The stand’s permanent magnet foot (Ø 50 mm × 10 mm) delivers a 24 kg holding force that secures the unit on ferrous surfaces, while the mechanical central clamping locks the arm quickly without creep. The combination of a compact footprint and strong magnetic adhesion means inspection tasks are less prone to accidental displacement, supporting consistent results across batch inspections and setup checks.

Precise positioning with practical fine adjustment

Fine positional control is essential when aligning indicators and microprobes. The integrated fine adjustment mechanism permits small, controlled movements of the holder so that contact pressure and probe alignment can be set accurately. This reduces the need for repeated coarse adjustments and speeds up the measurement cycle. For applications using standard measuring instruments, the stand is specified for dial gauges with an 8 mm shank, enabling quick mounting of common indicator types used in production and maintenance.

Designed for workshop efficiency and easy handling

Compact overall dimensions — total height 310 mm with an arm measuring 128 × 105 × 46 mm — make the unit well suited to bench-top inspection and confined fixtures. At approximately 0.5 kg, the mount is light enough for repositioning yet heavy enough, in combination with the 24 kg magnetic hold, to remain stable during measurement. The mechanical central clamp offers rapid locking and release, which reduces setup time and supports higher throughput on repetitive measurement tasks.

For reliable holding performance and precision positioning choose the Metav IndustryLine magnetic stand M208.109.D and contact Metav Werkzeuge for tailored application advice or ordering support at their Emmerich location

Technical data

• Article number: M208.109.D
• GTIN: 4054469151694
• ECLASS: 21170601
• Customs tariff number: 90319000

Facts

• Holding force: 24 kg
• Magnet foot: Ø 50 mm × 10 mm
• Total height: 310 mm
• Arm dimensions: 128 × 105 × 46 mm
• Weight: 0.5 kg

Special features

• Mechanical central clamping
• Fine adjustment present
• Permanent round magnet foot
• Compatible with dial gauge 8 mm shank
• Suitable for workshop inspection and bench use

FAQ

What surfaces are required for safe magnetic adhesion?
The magnetic foot requires clean ferrous surfaces for optimal adhesion; the Metav IndustryLine magnetic stand M208.109.D achieves its specified holding force when mounted on flat steel worktops or machine beds.

Can standard dial gauges be mounted directly?
Yes, the mount accepts dial gauges with an 8 mm shank and provides a secure coupling for repeatable indicator positioning.

How is the holder locked in position?
Positioning is secured by the mechanical central clamping, which allows rapid locking of the arm and eliminates play during measurements.

Is the fine adjustment suitable for probe alignment in tight tolerances?
The built-in fine adjustment enables small, controlled movements that assist in accurate probe alignment and consistent contact pressure during comparative measurements.

Does the stand remain stable during light tapping or contact checks?
With a 24 kg permanent magnet foot and immediate central clamping, the stand offers high resistance to incidental disturbance during routine contact inspections.

Which markets and tasks is this stand intended for?
The unit is intended for workshop inspection, machine setup and quality control tasks where compact, repeatable indicator mounting is required; it is particularly suitable for bench-top inspection and maintenance routines.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
