160-250mm Internal Precision Gauge Depth 1000mm, 0.01mm Resolution, Repeatability 0.02mm - Metav IndustryLine

Take advantage of the combination of high-resolution 0.01 mm readout, 1,000 mm reach and robust, workshop-ready construction for consistent bore inspections and faster quality decisions. Order the instrument directly via Metav Werkzeuge or consult the advisers for specification matching and delivery.

Inside fine measuring gauge M208.428 — analogue internal dial gauge, 160–250 mm range with 1,000 mm reach

The Inside fine measuring gauge M208.428 is an analogue internal measuring instrument with a 0.01 mm dial resolution, intended for precise internal diameter and depth checks in machining, toolmaking and quality control applications.

• 0.01 mm high-resolution dial reading
• Measuring range 160–250 mm
• 1,000 mm reach for deep bores
• Repeatability 0.02 mm

Precision that supports confident quality decisions

This internal dial bore gauge delivers a 0.01 mm readout together with a measured repeatability of 0.02 mm, which provides a reliable basis for go/no-go decisions in inspection routines. The mechanical dial readout avoids electronic drift and is straightforward to interpret on the shop floor, so measurement data can be collected consistently for batch acceptance or setup adjustments. The combination of fine resolution and stable repeatability reduces the need for repeated checks and shortens inspection cycles.

Reach and adaptability for deep components

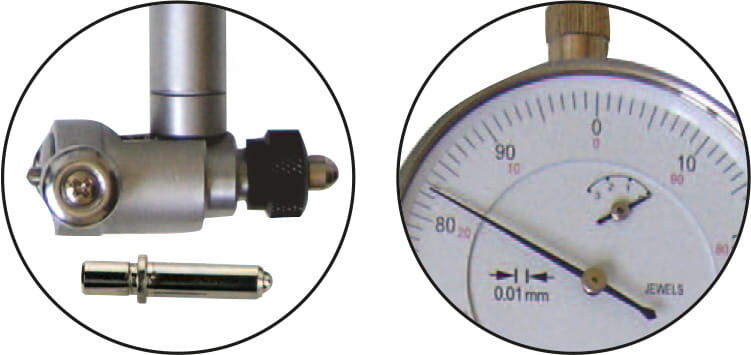

With a measuring depth of 1,000 mm and a measuring range of 160–250 mm, the instrument is suited to deep bores, long housings and recessed features that standard gauges cannot reach. The device includes five contact pins Ø8 and passpieces (0.5/1/2/3/6 × Ø11) to match a variety of bore geometries. An extension value of 50 is documented for use with longer setups, allowing safe adaptation to non‑standard component lengths while maintaining alignment and reproducibility.

Robust handling and workshop-ready supply

The gauge is built on a matt chrome‑plated device holder for corrosion resistance and durable daily use; the overall weight of 1.4 kg balances rigidity with manageable handling. As an analogue instrument it requires no batteries and is simple to maintain, making it a practical choice for production and maintenance departments. Delivery in a protective transport case ensures the gauge arrives ready for immediate use and safe storage between measurement jobs. Classified within the standard measuring band (up to 300 mm), this tool offers the best compromise between reach and stiffness for routine internal measurements.

For dependable internal measurements with extended reach, contact Metav Werkzeuge for ordering and technical advice on the Metav IndustryLine inside fine measuring gauge M208.428.

Technical data

• SKU: M208.428
• GTIN: 4061905044311
• Manufacturer: Metav IndustryLine

Facts

• Measuring range: 160–250 mm
• Measuring depth: 1,000 mm
• Resolution: 0.01 mm
• Repeatability: 0.02 mm
• Weight: 1.4 kg
• Readout type: analogue

Special features

• Device holder matt chrome-plated
• 5× Ø8 measuring pins
• Passpieces: 0.5/1/2/3/6 × Ø11
• Extension: 50
• Delivered in protective transport case

FAQ

How deep can the gauge measure?
The inside fine measuring gauge M208.428 provides a measuring depth of 1,000 mm for inspections of deep bores and recessed features.

What resolution and repeatability are available?
This analogue internal dial gauge offers a 0.01 mm resolution with a repeatability of 0.02 mm, suitable for routine quality control.

Are measuring pins and passpieces included?
The delivery includes five contact pins Ø8 and passpieces (0.5/1/2/3/6 × Ø11) as specified for the M208.428 instrument.

Is the gauge ready for workshop use on arrival?
The instrument is supplied in a protective transport case and is ready for immediate use; its matt chrome‑plated holder and 1.4 kg mass favour robust handling in production environments.
