360° Twist Angle Gauge 150+300mm Digital Display Degrees And Minutes, 4′ Accuracy, Plastic Case - Metav IndustryLine

Reliable, workshop-ready angle measurement with 0.01° display resolution and 4′ accuracy, combined with a compact 150+300 mm rail layout and lightweight portability. Supplied in a protective transport case, the instrument supports full‑circle and quadrant checks for setup and inspection tasks. Order directly via Metav Werkzeuge or consult our specialists for tailored advice.

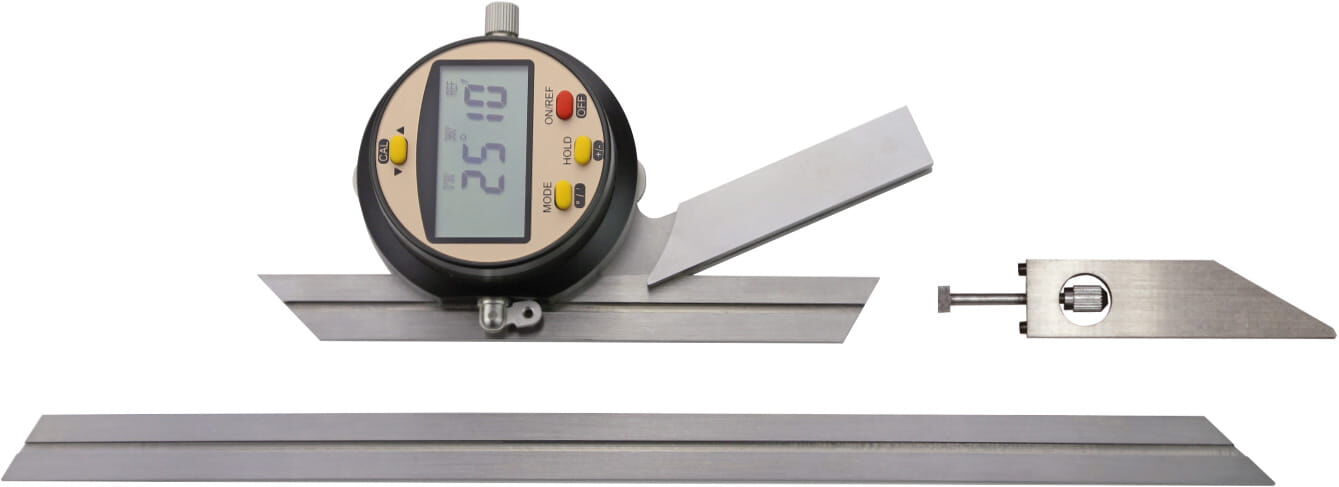

Digital universal angle instrument M214.063 — 360° measuring range, dual 150+300 mm rails (Metav IndustryLine)

The Digital universal angle instrument M214.063 is a compact digital angle gauge intended for workshop alignment, machine setup and inspection tasks requiring full‑circle and quadrant measurement capability.

• 360° full-circle measurement coverage
• Digital readout in degrees and arcminutes
• 150+300 mm compact rail configuration
• Supplied in a protective transport case

Precision where it matters for alignment and inspection

The instrument delivers a 0.01° display step and an overall repeatability specified as 4′ (four arcminutes), which translates into reliable angular discrimination for typical workshop tolerances. Displaying results in degrees and arcminutes avoids conversion errors when transferring readings into drawings or setup sheets. The combination of fine display resolution and the stated accuracy makes this device suitable for tasks such as spindle alignment, jig verification and angular checks on assemblies where consistent, reproducible readings reduce rework and inspection time. Its full‑circle capability also allows comparative measurements across fixtures without mechanical reorientation.

Built for efficient handling and fast readings on the shop floor

Ergonomic controls and a clear digital display simplify routine use: the instrument includes MODE, HOLD, ON/OFF/RED and CAL functions for flexible measurement workflows. The paired rail arrangement (150+300 mm) and a robust 16 × 2.5 mm cross-section provide a balance between compactness and stiffness, enabling steady readings during one-person setups. At about 0.7 kg, the device is light enough for portable inspection while retaining the mass needed to sit stably on a measuring surface. These mechanical and electronic details reduce cycle times in setup and quality checks by making each measurement straightforward and easy to record.

Practical delivery, traceability and supplier reliability

The instrument is delivered in a protective transport case, suitable for safe handling and storage between uses. The clear, labelled display and standard control set help integrate the gauge into inspection routines without lengthy training. Sourcing through Metav IndustryLine ensures availability from a European warehouse and access to a broad range of compatible measuring equipment and accessories; this supply chain proximity supports steady workshop workflows and fast replacement when required. The product’s technical design focuses on measurable improvements in process reliability and the predictability of alignment results.

Choose Metav IndustryLine for reliable, workshop-ready angle measurement — contact Metav Werkzeuge for expert guidance and secure supply from Emmerich.

Technical data

• Article number: M214.063
• GTIN: 4054469106434
• Tariff number: 90178090
• Manufacturer: Metav IndustryLine

Facts

• Weight: 0.7 kg
• Display resolution: 0.01°
• Accuracy: 4 arcminutes
• Rail configuration: 150+300 mm
• Cross-section: 16 × 2.5 mm
• Measurement ranges: 4×90°, 2×180°, 360°

Special features

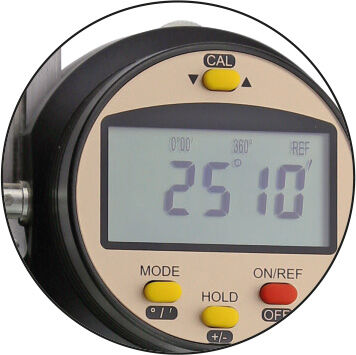

• Digital display with MODE, HOLD, ON/OFF/RED and CAL buttons
• Readout in degrees and arcminutes
• Supplied in a protective transport case for transport
• Category: Angle measuring instruments

FAQ

What measurement ranges are available with this instrument? The Digital universal angle instrument M214.063 supports quadrant and full‑circle measurement modes: 4×90°, 2×180° and full 360° coverage.

What resolution and accuracy does the device offer? The device provides a display resolution of 0.01° and an operational accuracy of 4 arcminutes; the display presents values in degrees and arcminutes for direct interpretation.

Which display and control functions are included? The instrument features a digital readout and keypad functions labelled MODE, HOLD, ON/OFF/RED and CAL for mode selection, value freezing, power control and calibration actions.

Is the instrument suitable for portable inspection tasks? Yes. With a weight of approximately 0.7 kg and a compact 150+300 mm rail assembly, the gauge is designed for convenient handling during on‑site checks and workshop inspections.

How is the instrument supplied? The instrument is delivered in a protective transport case (plastic or wooden as appropriate) to secure the device during storage and transit.

What applications are typical for this angle gauge? Typical uses include machine alignment, jig and fixture verification, angular checks on housings and assemblies, and any workshop or inspection process that requires repeatable angular measurement.
