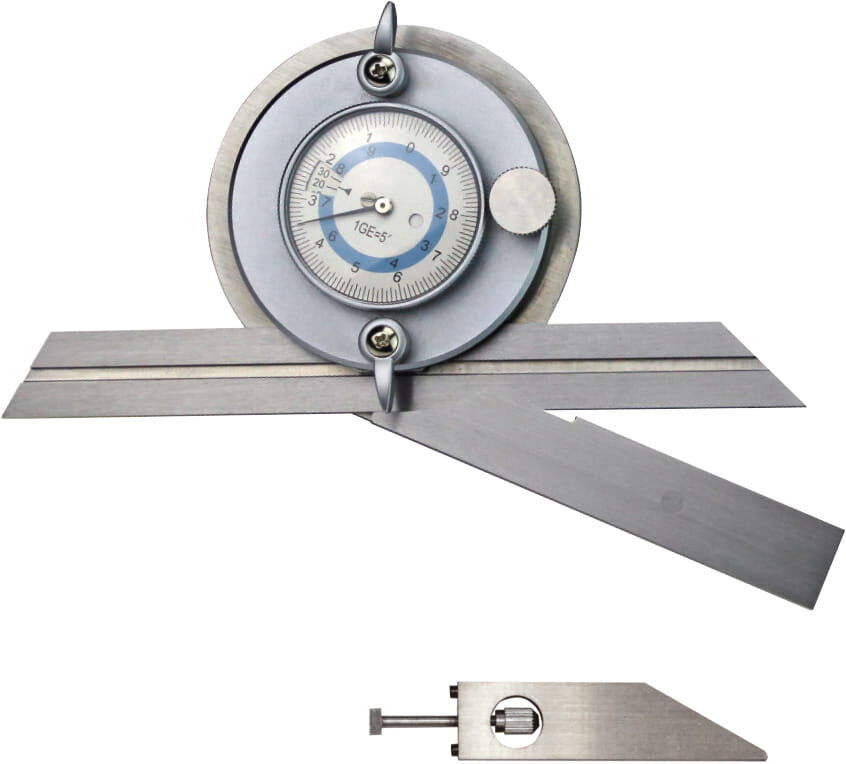

Universal angle gauge with dial — 360° scale, 300 mm rail (Metav IndustryLine)

Universal angle gauge with dial for precise angular measurement and fine positioning across workshop and inspection tasks

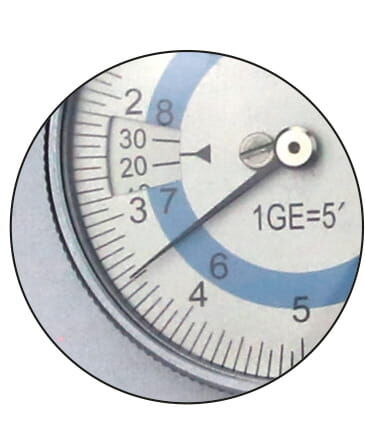

• Analogue dial for fine angular readouts
• 360° range with four 90° quadrants
• 300 mm rigid rail, cross-section 16 x 2.5 mm
• Fine-adjustment mechanism for repeatable indexing

Accurate measurement for faster setup and verifiable results

The instrument delivers an angular accuracy of 10 arcminutes, with a readable increment of 1/12° (≈5 arcminutes) on the analogue scale, complemented by an integrated dial indicator for micro‑adjustment. This combination translates into faster, more reliable setup operations because coarse alignment can be completed from the 360° scale and final positioning refined with the dial. The measurable values are objective and comparable, supporting documented quality checks and reducing rework caused by imprecise fixturing.

Robust geometry and handling that reduce cycle time

A 300 mm rail with a 16 x 2.5 mm cross-section provides the stiffness required for shop use while keeping the instrument light at 0.6 kg, which aids manoeuvrability during frequent repositioning. The four‑quadrant design (4×90°) allows continuous angular coverage without disassembly of the mounting, and the fine-adjustment control enables incremental movement for exact referencing. Together these features make the device suitable for short setup cycles and repetitive production tasks where repeatability matters.

Practical applications and integration into the workflow

Engineered for machine shops, toolrooms and quality control benches, the angle gauge functions as a precision reference for alignment, toolsetting and inspection. The analogue dial supports visual tolerance checks and small corrections, making the instrument a practical complement to digital measurement systems where a tactile, immediate reference is desired. Documentation of measurement scope and instrument identification supports traceable procedures and streamlined communication between production and inspection teams.

For application-specific guidance and to request the Metav IndustryLine Universal angle gauge with dial (SKU M214.083.T), contact Metav Werkzeuge for a tailored recommendation and delivery options

Technical Data

• SKU: M214.083.T
• GTIN: 4054469106496
• Category: Angle measuring devices

Key specifications

• Rail length: 300 mm
• Cross-section: 16 x 2.5 mm
• Measurement range: 4 x 90°
• Angular accuracy: 10 arcminutes
• Reading increment: 1/12° (≈5 arcminutes)
• Weight: 0.6 kg

Features

• Analogue instrument with dial indicator
• Fine-adjustment mechanism for precise indexing
• Full 360° continuous scale
• Four-quadrant operation for versatile fixturing

FAQ

How precise is the instrument for fine positioning?
The Universal angle gauge with dial achieves an angular accuracy of 10 arcminutes and an analogue reading increment of 1/12° (about 5 arcminutes), which supports fine positioning and repeatable setups.

Can the gauge be used for continuous 360° measurements?
Yes, the device offers a full 360° range arranged as four 90° quadrants, allowing continuous angular coverage without the need to remount the instrument.

What does the dial indicator add to the instrument?
The integrated dial indicator provides micro‑adjustment capability and a visual reference for small angular changes, improving repeatability during final alignment and inspection.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
