Miter Angle Gauge M214.158 — 4×90°, aluminium, black anodised

Miter Angle Gauge M214.158 is a compact, workshop-grade tool for angle measurement and quick alignment of chop and miter saws.

Precision 4×90° alignment Direct angle reading for fast setup Black anodised aluminium construction Lightweight 0.1 kg for easy handling

Faster, repeatable 90° set-ups for production and workshop use

The solid aluminium body with black anodised finish gives a stable reference that resists wear and glare, enabling consistent positioning when cutting or checking assemblies. The instrument provides four 90° faces which simplify multi-directional alignment tasks; this reduces repositioning time and minimises rework. Thanks to the direct angle reading feature, the current angle or mitre can be read immediately without additional conversion or auxiliary gauges, supporting efficient cycle times in small-batch production and daily workshop routines. Use of a light, rigid material keeps the tool easy to manoeuvre while maintaining dimensional stability under normal handling.

Designed for practical workshop handling and rapid adjustment

A weight of approximately 0.1 kg and compact dimensions make the unit easy to hold against fences and saw tables while making quick adjustments. The construction balances low mass with sufficient stiffness so that readings remain reliable during one-handed operation. The clear graduation (scale) supports rapid visual checks and alignment procedures commonly required when setting up miter saws or jigs. The gauge is particularly useful where repeated 90° checks are needed—on frames, skirting, trim or fixture assembly—cutting time spent on measurement and improving throughput without sacrificing accuracy.

Clear technical behaviour and compatibility with common workflows

Measurements are presented in a straightforward manner suitable for workshop staff and quality checks; the device is intended for practical alignment rather than laboratory metrology. The robust surface treatment improves resistance to light contact and chips, while the simple geometry means it integrates directly into standard jigging and clamping setups. As an industrial companion, this gauge complements stationary angle-measuring tools and digital inclinometers where rapid mechanical alignment is required before a final electronic check. Metav IndustryLine quality control ensures consistent batch characteristics and dependable repeatability in everyday use.

For reliable 90° set-ups and dependable workshop performance, contact Metav Werkzeuge to discuss supply and integration of the Metav IndustryLine miter angle gauge (M214.158) and secure consistent alignment results for production and maintenance tasks.

Technical Data

• Article number: M214.158
• GTIN: 4054469183336
• Brand: Metav IndustryLine

Facts

• Material: Aluminium, black anodised
• Dimensions: 185 x 63 x 14 mm
• Weight: 0.1 kg
• Measurement range: 4×90°
• Scale graduation: 2°

Special features

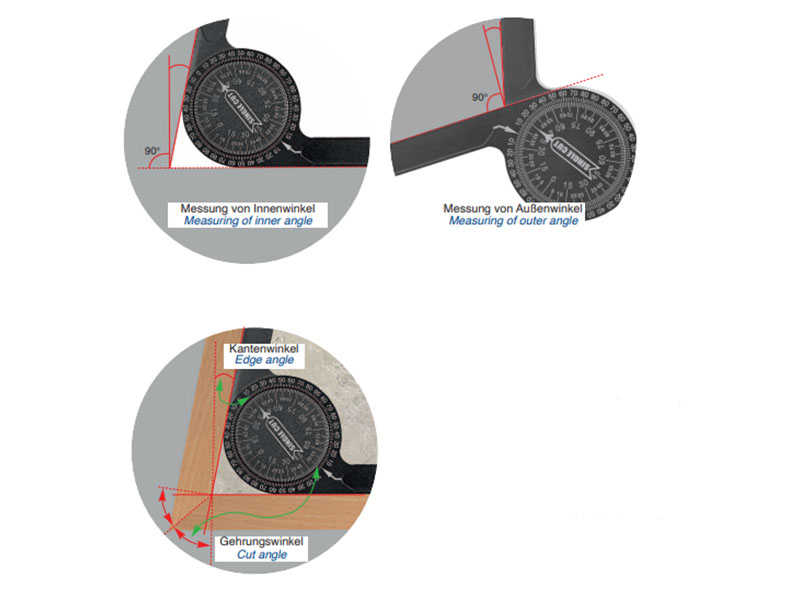

• Direct reading of measuring angle and miter angle
• Suitable for angle measurement and setting of chop and miter saws
• Compact, lightweight design for one-handed handling
• Category: Angle measuring devices

FAQ

How accurate is this gauge for setting saws to 90°?
The Miter Angle Gauge M214.158 offers a robust mechanical reference for repeatable 90° set-ups; its design focuses on reliable workshop alignment rather than laboratory-grade micrometre accuracy.

Can the gauge be used directly on mitre and chop saw fences?
Yes, the aluminium construction and four 90° faces allow direct contact with fences and workpieces for quick angle checks and saw adjustments.

Is the surface finish durable against shop use?
The black anodised surface enhances wear and corrosion resistance, making the tool suitable for regular workshop handling.

Does the tool require calibration before first use?
The gauge is supplied as a mechanical reference; for traceable calibration requirements, consult Metav Werkzeuge about available verification options.

Which applications benefit most from this gauge?
Typical uses include setting up mitre and chop saws, checking corner squareness on assemblies, and quick alignment tasks in joinery, metalwork and general workshop environments.
