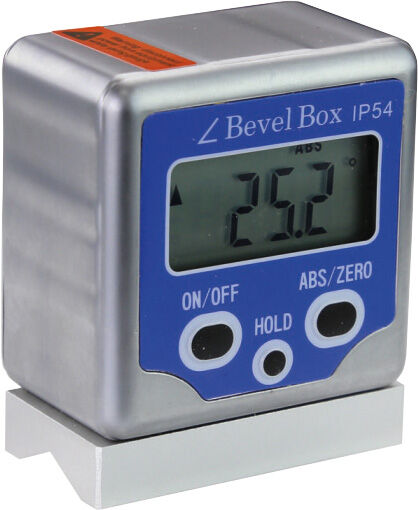

50mm Digital Inclinometer V-Prism 0.1° Readout IP54 Aluminium Housing Magnet - Metav IndustryLine

Compact accuracy and workshop durability meet in this compact instrument: precise 0.1° resolution combined with a 50 mm V‑prism and permanent magnet base ensures rapid, repeatable angle checks on round and flat components. Order the Digital Inclinometer M215.208 directly via Metav Werkzeuge or ask our consultants if additional specifications are required.

Digital Inclinometer M215.208 — 50 mm V‑prism, IP54 (Metav IndustryLine)

Digital Inclinometer M215.208 for quick angle and tilt verification on shafts, fixtures and machined components with V‑prism seating and magnetic fixing

• 50 mm V‑prism for round and flat surfaces
• Resolution 0.1° digital readout
• Permanent magnet base for secure fixing
• IP54 aluminium housing for workshop use

Fast, repeatable angular checks on shafts and fixtures

The compact V‑prism seating and magnetic base turn manual alignments into a one‑step process: the V‑profile centres on cylindrical shafts while the magnet holds the unit securely on steel surfaces, enabling consistent repositioning without time‑consuming clamping. The device measures across a 4×90° range and provides a 0.1° resolution, which, together with the specified accuracy bands (±0.2° up to 15°; ±0.5° from 15°–90°), supports routine setup and acceptance checks in metalworking and maintenance tasks. This combination reduces rework and speeds up machine set‑ups.

Digital functions that reduce measurement time and uncertainty

A clear digital display with ON/OFF, HOLD and ABS/ZERO controls simplifies repeated or comparative measurements: the HOLD key locks a reading for transfer, while ABS/ZERO enables quick relative readings from a chosen reference plane. These functions cut measurement steps and minimise transcription errors during batch inspections. The instrument’s electronics are optimised for practical workshop use, delivering immediate numeric results that replace subjective bubble levels and visual estimates, so alignment tasks become measurable and traceable.

Built for the workshop — robust, precise and portable

The lightweight aluminium housing and IP54 rating protect internal components from dust and splashing coolant, preserving accuracy in everyday production environments. At approximately 0.22 kg and compact dimensions, the unit is easy to position and carry between stations, supporting portable inspection routines. The permanent magnet and longitudinal prism arrangement make the tool especially suitable for checks on lathe work, jig beds and assembly fixtures, providing a dependable combination of stability and accessibility that benefits both bench and on‑machine measurements.

Contact Metav Werkzeuge for a tailored quotation or technical advice on the Digital Inclinometer M215.208 and discover how its magnetic V‑prism design can speed up alignment tasks at your shopfloor.

Technical data

• Article number: M215.208
• GTIN: 4054469109978
• Category: Angle measuring devices

Key specifications

• Measurement range: 4×90°
• Resolution: 0.1°
• Accuracy: ±0.2° up to 15°; ±0.5° from 15°–90°
• Dimensions: 50×60×33 mm
• Weight: 0.22 kg
• Protection class: IP54

Features

• Frame material: aluminium
• V‑prism (longitudinal)
• Permanent magnet base
• Digital display with ON/OFF, HOLD, ABS/ZERO
• Suitable for workshop and portable use

FAQ

How precise is the inclinometer for routine alignment?
The Digital Inclinometer M215.208 delivers a 0.1° resolution with specified accuracy of ±0.2° up to 15° and ±0.5° from 15°–90°, suitable for standard machine‑shop and maintenance alignments.

Can the tool be used on round shafts and flat surfaces?
Yes, the V‑prism seating combined with the permanent magnet base allows secure positioning on both cylindrical shafts and flat ferrous surfaces for stable measurements.

What display functions support comparative measurements?
The instrument offers HOLD to freeze readings and ABS/ZERO to set a temporary reference, enabling relative measurements and quick comparative checks during inspection routines.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
