50mm Digital Inclinometer V-Base, Rotatable, 0.1° Resolution, Aluminium Housing, IP54, Magnetic - Metav IndustryLine

Benefit from precise 0.1° digital resolution and a magnetic V‑base for stable mounting; the compact aluminium housing with IP54 protection keeps readings reliable in workshop environments. Purchase the M215.210 directly from Metav Werkzeuge or contact our consultants for application advice.

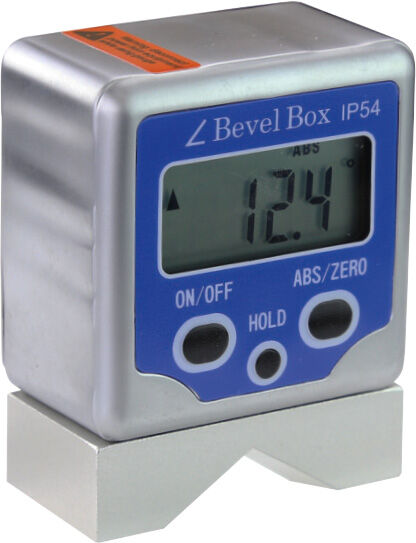

M215.210 Digital inclinometer – 50 mm V‑base, 0.1° resolution (Metav IndustryLine)

A Digital inclinometer M215.210 designed for fast angle checks on shafts, fixtures and machine setups, featuring a V‑base with permanent magnet and a transverse prism for secure seating on flat and cylindrical surfaces.

• 50 mm V‑base with integral magnet
• Resolution 0.1° digital readout
• Aluminium housing, IP54 protection
• ON/OFF, HOLD and ABS/ZERO controls

Stable mounting for fast, repeatable angle checks

The compact V‑base and built‑in permanent magnet provide a secure mechanical interface that reduces movement during measurement, which speeds up repetitive checks and improves reproducibility on ferrous workpieces. The included transverse prism ensures stable contact on cylindrical parts such as shafts or pipes, so alignment and setup tasks can be completed with fewer repositionings. With a measurement configuration spanning 4×90°, the instrument covers full‑rotation applications without the need for frequent re‑clamping.

Accurate digital readout with intuitive functions for production work

Equipped with a digital display and tactile ON/OFF, HOLD and ABS/ZERO buttons, this tool allows quick zeroing and toggling between absolute and relative measurements for assembly and set‑up tasks. The 0.1° display resolution is paired with a declared accuracy of ±0.2° (from 0.2° to 15°) and ±0.5° (from 15° to 90°), delivering verifiable results for typical workshop tolerances. The straightforward controls reduce operator training time and minimise the risk of reading errors, supporting consistent process quality on the shop floor.

Robust construction and workshop suitability for daily use

A lightweight aluminium housing (approx. 0.22 kg) combines corrosion resistance with handy portability, while the IP54 ingress rating protects the electronics against dust and splashing water commonly found in industrial environments. The compact dimensions (50×65×33 mm) make the instrument easy to stow in tool kits or on inspection trolleys, while the solid build supports frequent handling and transport. The combination of mechanical stability, digital convenience and protective design makes the device a practical choice for fitters, tool‑room staff and quality inspectors who require rapid, repeatable angle verification.

Contact Metav Werkzeuge for tailored advice on integrating the M215.210 into production workflows or to request application support from our Emmerich‑based specialists

Technical data

• Article number: M215.210
• GTIN: 4054469109992
• Manufacturer: Metav IndustryLine
• ECLASS: 21170321
• Customs tariff: 90173000

Facts

• Measuring range: 4×90°
• Resolution: 0.1°
• Accuracy: ±0.2° (0.2–15°), ±0.5° (15–90°)
• Weight: 0.22 kg
• Dimensions: 50×65×33 mm
• Protection class: IP54

Special features

• V‑base with transverse prism
• Permanent magnet
• Aluminium housing
• Digital display with ON/OFF, HOLD, ABS/ZERO
• Compact format for portable use

FAQ

What surfaces can the inclinometer measure reliably?
The M215.210 measures reliably on flat ferrous surfaces via the V‑base and magnet; the transverse prism also allows stable contact on cylindrical parts such as shafts and pipes.

How precise are the readings for assembly work?
The instrument provides a 0.1° display resolution with an accuracy of ±0.2° in the 0.2°–15° range and ±0.5° from 15°–90°, suitable for routine workshop and machine‑setup tolerances.

How does the ABS/ZERO function support repetitive tasks?
The ABS/ZERO key lets the display be re‑zeroed quickly for relative measurements, enabling stepwise alignment and the direct comparison of angles without manual calculation.

Is the inclinometer protected against workshop conditions?
Yes; the aluminium housing and IP54 rating protect the instrument against dust ingress and splashing water typical in industrial environments, supporting daily use on the shop floor.

Can the inclinometer be used for full‑rotation measurements?
The device covers a measuring configuration of 4×90°, which provides the equivalent of full‑rotation capability for angle checks without repeated re‑clamping.
