300mm Digital Depth Gauge With Interchangeable Inserts, Stainless Steel, DIN 862, Supplied In Case - Metav IndustryLine

Take advantage of a robust, workshop-ready depth gauge that combines a 300 mm measuring range, interchangeable inserts and a clear digital readout with tolerance functions for efficient inspection work; order the depth gauge directly via Metav Werkzeuge or consult our specialists for tailored advice.

Digital depth gauge with interchangeable inserts, 300 mm (Metav IndustryLine)

The Digital depth gauge with interchangeable inserts, 300 mm is a workshop depth-measuring instrument designed for reliable depth checks, assembly inspection and repetitive production control.

• Interchangeable measuring inserts
• 300 mm measuring range
• Stainless steel construction
• Digital display with mm/inch and TOL functions

Consistent, workshop-grade accuracy that keeps production moving

This digital depth gauge delivers a 0.01 mm resolution on its display, providing the fine increments needed for standard machine-shop quality checks. Built to the DIN 862 guideline, the instrument combines stable mechanical guidance with an electronic readout to reduce reading errors and speed up measurement cycles. The measuring bridge and sliding measuring bridge arrangement ensure repeatable contact geometry, while the device's tolerance and preset functions enable rapid go/no-go decisions — a practical performance boost for tasks where time-to-decision matters.

Versatility through interchangeable inserts and smart display controls

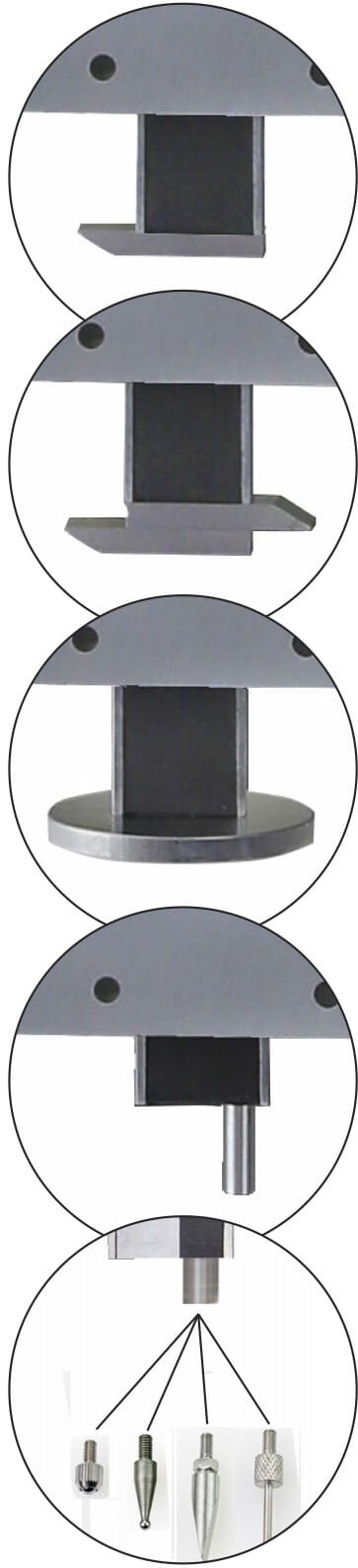

Interchangeable inserts extend the instrument’s application scope, allowing a single tool to measure different recess depths, grooves and stepped features without compromising contact stability. The digital panel includes ON/OFF, preset, TOL, HOLD, direction, zero/absolute and mm/inch selection, so results can be stabilised, compared to limits and converted on the fly. A dataport labelled RB 5 is available for process logging and traceable data transfer to quality systems, supporting integration into existing inspection workflows.

Robust materials and practical delivery for everyday use

Manufactured from stainless steel, the gauge resists corrosion and keeps mechanical surfaces true under industrial conditioning. With a measured weight of 1.5 kg and a bridge dimension of 160 mm, it is stable in hand yet manageable at the bench. The instrument is supplied in a protective transport case, simplifying storage and site movement while protecting the measuring faces. For workshops seeking a reliable depth-measuring solution that balances reach, stiffness and operator convenience, this unit represents a practical choice.

Choose the Metav IndustryLine digital depth gauge for dependable depth measurement and contact Metav Werkzeuge in Emmerich for personalised ordering information or technical guidance via info@metav-werkzeuge.com or +49 2822 7131930

Technical Data

• Article number: M218.016
• GTIN: 4054469178318
• SKU: M218.016
• Material: stainless steel
• Standard: DIN 862
• Data output: RB 5

Facts

• Measuring range: 0–300 mm
• Resolution: 0.01 mm
• Resolution (inch): 0.0005 in
• Bridge length: 160 mm
• Weight: 1.5 kg

Special features

• Interchangeable inserts for varied contact geometries
• Measuring bridge with sliding measuring bridge
• Digital display with ON/OFF, PRESET, TOL, HOLD, DIR, 0/ABS, mm/inch buttons
• Delivered in a protective transport case

FAQ

What measurement range does the gauge cover?
The instrument covers a measuring range of 0–300 mm and is therefore classified as a standard-length caliper suitable for general machine-shop tasks.

What resolution and accuracy can be expected from the display?
The digital readout provides a 0.01 mm resolution (0.0005 in) appropriate for workshop inspections; for a 300 mm range the device aligns with common DIN‑based tolerances for digital calipers.

Can the gauge communicate measurement results to a PC or data logger?
Yes, the gauge includes a data output (RB 5) for transfer of recorded measurements into logging or quality-assurance systems.

Are the measuring inserts replaceable for specialised tasks?
Interchangeable inserts are provided so the gauge can be adapted for different groove, recess or stepped depth measurements without losing contact stability.

Is the depth gauge suitable for harsh workshop environments?
Constructed from stainless steel and supplied in a protective transport case, the instrument is designed for durable workshop use and practical handling.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
