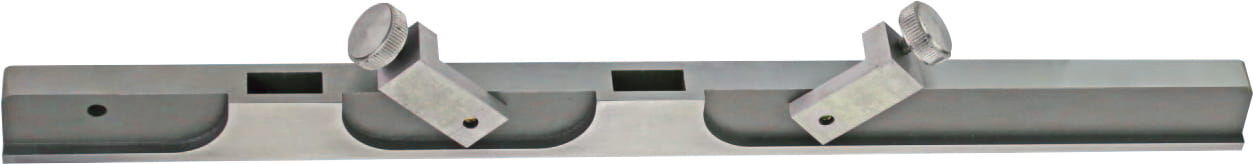

M218.051 300 mm mounting measuring bridge — 12 mm thick, two mounting bores (Metav IndustryLine)

The M218.051 mounting measuring bridge offers a compact installation platform designed for secure attachment of workshop measuring instruments and fixtures up to 300 mm in length.

• 300 mm length for standard measuring instruments
• 12 mm thick robust profile
• Two mounting bores for secure fixation

Consistent fixation for repeatable measurements

The bridge’s 12 mm thick profile and twin bore arrangement create a stable mounting plane that reduces micro‑movement during measurement. Fewer variables during the measuring process mean improved repeatability and more reliable data for quality control. Designed as a fixed installation component, the device helps to maintain alignment between probe and workpiece, providing a reproducible reference that benefits process control and reduces the need for repeated adjustments.

Optimised length for workshop workflows

With a 300 mm nominal span, the bridge matches the common lengths of workshop measuring instruments and provides a balanced combination of reach and stiffness. This length supports the handling of typical components without compromising structural rigidity, allowing straightforward integration into bench setups and measuring fixtures. The dimension is intended to offer practical coverage for everyday measuring tasks while keeping the mounting footprint compact and manageable.

Straightforward integration into measuring assemblies

As an accessory intended for fixed installation, the M218.051 simplifies attachment of depth gauges, calipers and similar devices via its two bore fixation points. The design supports secure clamping and straightforward alignment with existing setups, minimising installation time and the risk of misalignment. The mounting bridge is supplied as a ready component for integration into measuring stations and jigs, contributing to efficient workshop workflows and dependable measurement chains.

For robust and reliable mounting choose the Metav IndustryLine M218.051; contact Metav Werkzeuge in Emmerich for specification advice and rapid supply via info@metav-werkzeuge.com or call +49 2822 7131930

Technical Data

• Article number: M218.051
• GTIN: 4054469111476
• Customs tariff number: 90173000

Numbers / Key measurements

• Length: 300 mm
• Thickness: 12 mm

Design / Special features

• Two mounting bores
• Intended as an installation / mounting bridge for measuring instruments
• Category: Accessory (Zubehör)
• eClass: 21179203

FAQ

What is the primary purpose of this mounting bridge?
The mounting bridge provides a fixed installation platform for workshop measuring instruments, enabling stable attachment and improved repeatability when used with calipers and depth gauges.

Which instruments is the bridge compatible with?
Compatibility is aimed at standard measuring devices up to 300 mm in span; the M218.051 is suitable for integration with many bench and jig assemblies that accept a 300 mm mounting reference.

How is the bridge secured in place?
The bridge uses two mounting bores to allow secure fixation to a bench, fixture or measuring station, providing a stable reference plane for attached instruments.

Is the M218.051 suitable for heavy industrial environments?
The robust 12 mm profile and secure bore mounting make the bridge appropriate for standard industrial workshop conditions where a stable, repeatable mounting solution is required.
