40-100mm Digital Probe With Self-Opening Measuring Tips, 0.005mm Resolution, Stainless Steel, Supplied In Case - Metav IndustryLine

Take advantage of a compact, high-resolution measuring probe that combines 0.005 mm readout precision with a hardened stainless-steel construction for reliable repeatability in fine internal checks; order the device directly via Metav Werkzeuge or contact our consultants for integration advice.

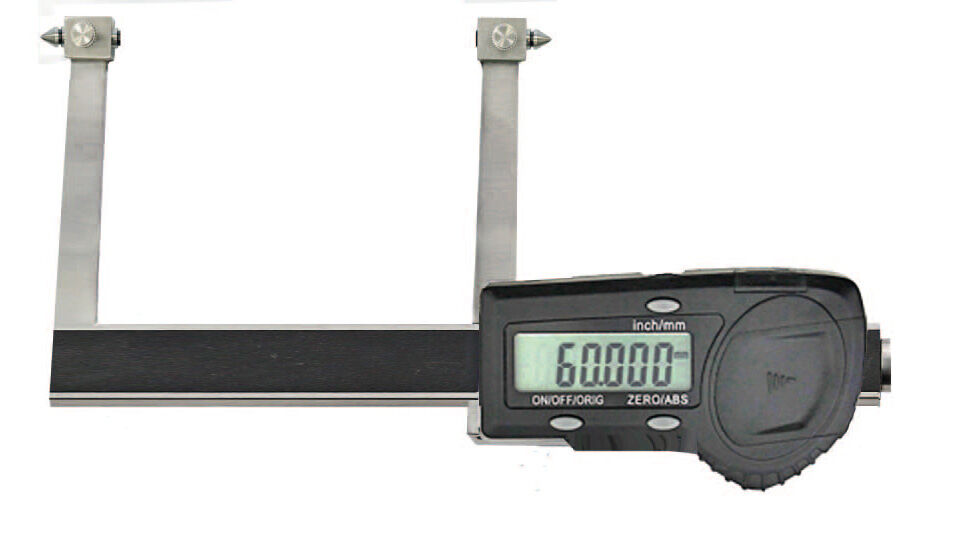

Digital measuring probe M240.078 — 40–100 mm range, 0.005 mm resolution (Metav IndustryLine)

The Digital measuring probe M240.078 is a precision probe designed for use with calipers and inspection fixtures, providing accurate internal, step and groove measurements across a compact 40–100 mm span.

• 0.005 mm readout resolution
• Hardened stainless-steel construction
• Self-opening measuring jaws
• Digital mm/inch and ABS functions

Precision where small details determine quality

The probe delivers a 40–100 mm measuring span while prioritising fine-detail accuracy through a 0.005 mm digital readout and an industrial error limit of ±0.02 mm. This combination means reliable detection of small deviations without overcomplicating measurement routines. For applications such as slot widths, bore checks and groove depths, the compact geometry and the self-opening jaws reduce operator-induced variation and increase throughput. The limited measuring range classifies the product in the micro category, making it particularly suitable for watchmaking, precision fittings and components where short, stiff jaws are essential.

Built to withstand workshop demands and remain consistent

Manufactured from hardened stainless steel, the probe resists corrosion and maintains dimensional stability under regular use. The Ø 5 mm mounting shank enables straightforward integration into existing caliper slides or fixture holders, while the half‑kilogram overall mass contributes to a stable feel during manual checks. These material and design choices reduce setup time and support reproducible results, lowering the risk of rework in serial inspection tasks. The rugged construction therefore supports continuous operation in production and inspection environments.

Clear digital output and simple process integration

Equipped with a digital display featuring ON/OFF, mm/inch conversion and ABS/zero functions, the probe simplifies data capture and reduces conversion errors in mixed-unit workflows. The higher-than-standard resolution streamlines comparison against tolerance bands and shortens decision cycles in quality control—fewer intermediate calculations, faster go/no-go assessments. Compatibility with common caliper mounts and a compact form factor allow quick retrofitting into measuring stations or portable inspection kits, improving measurement ergonomics without significant fixture changes.

Contact Metav Werkzeuge in Emmerich for delivery details or integration support on the M240.078 and discover how this compact high-resolution probe can be introduced into existing inspection processes.

Technical data

• SKU: M240.078
• GTIN: 4054469151939
• ECLASS: 27144044
• ETIM: EC000029
• Brand: Metav IndustryLine

Numbers / Core technical data

• Measuring range: 40–100 mm
• Readout / resolution: 0.005 mm (0.0002 in)
• Accuracy: ±0.02 mm
• Weight: 0.5 kg
• Mounting shank: Ø 5 mm

Special features

• Material: hardened stainless steel
• Self-opening measuring jaws
• Digital display with ON/OFF, mm/inch and ABS/zero

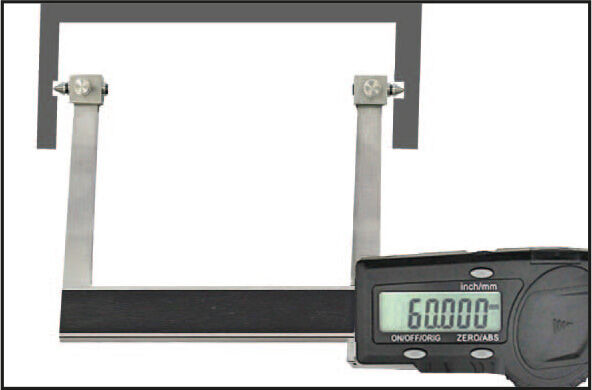

• Suitable for internal measurements (slots, grooves, diameters)
• Suitable for caliper integration

FAQ

What measuring tasks is this probe best suited for?
The M240.078 probe from Metav IndustryLine is optimised for internal, step and groove measurements within the 40–100 mm range where compact, stiff jaws and high readout resolution are required.

How accurate is the digital output compared with standard calipers?
The device provides a 0.005 mm readout with an industrial accuracy limit of ±0.02 mm, offering finer resolution than many standard digital calipers and aiding tighter quality control.

Can the probe be mounted in existing caliper slides or fixtures?
Yes. The probe features a Ø 5 mm mounting shank for straightforward integration into compatible caliper slides and inspection fixtures.

Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
