25mm Digital Inside-Outside Gauge Self-Closing Jaws, Spring-Loaded Stainless Steel, mm/inch, Battery Supplied - Metav IndustryLine

Take advantage of the compact size, reliable digital readout and hardened stainless-steel construction for consistent shop-floor checks; order the gauge directly via Metav Werkzeuge or ask our consultants if needed.

Digital internal-external gauge 0–25 mm — spring-loaded, digital display (Metav IndustryLine)

Digital internal-external gauge 0–25 mm is a compact, spring-loaded measuring instrument designed for precise internal, external and thickness checks in confined spaces such as fine mechanical workstations and inspection benches.

• Compact 0–25 mm measuring range
• 0.01 mm digital resolution

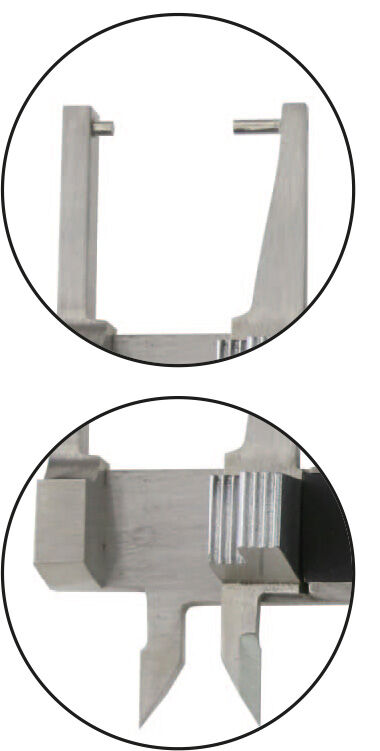

• Spring-loaded self-closing jaws
• Hardened stainless-steel housing

Precision in small packages for repeatable results

This instrument belongs to the micro class of calipers, offering a 0–25 mm measuring range that is ideal where reach is limited but accuracy remains essential. The 0.01 mm resolution combined with an indicated ±0.03 mm accuracy provides measurable improvement over coarse tools, enabling reliable decisions during incoming inspection, short-run production or fine-assembly operations. The compact footprint reduces deflection risk and supports consistent contact pressure when paired with the spring mechanism, so measurements remain repeatable even in handheld use.

Robust construction that endures the workshop

A hardened stainless-steel body ensures corrosion resistance and dimensional stability under regular shop use; this durability lowers lifecycle costs and maintains calibration intervals. The spring-loaded self-closing jaws protect delicate parts from overpressing while speeding repetitive tasks, and the lightweight build (approx. 0.27 kg) keeps operator fatigue to a minimum during frequent checks. The digital display includes ON/OFF, mm/inch and ZERO functions for quick unit changes and relative measurement setups, powered by a standard 1.5 V cell for easy servicing.

Streamlined inspection workflow and practical benefits

Integrating this digital gauge into a quality routine reduces cycle time for small-part checks and supports faster go/no-go decisions thanks to instant readout and unit conversion. The sturdy design and clear display minimise handling errors, which translates into fewer reworks and more consistent output. For bespoke requirements such as accredited certificates or batch calibration, Metav Werkzeuge provides targeted consultancy and supply options to adapt the measuring solution to established quality systems.

Contact Metav Werkzeuge today for detailed suitability advice on this Metav IndustryLine measuring instrument or to discuss customised calibration options.

Technical Data

• SKU: M240.079
• GTIN: 4054469112886
• Customs tariff number: 90173000

Facts

• Measuring range: 0–25 mm
• Resolution: 0.01 mm
• Indicated accuracy: ±0.03 mm
• Weight: 0.27 kg

Special features

• Hardened stainless-steel housing
• Spring-loaded self-closing jaws

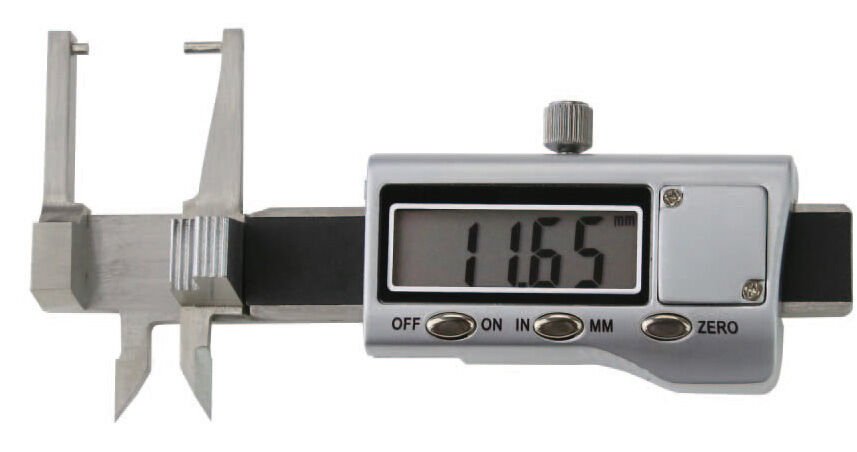

• Digital display with ON/OFF, mm/inch and ZERO
• Power supply: 1.5 V
• Category: Digital internal-external gauge

FAQ

What is the nominal measuring range of this instrument?
The Metav IndustryLine digital internal-external gauge M240.079 covers a 0–25 mm range suitable for micro‑precision tasks.

How precise is the readout and what accuracy can be expected?
The display resolution is 0.01 mm and the stated indication is ±0.03 mm, making the instrument suitable for standard workshop inspection where sub-0.05 mm repeatability is required.

Can it measure internal and external dimensions as well as thickness?
Yes, the design supports internal, external and thickness measurements; the spring-loaded jaws aid safe internal checks and protect small components during repetitive measurement.

Is the gauge supplied ready to use and can it be certified?
The instrument is supplied ready to use; for an accredited calibration certificate or specific certification needs, Metav Werkzeuge can advise on available calibration services.

Which materials is the instrument suited to inspect?
The hardened stainless-steel construction makes the gauge suitable for routine measurement on metal, plastic and assembled components typical in small-part inspection.
