25mm Digital Thickness Gauge With 9mm Anvil, Spring-Opening, Flat Measuring Faces, mm/inch Display, Case - Metav IndustryLine

Take advantage of fast, repeatable thickness checks thanks to the combination of digital readout, a 25 mm measuring range and a cast-iron frame for stable readings; order the instrument directly via Metav Werkzeuge or consult our specialists if further advice is required.

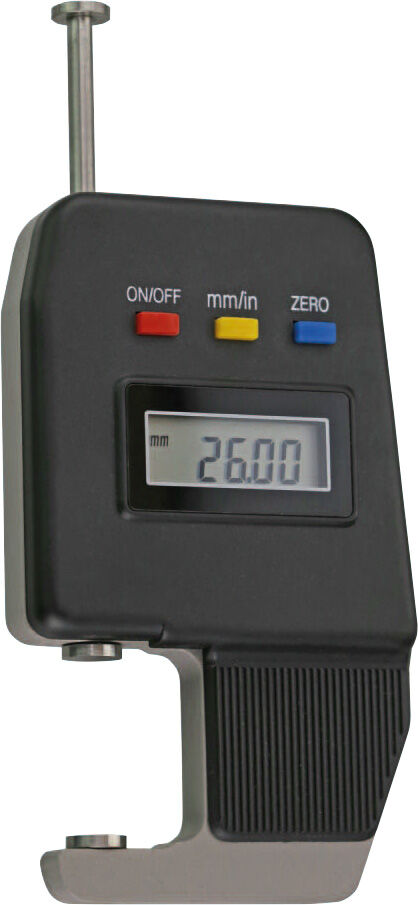

Digital Thickness Gauge M240.122 – 25 mm range, Ø 9 mm anvil (Metav IndustryLine)

The Digital Thickness Gauge M240.122 is a compact, workshop-ready instrument for quick thickness measurements of thin parts and finished components in mechanical and inspection work.

*25 mm measuring range, 0.01 mm resolution
*Ø 9 mm measurement anvil for small features
*Cast-iron frame with stainless probe for rigidity
*Digital display with mm/inch and zero function

Reliable numeric control for everyday quality checks

The gauge offers a 25 mm measuring range with a typical 0.01 mm display resolution and an accuracy ±0.04 mm, giving a clear, measurable basis for dimensional control. The digital readout includes mm/inch switching and a zero function for relative measurements, simplifying set-ups and reducing transcription errors. These attributes translate into faster inspection cycles and fewer repeat measurements in production- and workshop-level quality control.

Designed for small features and straightforward handling

A Ø 9 mm flat measuring face concentrates contact area for confined or curved surfaces, while a spring-open mechanism enables quick single-handed operation and consistent contact pressure. With a throat depth of 15 mm and a compact, lightweight construction (approx. 0.26 kg), the instrument is convenient for bench work and mobile checks on the shop floor. The probe is made from stainless steel and the frame from cast-iron, ensuring stable geometry and resistance to common workshop wear.

Practical robustness and clear interpretation of specifications

The specification accuracy ±0.04 mm means measured values will typically fall within that tolerance under normal conditions, making the gauge suitable for routine inspection, component acceptance and process checks where medium precision is required. The combination of a rigid frame and a corrosion-resistant probe reduces drift and maintenance needs; the electronic display reduces the risk of reading errors associated with analogue scales. Metav IndustryLine supplies this instrument for shops and inspection departments that prioritise dependable, easy-to-use measuring tools.

For consistent thickness control choose the Metav IndustryLine M240.122 and contact Metav Werkzeuge for personalised advice or purchasing from Emmerich: info@metav-werkzeuge.com | +49 2822 7131930

Technical Data

• Article number: M240.122
• GTIN: 4054469112862
• Tariff code: 90173000
• Category: Measuring instruments

Facts

• Measuring range: 0–25 mm
• Resolution: 0.01 mm (0.0005 in)
• Accuracy: ±0.04 mm
• Anvil diameter: 9 mm
• Throat depth: 15 mm
• Weight: 0.26 kg

Special features

• Digital display with ON/OFF, mm/inch and zero
• Measuring faces: flat
• Probe material: stainless steel
• Frame material: cast-iron, painted
• Operation: spring-open mechanism
• SKU: M240.122

FAQ

What measuring range and resolution does this instrument provide?
The Digital Thickness Gauge M240.122 offers a 0–25 mm measuring range with a display resolution of 0.01 mm (equivalent to 0.0005 in), suitable for fine workshop measurements.

How accurate are the readings and what does that mean in practice?
The instrument is specified with an accuracy of ±0.04 mm, so typical measurements will fall within that tolerance under standard conditions, making it appropriate for routine inspection and process control.

Are the measuring faces suitable for small or curved parts?
Yes, the gauge has a Ø 9 mm flat measuring face designed to focus contact on smaller features and limited contact areas for reliable thickness assessment.

Does the gauge support both metric and imperial units?
Yes, the digital display on the M240.122 provides mm/inch switching plus a zero function for comparative measurements.

What materials and construction ensure durability in a workshop?
The probe is made of stainless steel and the frame is constructed from painted cast-iron, offering a stable measuring platform and resistance to common workshop influences.
