25mm Digital Thickness Gauge Spring-Closing Anvil Ø14.5mm, Cast Iron Frame, mm/inch Display, With ON/OFF & Zero Button - Metav IndustryLine

Benefit from the combination of 0.01 mm resolution and a spring‑loaded anvil for reproducible thickness checks; robust cast‑iron construction ensures dependable daily use. Order the gauge directly via Metav Werkzeuge or consult our advisors for application support.

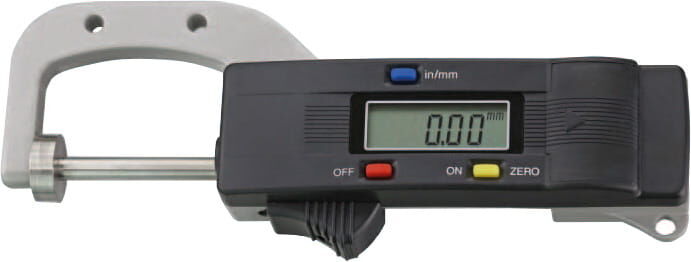

Digital Thickness Gauge 25 mm – compact spring‑loaded gauge by Metav IndustryLine

The Digital Thickness Gauge 25 mm is a compact, spring‑loaded measuring instrument for fast thickness checks and quality control in workshops and small‑scale production.

• 25 mm measuring range, 0.01 mm resolution
• Spring‑loaded anvil for consistent contact
• Stainless steel contact, cast‑iron frame
• Supplied in a protective case for transport

Precise measurement performance for routine quality checks

The instrument delivers a measuring range of 0–25 mm with a standard display resolution of 0.01 mm (0.0005 in), paired with an accuracy of approximately ±0.04 mm. This combination provides a reliable balance between sensitivity and robustness for workshop metrology tasks. The spring‑loaded mechanism ensures a constant measuring force so that repeat measurements remain comparable; the relatively large measuring face (Ø 14.5 mm) distributes contact pressure and reduces local deformation on sensitive materials. Together, these technical characteristics translate into faster throughput in inspection loops and fewer reworks caused by inconsistent gauging.

Built for workshops: durable materials and practical handling

Durability is emphasised by a cast‑iron frame, finished in protective paint, while the measuring contact is made from stainless steel, giving corrosion resistance where it matters. At roughly 0.27 kg, the instrument remains handheld and easy to position, yet substantial enough to resist accidental flexing during operation. The spring‑closing feature keeps the measuring faces engaged reliably during series checks, and the inclusion of a protective case accommodates secure transport and storage between shifts. These aspects reduce downtime and extend service life under normal workshop conditions.

User‑oriented digital functions for efficient inspection routines

The digital display includes an on/off control, a mm/inch toggle and a zero function for quick reference setups and comparative measurements. Switching units and zeroing the display speeds up inspection tasks and supports documentation workflows where both metric and imperial records are required. The clear numeric readout, combined with the gauge’s repeatable contact force, simplifies routine data capture for quality checks and in‑process control. The instrument is suited to general workshop metrology, maintenance checks and first‑article inspections where concise, repeatable thickness data are needed.

Choose the Metav IndustryLine digital thickness gauge for dependable, repeatable thickness measurements — contact Metav Werkzeuge in Emmerich for stock information or tailored advice

Technical data

• SKU: M240.131
• GTIN: 4061905043505
• ECLASS: 21170535
• Category: Dial gauges / Thickness gauges
• Manufacturer: Metav IndustryLine

Facts

• Measuring range: 0–25 mm
• Resolution: 0.01 mm / 0.0005 in
• Accuracy: ±0.04 mm
• Measuring face diameter: 14.5 mm
• Reach / overhang: 25 mm
• Weight: 0.27 kg
• Digital display: yes (on/off, mm/inch, zero)

Special features

• Frame: cast iron, painted
• Contact tip: stainless steel
• Spring‑closing mechanism for consistent measuring force
• Supplied in a protective case for transport
• Category placement: Messuhren (dial gauges)

FAQ

What is the measuring range and resolution of the gauge?
The digital thickness gauge offers a measuring range of 0–25 mm with a display resolution of 0.01 mm; inch mode displays to 0.0005 in for cross‑unit checks.

Is the measuring face suitable for delicate materials?
The Ø 14.5 mm stainless steel measuring face on the Metav IndustryLine digital thickness gauge provides a broad contact area that reduces local indentation on softer materials.

Does the instrument maintain consistent measuring force?
Yes, the spring‑closing mechanism ensures repeatable contact pressure so successive readings remain comparable in workshop and inspection environments.

What functions are available on the display?
The digital readout features on/off control, a mm/inch toggle and a zero function to support comparative and reference measurements.

Is a transport or storage solution included?
The instrument is supplied in a protective case to facilitate safe transport and storage between jobs.
