25mm Digital Thickness Gauge Spring-Closing Anvil Ø14.5mm Cast Iron Frame, Stainless Steel Probe, mm/inch Display, Case - Metav IndustryLine

Compact, precise and engineered for repetitive thickness checks: the combination of a 25 mm measuring range, 0.01 mm display resolution and a spring‑loaded anvil delivers reliable, repeatable results for small parts inspection. The robust cast iron frame with a stainless contact ensures physical stability and long service life. Order directly via Metav Werkzeuge or consult their technical advisors for application guidance.

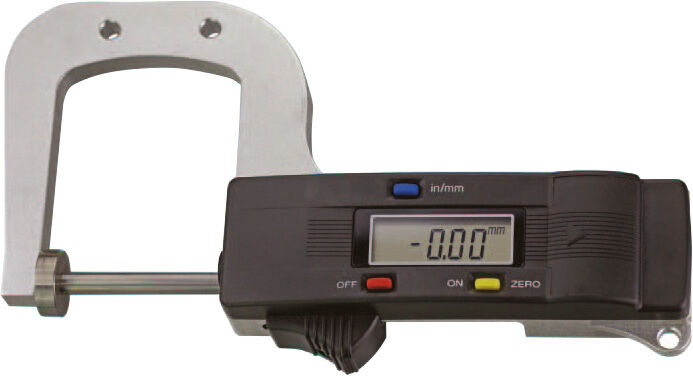

Digital thickness gauge M240.132 — 25 mm range, spring‑loaded anvil (Metav IndustryLine)

The M240.132 is a compact digital thickness gauge designed for fast, repeatable thickness and small-part checks in workshops and quality departments.

• 25 mm measuring range for compact parts
• 0.01 mm digital resolution, mm/inch display
• Spring‑loaded closing for repeatable contact
• Cast iron frame with stainless steel anvil

Consistent measurement performance for routine inspection

The instrument combines a 0–25 mm measuring range with a 0.01 mm resolution, offering clear numeric readouts on a digital display (mm/inch and zero functions). The mechanical design prioritises stability: a cast iron frame provides mass damping, while the stainless contact anvil resists wear. The overall accuracy of ±0.04 mm is suitable for standard workshop tolerances and repeated production checks, enabling quicker decision‑making and fewer reworks.

Design details that reduce operator variance

A spring‑loaded closing mechanism ensures a controlled contact force between the probe and the workpiece, which reduces variation from hand pressure and improves repeatability. The top anvil has a diameter of 14.5 mm, giving a defined contact area for small surfaces, while a throat depth of 50 mm permits access to modestly recessed features. The display includes ON/OFF, mm/inch selection and a zero button for convenient partial‑length measurements and quick unit switching.

Compact format, rugged construction and workshop convenience

Built with a stainless measuring probe and a painted cast iron frame, the device resists everyday workshop wear and delivers a predictable tactile feel during operation. Weighing approximately 0.29 kg and designed for handheld use, the instrument is a suitable choice when space is limited but reliable thickness checks are required. The compact geometry and straightforward controls support efficient inspection routines in metal and fabrication shops.

Contact Metav Werkzeuge for tailored advice on integrating the M240.132 into inspection routines — call +49 2822 7131930 or email info@metav-werkzeuge.com

Technical data

• Article number: M240.132
• GTIN: 4054469112893
• Category: Messuhren

Facts

• Measuring range: 0–25 mm
• Resolution/display: 0.01 mm (0.0005 in)
• Accuracy: ±0.04 mm
• Anvil diameter: 14.5 mm
• Throat depth: 50 mm
• Weight: 0.29 kg

Special features

• Spring‑loaded closing
• Cast iron frame, painted
• Measuring probe stainless steel
• Digital display with ON/OFF, mm/inch and zero
• SKU: M240.132

FAQ

What measuring range and resolution does the device offer?
The M240.132 is a digital thickness gauge with a measuring range of 0–25 mm and a display resolution of 0.01 mm (0.0005 in), suitable for fine workshop measurements.

How repeatable are the measurements with this instrument?
Repeatability is supported by the spring‑loaded closing and the rigid cast iron frame; the instrument has a stated accuracy of ±0.04 mm, which helps maintain consistent results across repeated checks.

Which materials are compatible with the contact anvil?
The measuring probe is made from stainless steel and the top anvil is 14.5 mm in diameter, making the device suitable for common workshop materials and small components where a defined contact area is required.

How are units and zeroing handled on the display?
The digital display provides ON/OFF control, a mm/inch selection and a zero button for easy unit changes and relative measurements with the M240.132.

What identifiers should be used for ordering or documentation?
Use SKU M240.132 and GTIN 4054469112893; the product is part of the Metav IndustryLine offering for compact digital thickness gauges.

Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
