500 mm Digital Caliper With 150 mm Jaws, Ø5 mm Holder, Preset Function, Delivered In Case - Metav IndustryLine

Take advantage of the combination of a 500 mm measuring range, 0.01 mm resolution and a robust 150 mm jaw to measure medium‑sized components reliably; order the Digital‑Uni‑MS directly via Metav Werkzeuge or ask our consultants if needed.

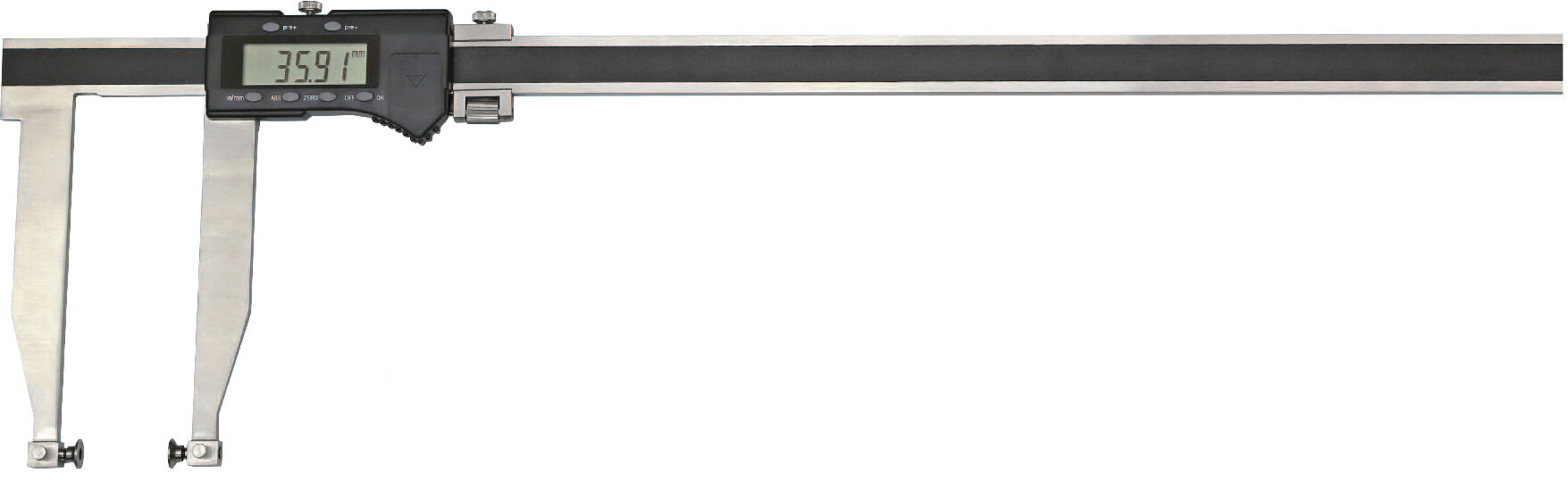

Digital‑Uni‑MS 500 mm × 150 mm digital caliper – 5 mm mounting bore (Metav IndustryLine)

The Digital‑Uni‑MS is a versatile digital caliper designed for medium‑range workshop and production measurements, combining an extended 500 mm measuring range with a compact jaw design and an integrated mounting bore for gauge inserts

• 500 mm measuring range for mid-size components
• 0.01 mm resolution digital readout
• 150 mm jaws with Ø 5 mm mounting bore
• RB 2 data output and preset functions

Accurate mid‑range measurement for production use

The instrument delivers a 500 mm measuring range with a standard 0.01 mm display step, making it suitable for many tasks in machine building and toolmaking where reach and stability must be balanced. Classified for medium‑range work, this caliper offers the reach to handle brackets, housings and fixtures while keeping handling and repeatability within practical workshop limits. The combination of extended range and fine resolution supports reliable decisions in incoming inspection and quality control.

Fast, traceable digital readings to speed workflows

A clear digital interface provides mm/inch switching and ABS/INC operation, while dedicated NULL/PRESET functions allow quick reference setting for comparative measurements. The unit includes RB 2 data output to transfer readings to recording systems or data loggers, reducing transcription errors and accelerating statistical process control. With a concise control layout and smooth slider action, the device reduces cycle time for routine checks and supports traceable measurement protocols.

Practical mechanics and functional mounting options

The caliper is fitted with 150 mm jaws and a Ø 5 mm mounting bore intended for gauge inserts, enabling flexible fixture or adapter use where repeatable positioning is needed. The construction is conceived for workshop durability while retaining the sensitivity required for precision work; the instrument weighs approximately 3.4 kg, giving it a reassuring feel and stability during longer measurements. Supplied to works standard, the tool is prepared for integration into daily inspection routines without unnecessary complexity.

Where this caliper fits into the workflow

This digital caliper suits quality inspectors, maintenance workshops and small series production where medium‑sized components are common. Its blend of reach, fine display resolution and data connectivity supports modern inspection routines and reduces manual data handling. Backed by the Metav IndustryLine portfolio, the device benefits from a dependable supply chain and practical documentation for implementation into existing measurement procedures.

Contact Metav Werkzeuge for tailored advice on integrating the Metav IndustryLine Digital‑Uni‑MS into measurement processes or to request ordering and logistics information

Technical data

• SKU: M240.210.O
• GTIN: 4054469151984
• Measuring range: 0–500 mm
• Resolution (display): 0.01 mm
• Weight: 3.4 kg
• Jaw length: 150 mm
• Data output: RB 2

Facts

• Measuring range max: 500 mm
• Measuring range min: 0 mm
• Reading step: 0.01 mm
• Tariff number: 90173000

Special features

• Digital display with ON/OFF, mm/inch, ABS/INC and NULL/PRESET buttons
• Mounting bore Ø 5 mm for gauge inserts
• Delivered to works standard (without preset inserts)

FAQ

What measuring range and resolution does the caliper offer?
The Digital‑Uni‑MS provides a measuring range of 0–500 mm with a display resolution of 0.01 mm.

Can the instrument switch between metric and imperial units?
Yes, the caliper supports mm/inch switching via its digital display and includes ABS/INC functionality for flexible measurement modes.

What is the RB 2 output used for?
RB 2 is the data output interface on the Digital‑Uni‑MS for transferring measured values to data loggers or inspection software, enabling digital record keeping.

What does "without inserts preset" mean for delivery?
The label indicates the caliper is supplied to works standard and does not include preinstalled measuring inserts; adapter or insert fitting is available separately if required.

Is the caliper suitable for workshop and production environments?
Yes, the combination of a 500 mm range, robust jaw geometry and digital connectivity makes the instrument well suited to routine workshop inspections and small‑batch production control.

Metav IndustryLine: Manufacturer / Responsible: Metav Werkzeuge GmbH; Parkring 45; 46446 Emmerich; Germany; +49 2822 7131930; info@metav-werkzeuge.com
